Overview

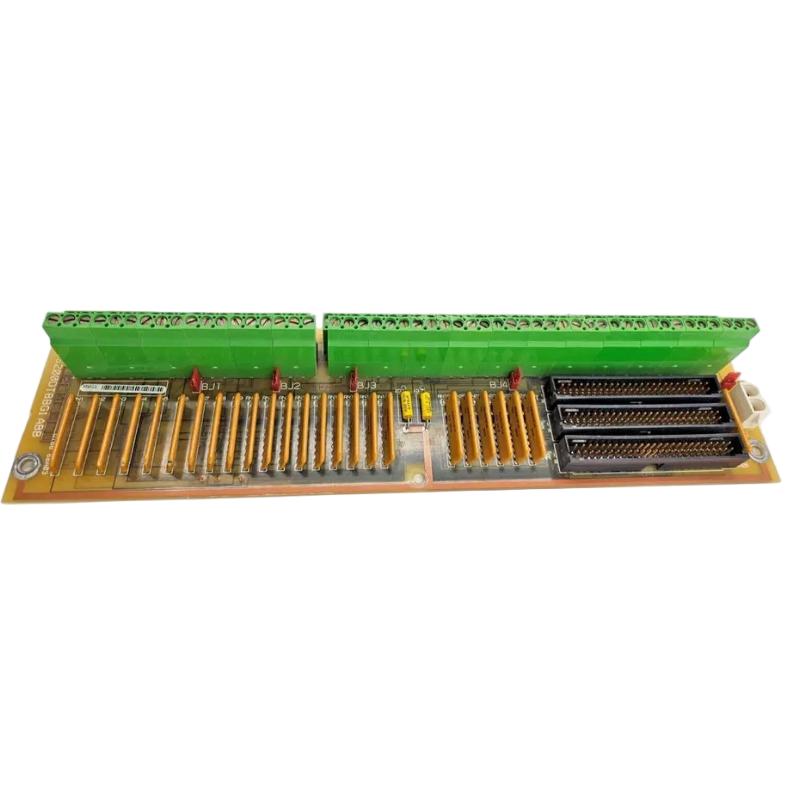

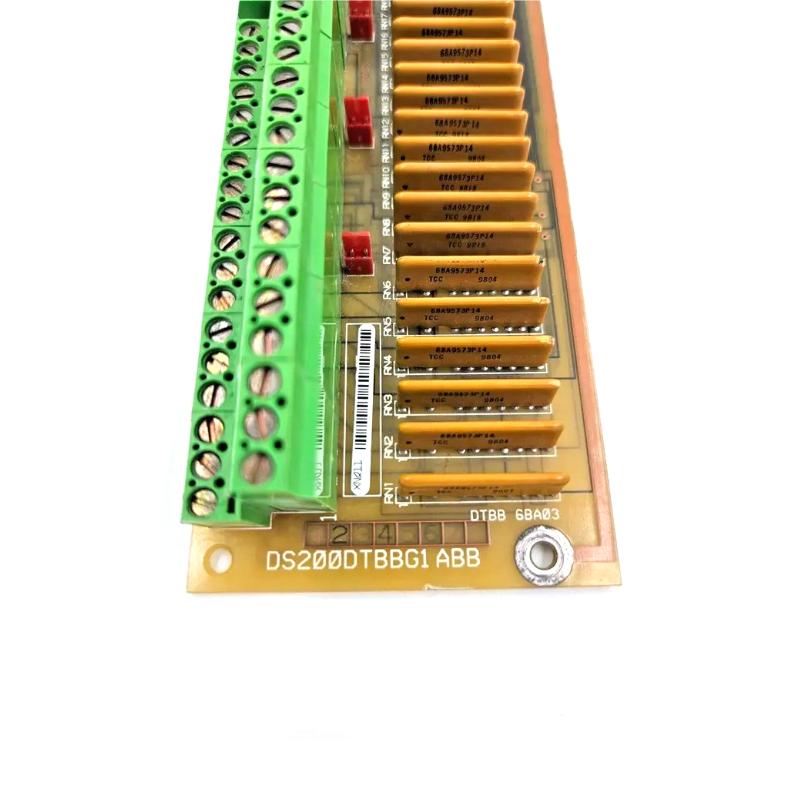

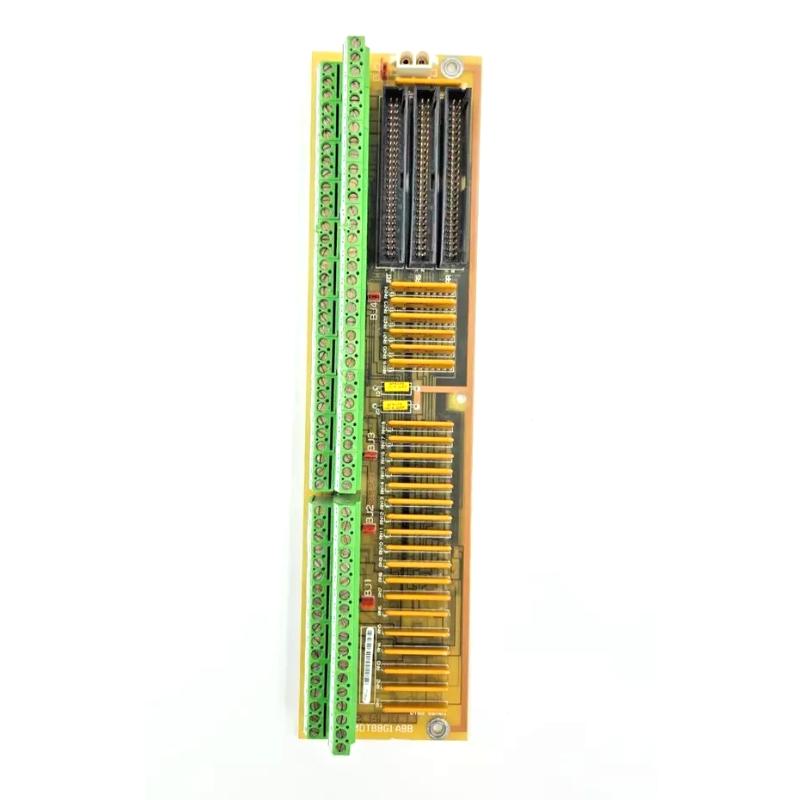

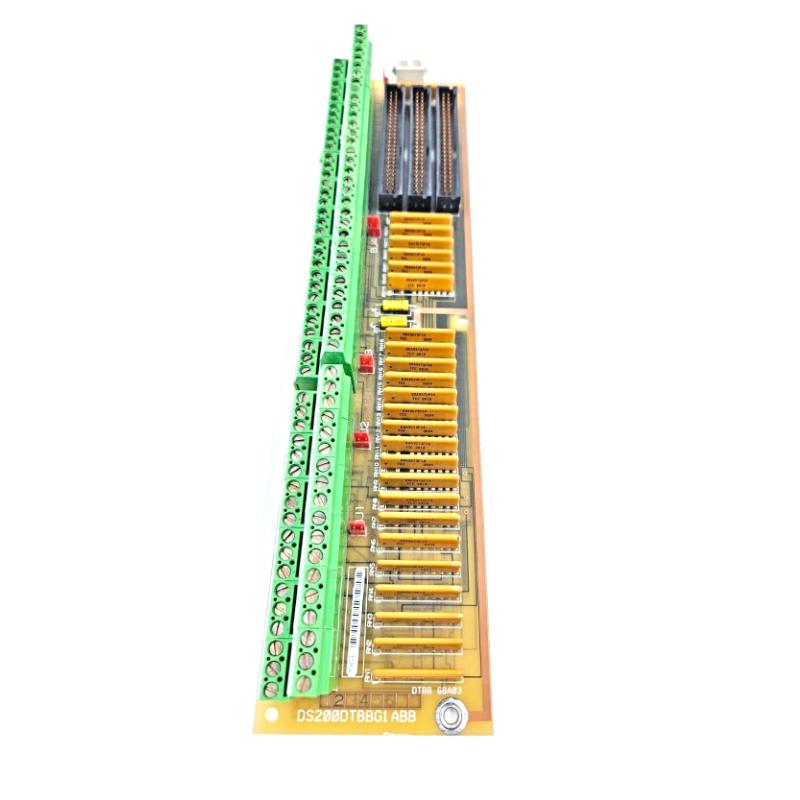

The GE DS200DTBBG1ABB is a terminal digital connector board designed for GE Fanuc or PACSystems automation systems. It provides a reliable interface for digital I/O signals, enabling secure connections between field devices and the control system. The board ensures accurate signal transmission and robust performance in industrial environments.
General Information
Part Number: DS200DTBBG1ABB
Manufacturer: GE (General Electric)
Brand / Country of Origin: GE / USA
Series: PACSystems / I/O Accessories
Type: Terminal Digital Connector Board
Mounting: Rack-mounted or panel installation
Function: Facilitates digital signal connections between I/O modules and external devices
Power Specifications
Supply Voltage: 5 V / 24 V DC (dependent on system configuration)
Power Consumption: ≤ 10 W
Protection: Overvoltage and short-circuit protection
Indicators: Status LEDs for power and signal diagnostics
Communication & Interface
Interface Type: Digital I/O terminal interface
System Connection: Connects to PACSystems or Fanuc I/O modules via backplane or bus connectors
Diagnostics: LED indicators for operational and fault monitoring
Compatibility: Compatible with GE PACSystems I/O modules
Reset Features: Supports system and module-level resets
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −20 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Cooling: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 200 × 50 × 120 mm
Weight: 0.15 kg
