Overview

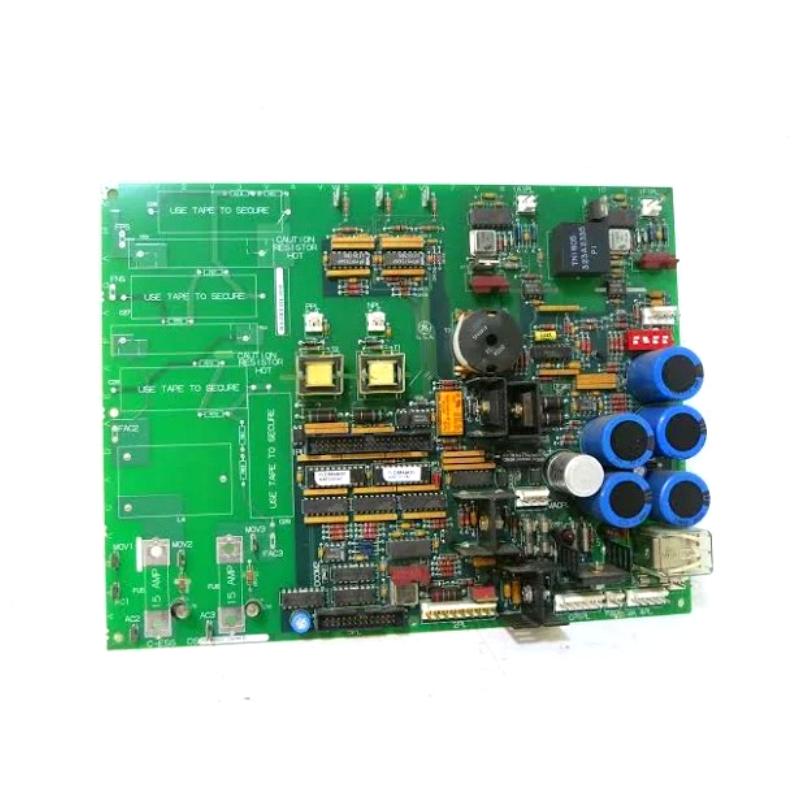

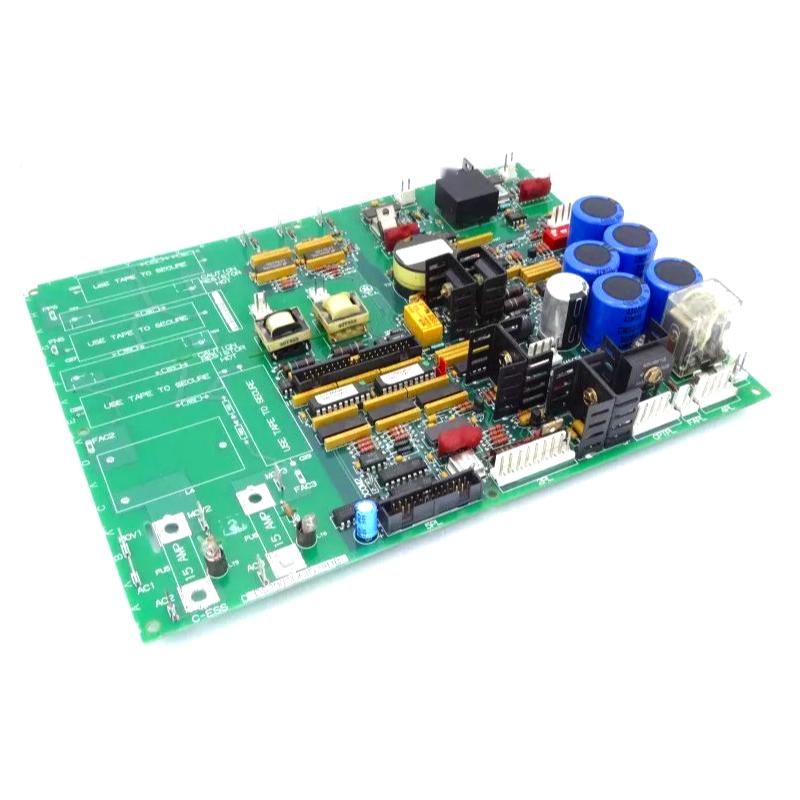

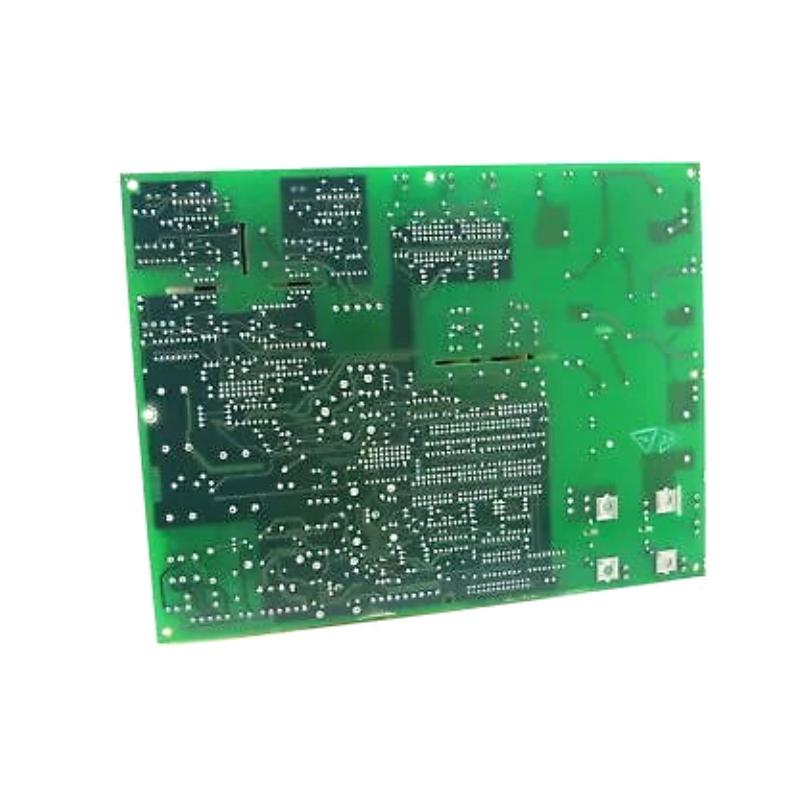

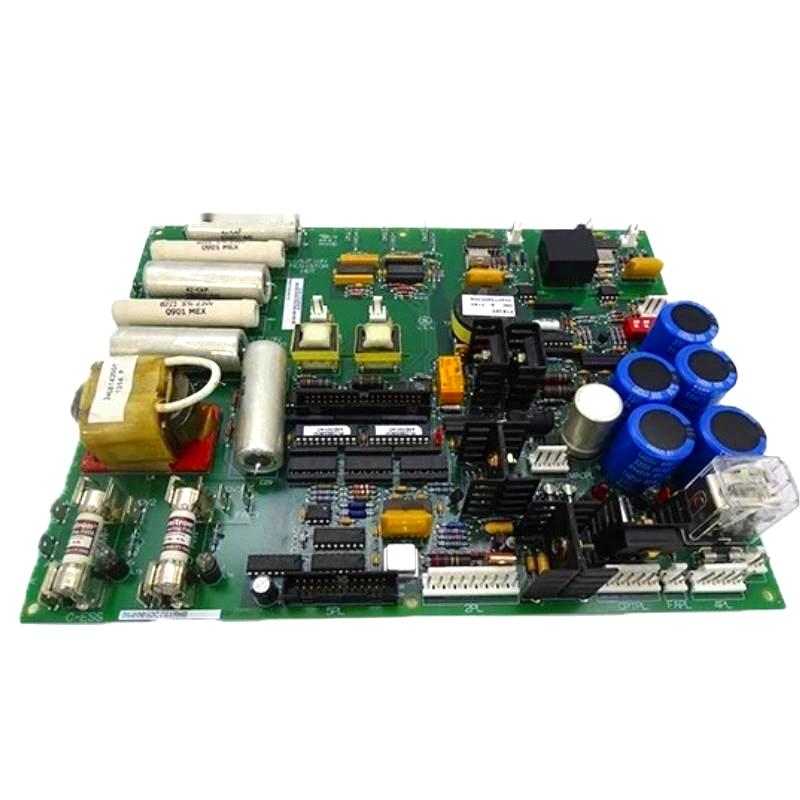

The GE DS200SDCIG2AFB is a DC power supply board designed for GE Fanuc or PACSystems automation controllers. It delivers stable and regulated DC power to I/O modules and system components, ensuring reliable operation and consistent performance in industrial control applications.
General Information
Part Number: DS200SDCIG2AFB
Manufacturer: GE (General Electric)
Brand / Country of Origin: GE / USA
Series: PACSystems / Power Supply Modules
Type: DC Power Supply Board
Mounting: Rack-mounted within control cabinet
Function: Provides regulated DC power to system modules and I/O units
Power Specifications
Supply Voltage: 24 V DC nominal
Output Voltage: 5 V DC / 24 V DC regulated
Output Current: Up to 5 A
Power Consumption: ≤ 50 W typical
Protection: Overvoltage, short-circuit, and overload protection
Indicators: LEDs for power and fault status
Communication & Interface
System Bus Connection: Supplies power to connected I/O modules via backplane
Interface Type: Standard DC power interface for PACSystems modules
Diagnostics: LED indicators for operational status and faults
Compatibility: Compatible with GE PACSystems and Fanuc I/O systems
Reset Features: Supports module and system-level resets
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −20 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Cooling: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 220 × 50 × 120 mm (approximate)
Weight: Approx. 0.8 kg
