Overview

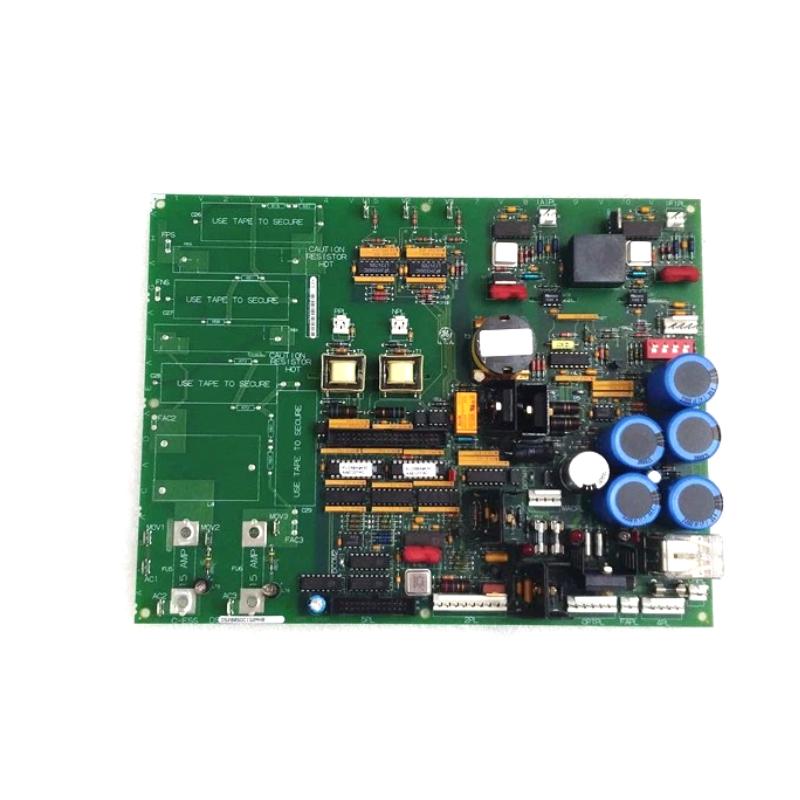

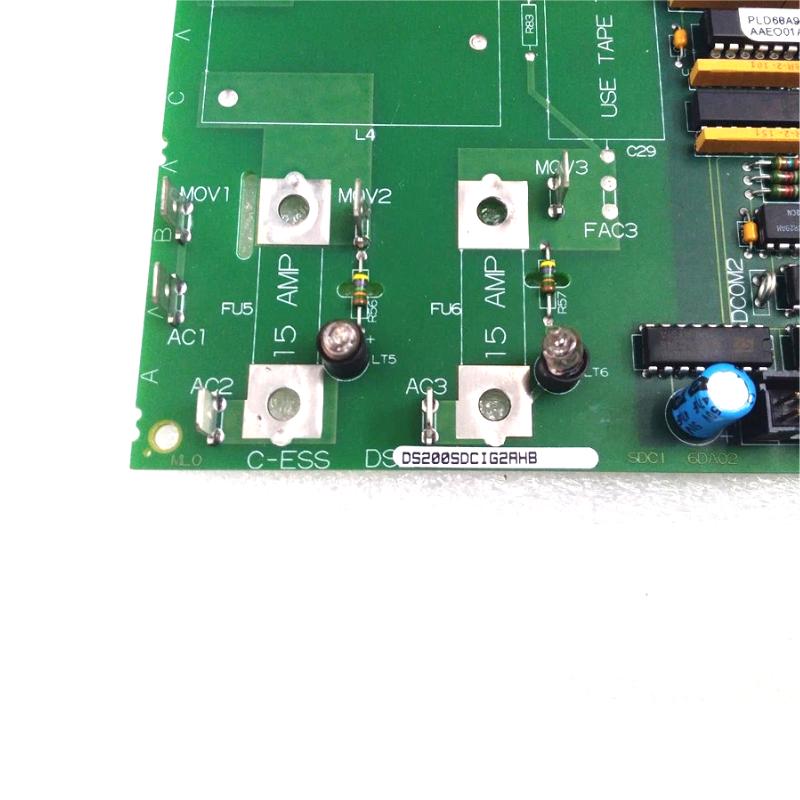

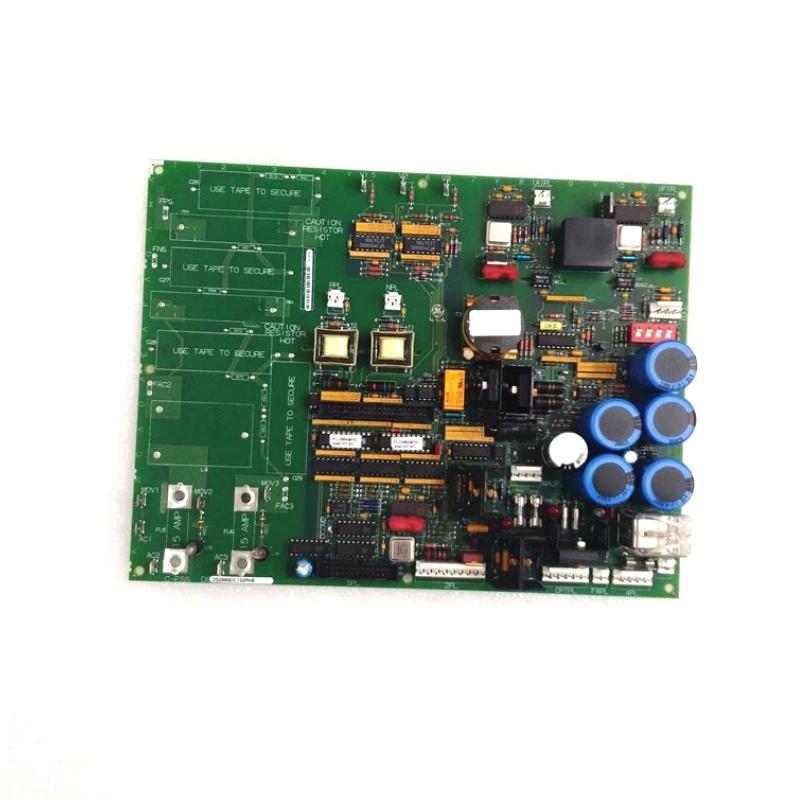

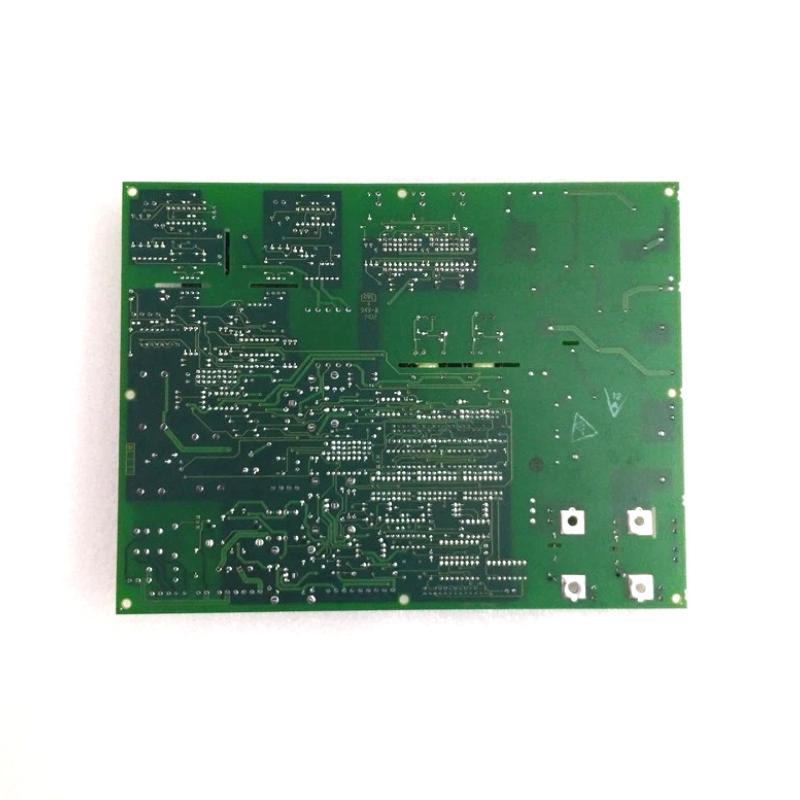

The GE DS200SDCIG2AHB is an I/O communication board designed for GE Fanuc and PACSystems automation controllers. It enables reliable communication between I/O modules and the control system, ensuring accurate signal transmission and smooth system operation in industrial environments.
General Information
Part Number: DS200SDCIG2AHB
Manufacturer: GE (General Electric)
Brand / Country of Origin: GE / USA
Series: PACSystems / I/O Modules
Type: I/O Communication Board
Mounting: Rack-mounted within control cabinet
Function: Facilitates communication between I/O modules and the controller for digital and analog signals
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: ≤ 10 W
Protection: Overvoltage and short-circuit protection
Indicators: LEDs for power, communication, and fault status
Communication & Interface
Interface Type: I/O communication bus
System Connection: Connects to PACSystems or Fanuc I/O modules via backplane
Diagnostics: LED indicators for operational and fault monitoring
Compatibility: Compatible with GE PACSystems and Fanuc automation controllers
Reset Features: Supports module and system-level resets
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −20 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Cooling: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 220 × 50 × 120 mm (approximate)
Weight: Approx. 0.75 kg
