Overview

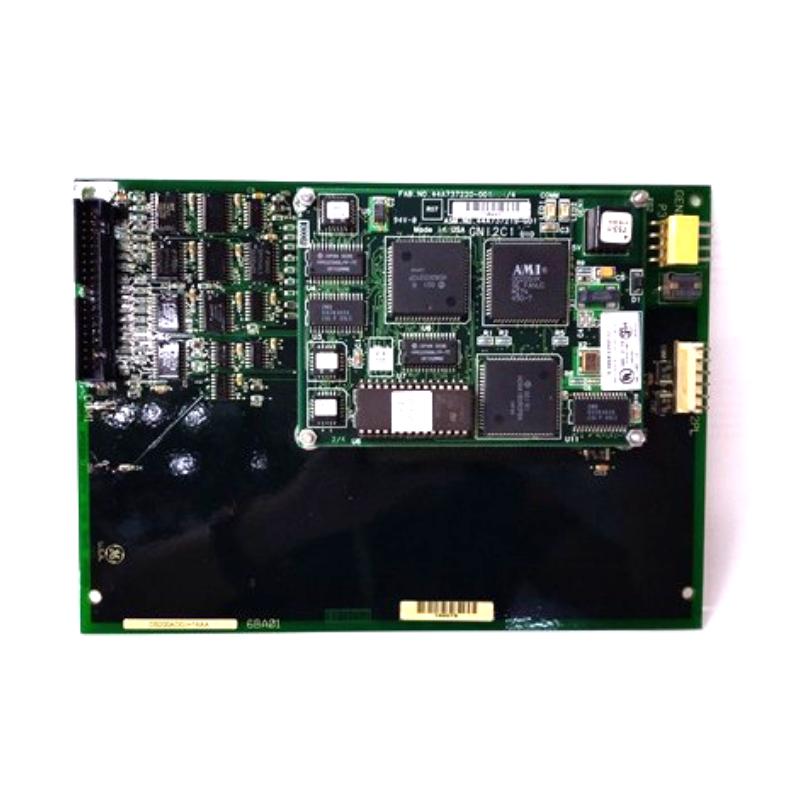

The GE DS200BDAAG1AAA is a snubber card designed for GE Fanuc and PACSystems automation systems. It protects power semiconductors and I/O modules from voltage spikes and electrical noise, enhancing system reliability and extending the lifespan of connected devices in industrial applications.
General Information
Part Number: DS200BDAAG1AAA
Manufacturer: GE (General Electric)
Brand / Country of Origin: GE / USA
Series: PACSystems / I/O Accessories
Type: Snubber Card
Mounting: Rack-mounted within control cabinet
Function: Absorbs voltage spikes and reduces electrical noise across I/O circuits
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Minimal, < 2 W
Protection: Provides overvoltage and transient suppression
Indicators: No active LEDs; relies on system diagnostics
Communication & Interface
Interface Type: Connects directly to I/O terminals or modules
System Connection: Integrates with PACSystems or Fanuc I/O backplane
Diagnostics: Status monitored via main controller
Compatibility: Compatible with GE PACSystems and Fanuc I/O modules
Reset Features: Not required; passive protective function
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −20 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Cooling: Passive, natural convection
Dimensions & Weight
Dimensions (L × W × H): 120 × 30 × 80 mm (approximate)
Weight: Approx. 0.1 kg
