Overview

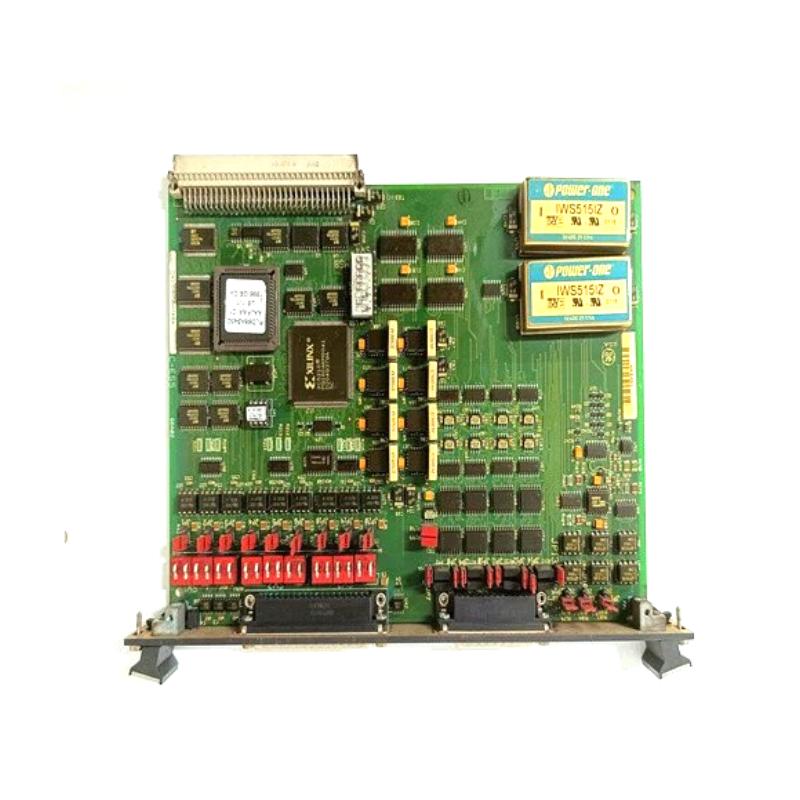

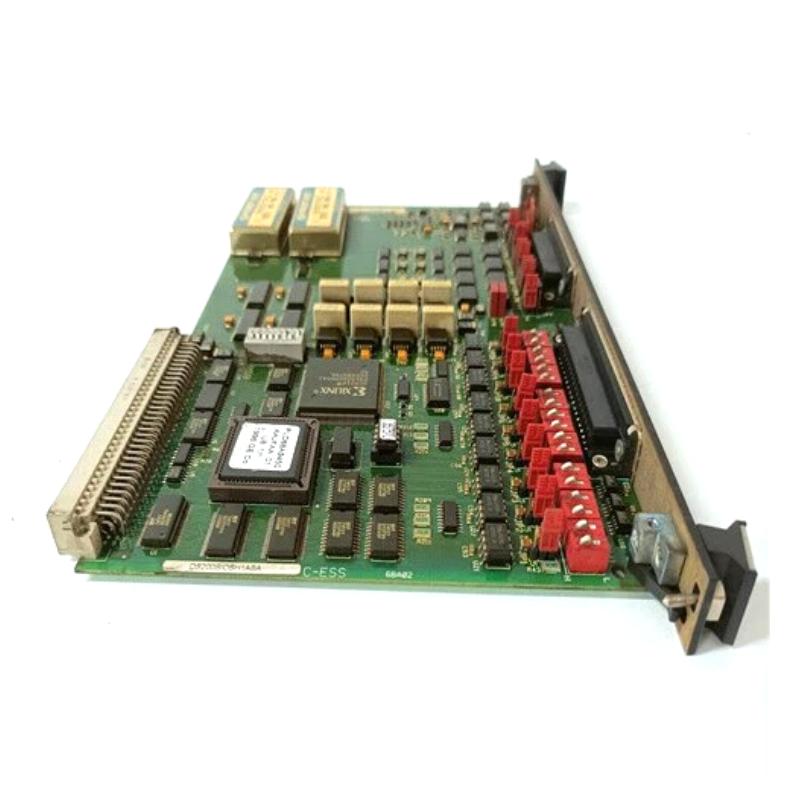

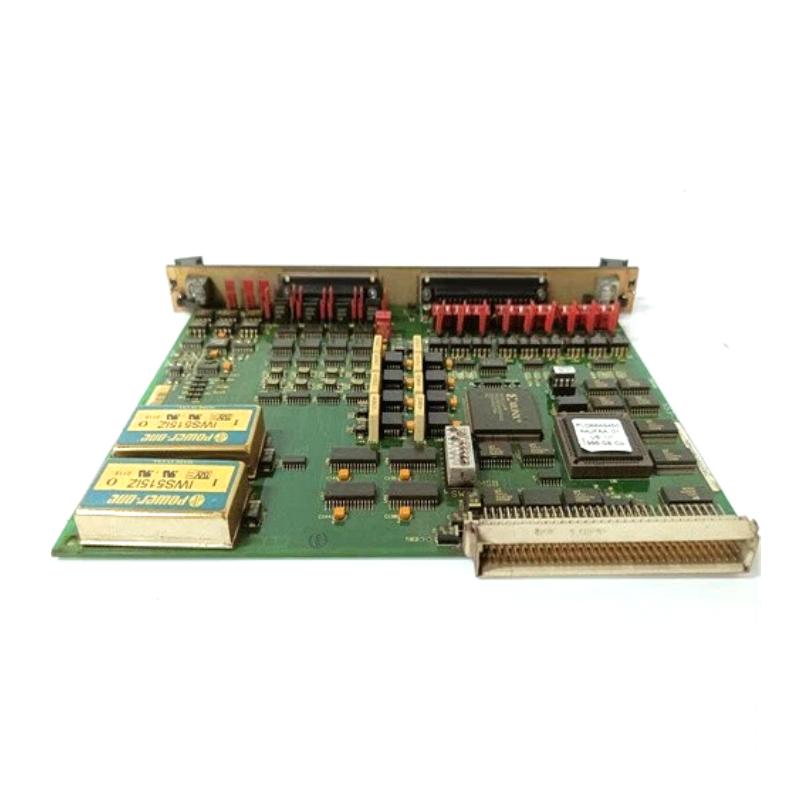

The GE DS200SIOBH1ABA is a VME standard I/O card designed for GE Fanuc and PACSystems automation controllers. It provides reliable digital and analog input/output interfaces, enabling seamless communication between field devices and the control system. This card ensures accurate signal processing and stable operation in industrial environments.
General Information
Part Number: DS200SIOBH1ABA
Manufacturer: GE (General Electric)
Brand / Country of Origin: GE / USA
Series: PACSystems / VME I/O Modules
Type: VME Stand I/O Card
Mounting: Rack-mounted or VME chassis installation
Function: Manages digital and analog I/O signals for controllers
Power Specifications
Supply Voltage: 5 V DC / 24 V DC (dependent on system configuration)
Power Consumption: ≤ 15 W typical
Protection: Overvoltage and short-circuit protection
Indicators: LEDs for power, I/O status, and fault detection
Communication & Interface
Interface Type: VME bus interface for I/O communication
System Connection: Connects to GE PACSystems or Fanuc VME backplane
Diagnostics: LED indicators for operational status and faults
Compatibility: Compatible with VME-based PACSystems and Fanuc controllers
Reset Features: Supports software and hardware reset
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −20 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Cooling: Natural convection
Dimensions & Weight
Dimensions (L × W × H): 200 × 50 × 120 mm (approximate)
Weight: Approx. 0.7 kg
