Overview

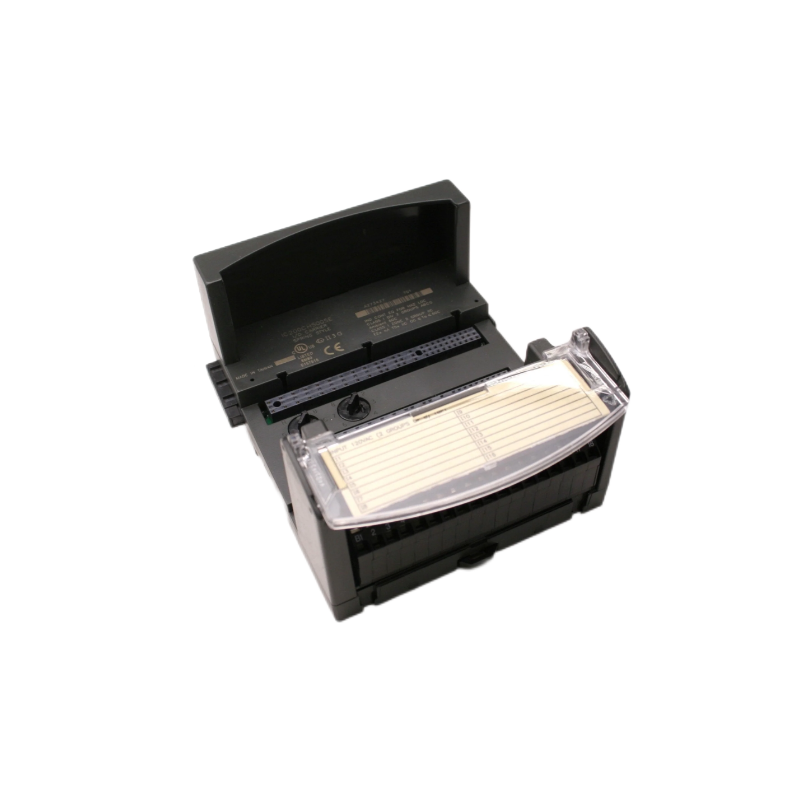

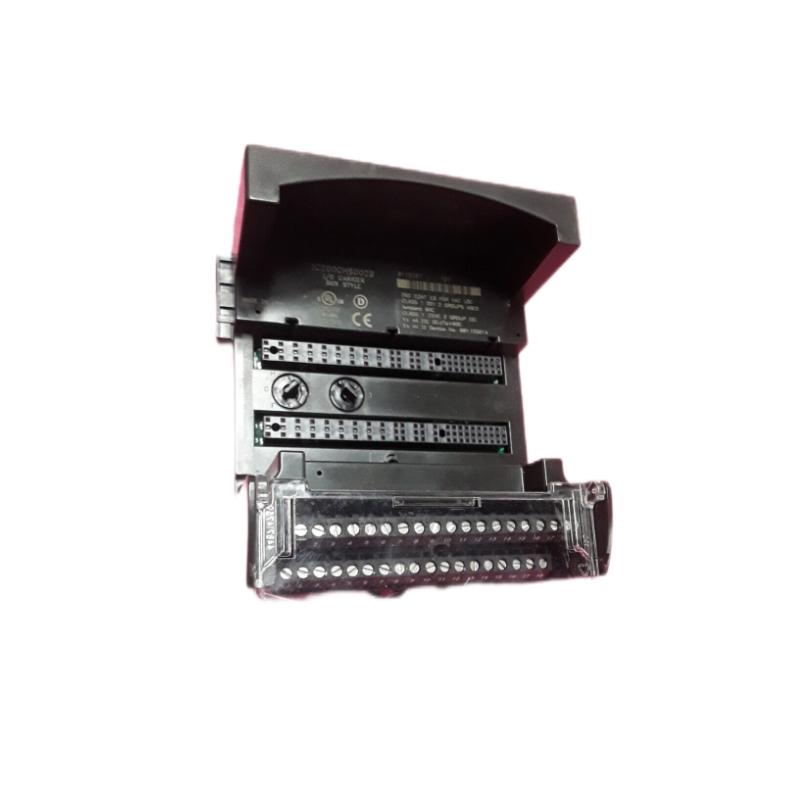

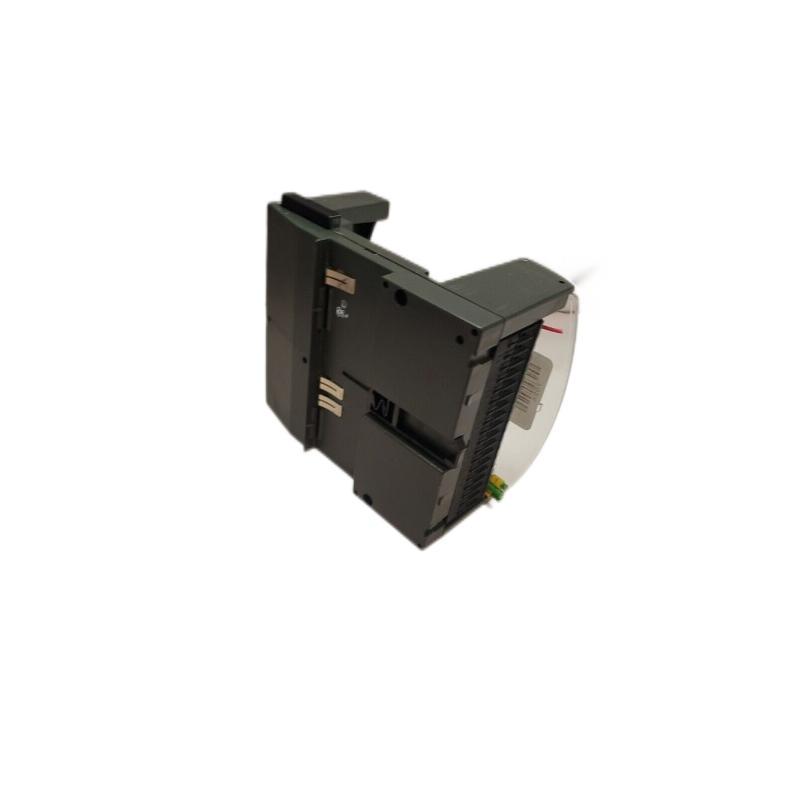

The GE IC200CHS002B is a box‑style I/O carrier module from the VersaMax family. It provides terminal wiring support, backplane communication, and mounting features for companion I/O modules in GE/Emerson automation systems.
General Information
Part Number: IC200CHS002B
Manufacturer: GE (General Electric)
Brand / Country of Origin: GE / USA
Series: VersaMax I/O Carriers
Type: I/O Carrier / Module Mounting Base
Function: Facilitates mounting, wiring, and bus interface for one VersaMax I/O module
Power Specifications
The carrier supports wiring for up to 32 I/O points plus 4 power/common connections. Each terminal is rated for up to 2 A and the power/ground segment up to 8 A.
Communication & Interface
Interface Type: Backplane interface compatible with VersaMax system bus and I/O modules
Field Wiring: 36 IEC box‑style terminals labelled A1‑A18 and B1‑B18 for field devices
Mounting: Snaps onto a 7.5 × 35 mm DIN rail for convenient installation
Termination: Transparent hinged door covers the wiring area; carrier-to-carrier connectors simplify installation
Environmental
Operating Temperature: 0 to +60 °C typical
Mounting Orientation: Horizontal only
Dimensions & Weight
Dimensions (L × W × H): 110.5 × 70 × 139.7 mm
Weight: Approx. 0.31 kg
