Overview

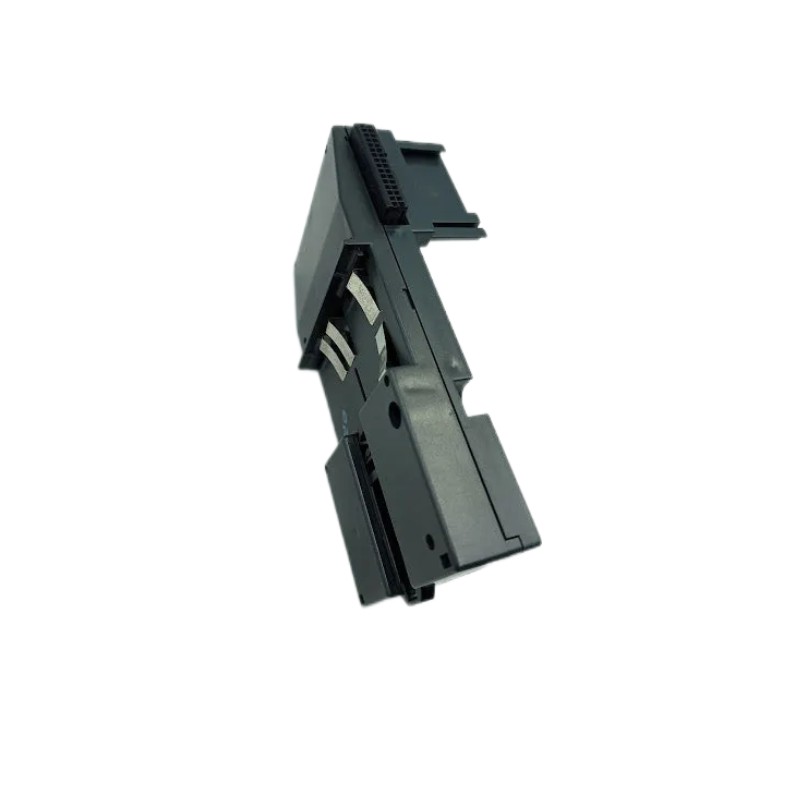

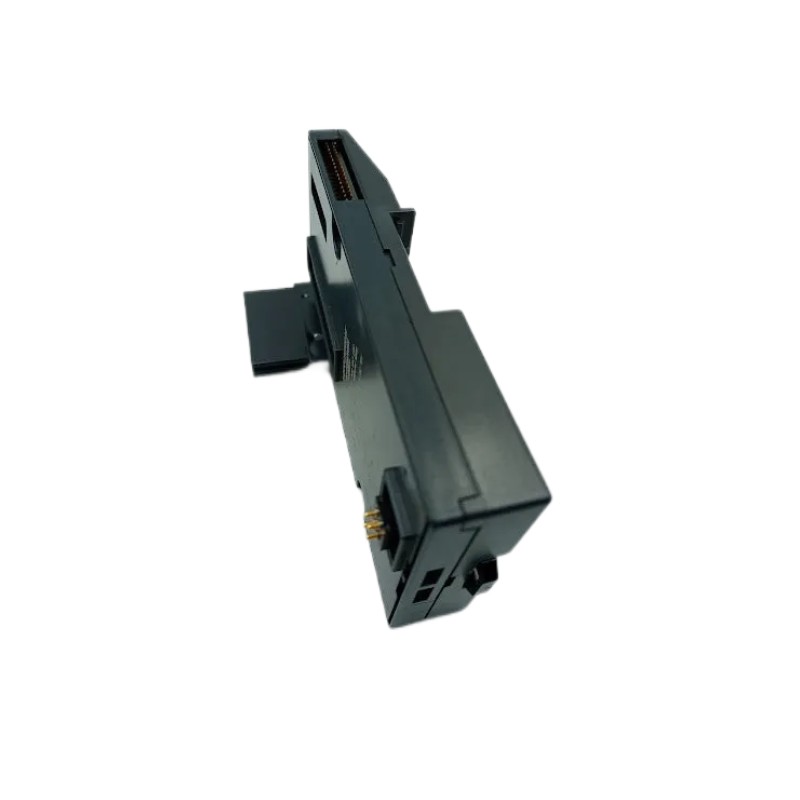

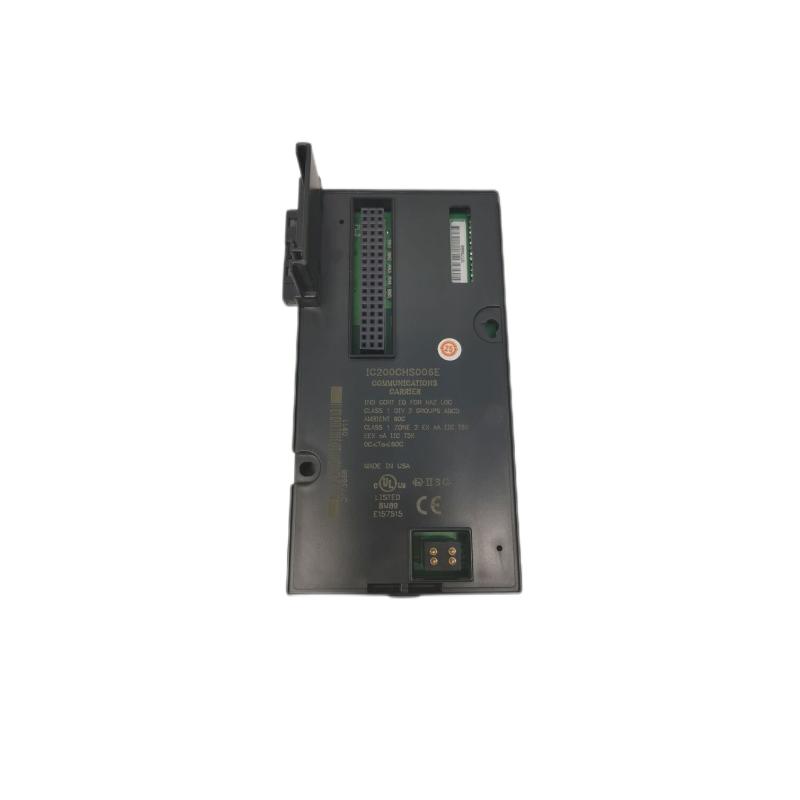

The GE IC200CHS006E is a local communications carrier module within the VersaMax I/O platform. It serves as the mounting and connectivity base for a single I/O module, providing field wiring termination and backplane interface for the system.
General Information
Part Number: IC200CHS006E
Manufacturer: GE (formerly GE Fanuc)
Brand / Country of Origin: GE / USA
Series: VersaMax I/O Carriers
Type: Local Communications Carrier
Function: Provides wiring terminals and backplane interface for a single companion I/O module
Power Specifications
This carrier does not itself require dedicated power aside from the system rack’s backplane supply. It supports field wiring terminals rated for up to 2 A per point, with the power/common segment rated up to 8 A.
Communication & Interface
Interface Type: Backplane interface compatible with VersaMax system bus and I/O modules
Field Wiring: Offers discrete terminal groups for signal wiring, supporting up to 32 I/O points plus common/power depending on the companion module
Mounting: Designed for DIN‑rail mounting, with carrier‑to‑carrier connections allowing module stacking without separate cabling
Environmental
Operating Temperature: 0 to +60 °C typical
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed within appropriate enclosure
Cooling: Passive, natural convection
Dimensions & Weight
Dimensions (L × W × H): 66.8 × 133.4 × 70 mm
Weight: Approx. 0.3 kg
