Overview

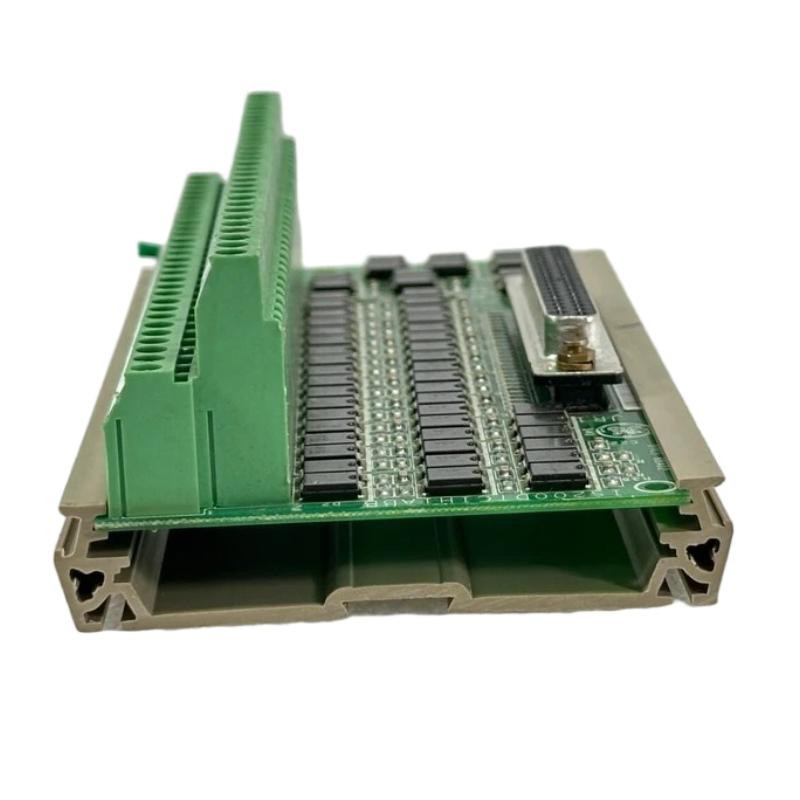

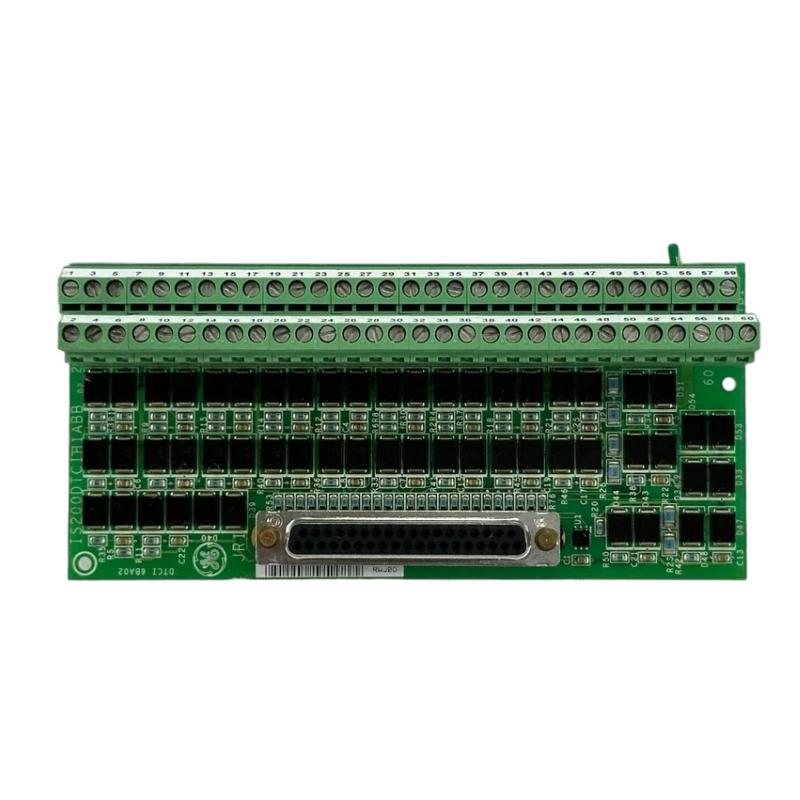

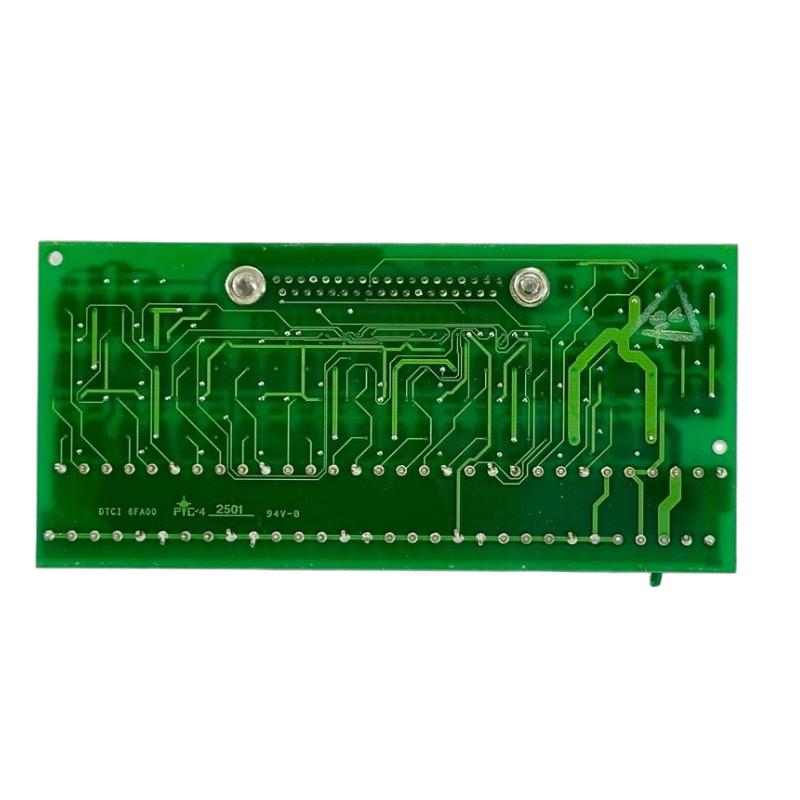

The GE IS200DTCIH1ABB is a simplex thermocouple input board tailored for industrial turbine control systems. It delivers precise temperature signal acquisition with integrated isolation for robust performance.
General Information
Part Number: IS200DTCIH1ABB
Brand / Country of Origin: GE / USA
Product Type: Thermocouple Input Board
Application: Turbine control and process monitoring systems
Power Specifications
Nominal Excitation Voltage: 24 V DC
Input Type: Thermocouple channels (e.g., types J, K, T, E)
Isolation: Highly isolated between channels and ground
Communication & Interface
Interface Type: Rack-mounted PCB connection within control system
Signal Connections: Dedicated thermocouple input terminals and fault indication LEDs
Compatibility: Integrated with GE Speedtronic and Mark VI control architectures
Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when mounted in enclosure
Dimensions & Weight
Dimensions (L × W): 86 × 162 mm
Weight: 0.907 kg
