Overview

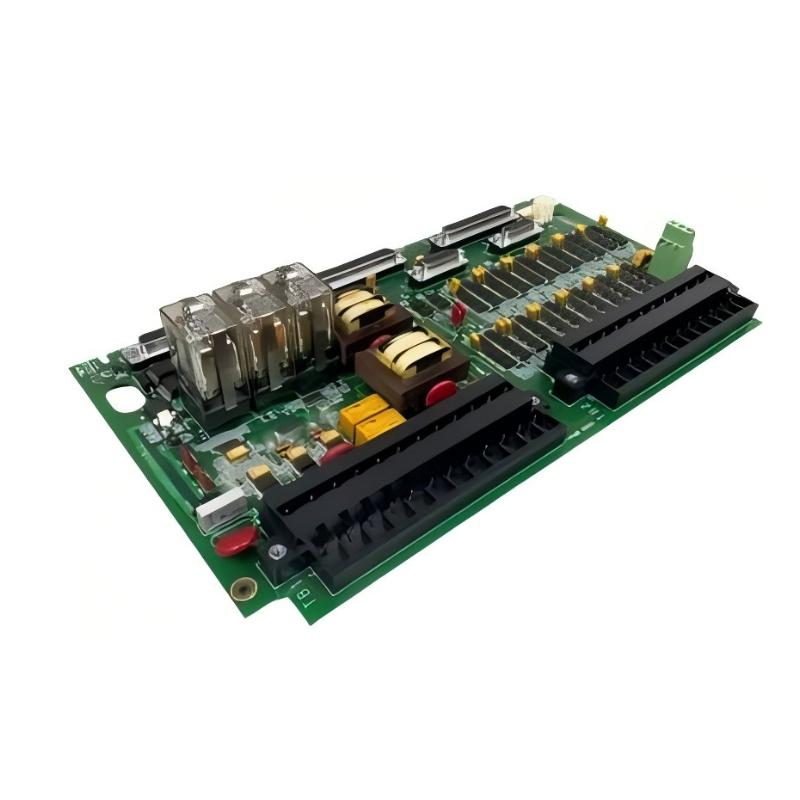

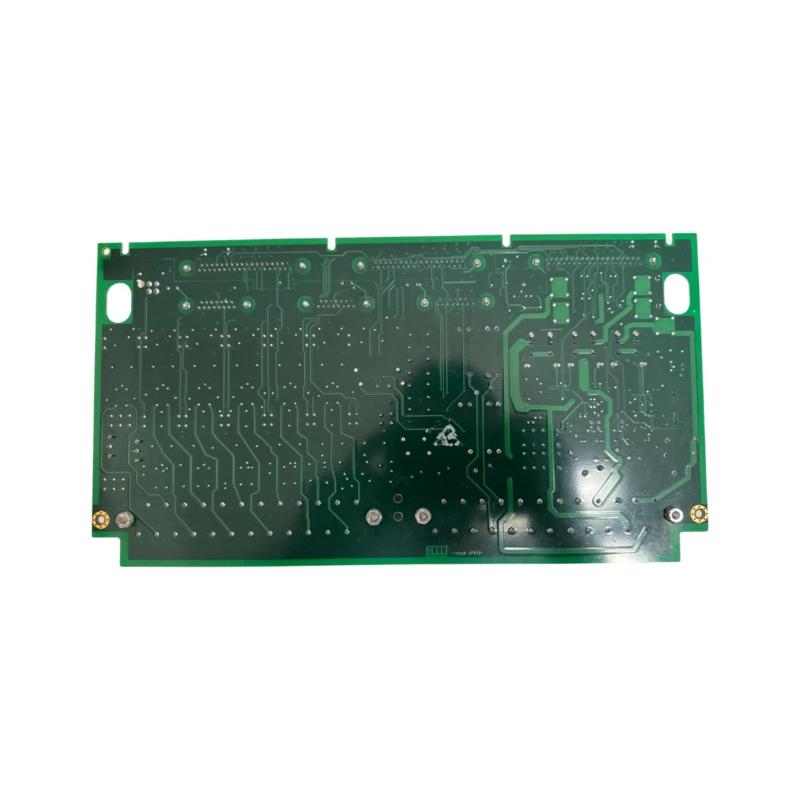

The GE IS200TBAIH1CCC is a printed circuit board (PCB) module designed for the GE Mark VI turbine control system. It functions as an interface and signal processing board, ensuring accurate data communication between field devices and the control processor. This board provides high reliability and stability for demanding turbine and process automation environments.
General Information
Brand: GE (General Electric)
Country of Origin: United States
Part Number: IS200TBAIH1CCC
Series: Mark VI Control System
Type: PCB Circuit Board
Function: Analog input interface and signal processing
Mounting: Installed in control chassis or rack
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 8 W
Input Source: From control backplane or power bus
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power and board status
Communication & Interface
Interface Type: Analog input and signal conditioning interface
Signal Type: Analog input channels (current and voltage)
Connection: Ribbon cable or backplane connector to I/O modules
Function: Converts and transmits analog signals to the controller for processing
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Industrial control cabinet
Dimensions & Weight
Dimensions: 330.2 x 101.6 mm
Weight: Approx. 0.35 kg
