Overview

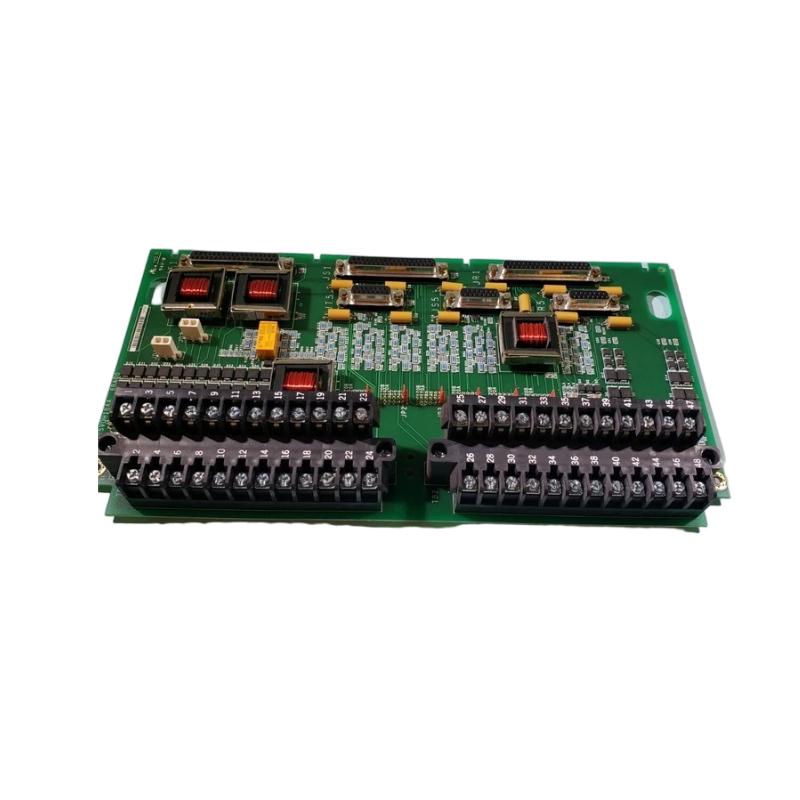

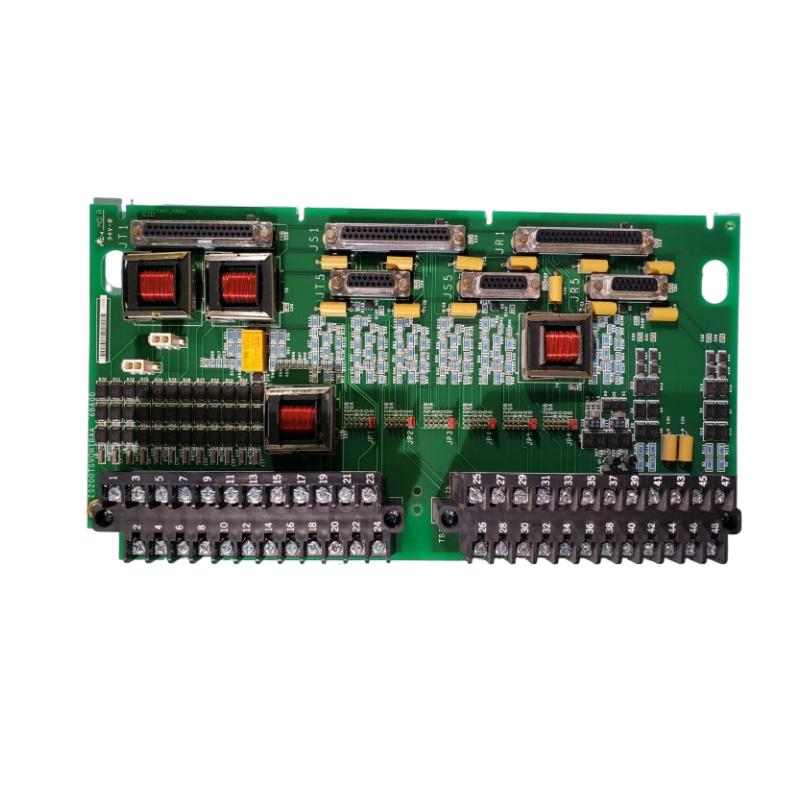

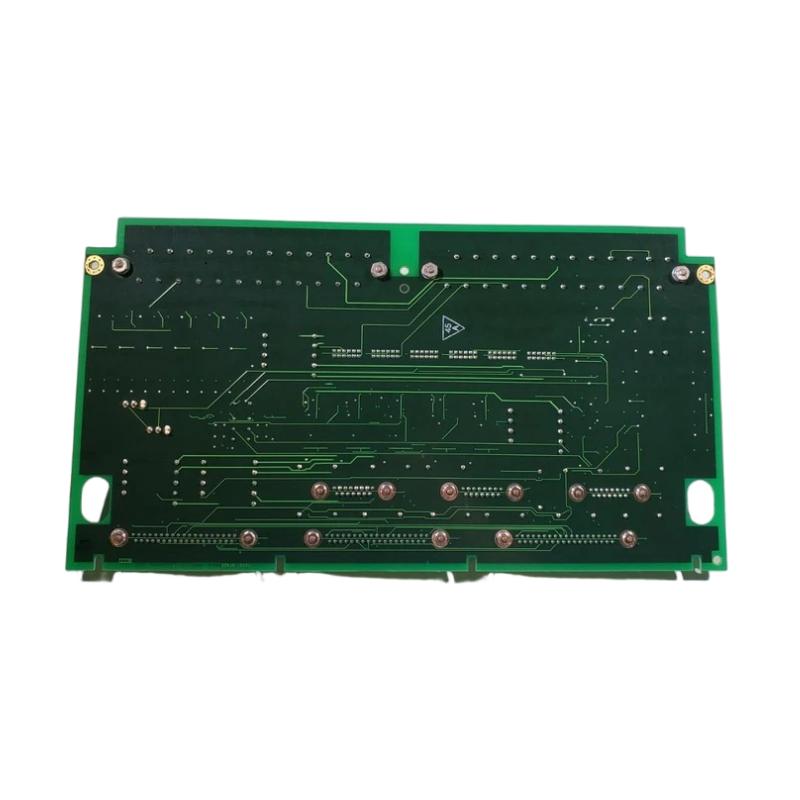

The GE IS200TSVOH1BBB is a servo terminal board designed for the GE Mark VI control system. It provides a secure interface for servo signals, ensuring accurate communication between the controller and servo devices. This board is built for reliable operation in industrial automation and turbine control applications.
General Information
Brand: GE (General Electric)
Country of Origin: United States
Part Number: IS200TSVOH1BBB
Series: Mark VI Control System
Type: Servo Terminal Board
Function: Interface and routing for servo signals
Mounting: Rack or chassis installation within the control cabinet
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: Powered from the control backplane
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power and signal status
Communication & Interface
Interface Type: Servo signal interface
Signal Type: Analog and discrete servo signals
Connection: Ribbon cable or backplane connector to control modules
Function: Provides signal routing and conditioning between controller and servo devices
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Industrial control cabinet
Dimensions & Weight
Dimensions: 330.2 × 178 mm
Weight: Approx. 0.7 kg
