Overview

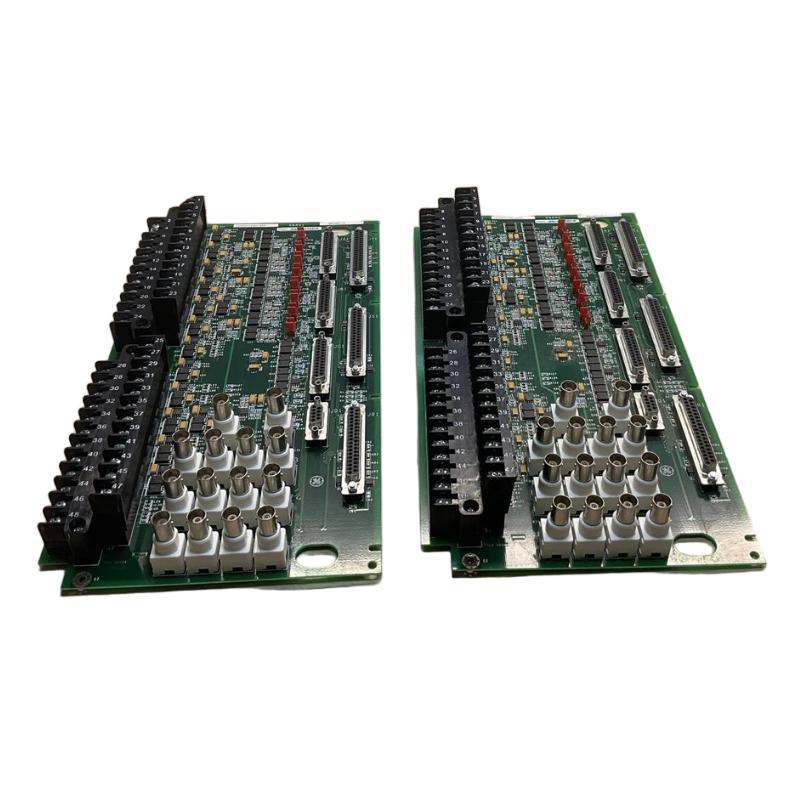

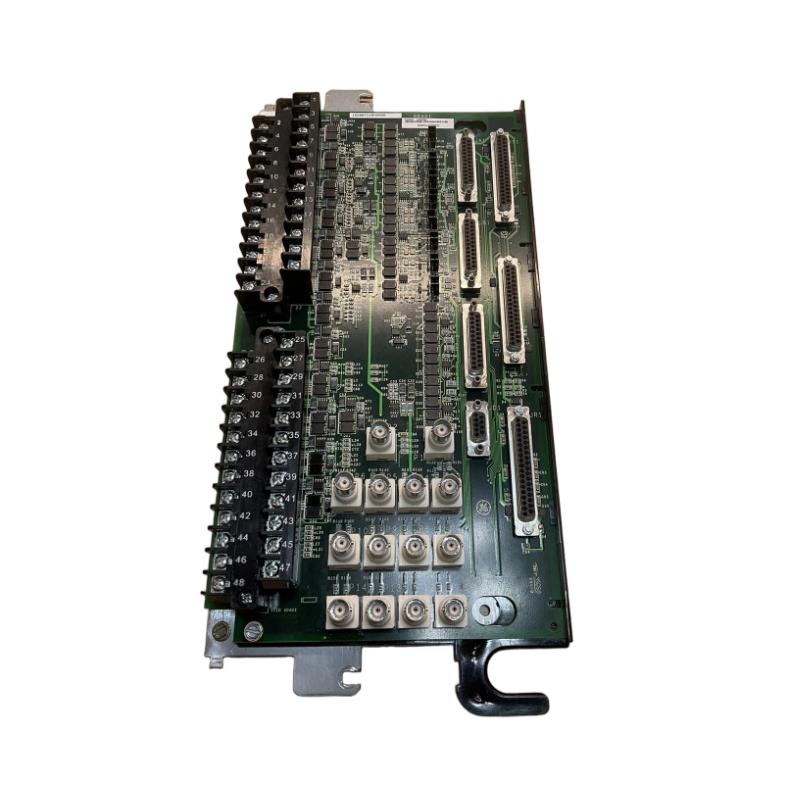

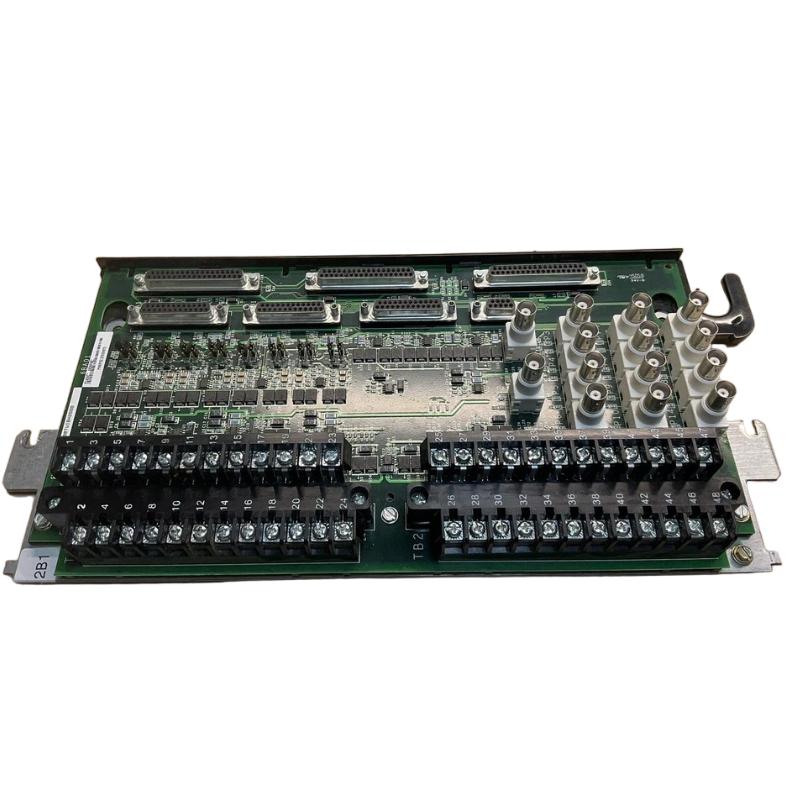

The GE IS200TVIBH2BBB is a terminal vibration board designed for the GE Mark VI control system. It interfaces with vibration sensors, providing accurate signal routing and processing for turbine and machinery monitoring applications. This board ensures reliable vibration data transmission to the controller for precise condition monitoring.
General Information
Brand: GE (General Electric)
Country of Origin: United States
Part Number: IS200TVIBH2BBB
Series: Mark VI Control System
Type: Terminal Vibration Board
Function: Vibration signal interface and routing
Mounting: Rack or chassis-mounted within the control cabinet
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: From control backplane
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power and signal status
Communication & Interface
Interface Type: Vibration signal interface
Signal Type: Analog input from vibration sensors
Connection: Ribbon cable or backplane connector to controller modules
Function: Routes and conditions vibration signals for monitoring and analysis
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Industrial control cabinet
Dimensions & Weight
Dimensions: 330 × 178 mm
Weight: Approx. 0.9 kg
