Overview

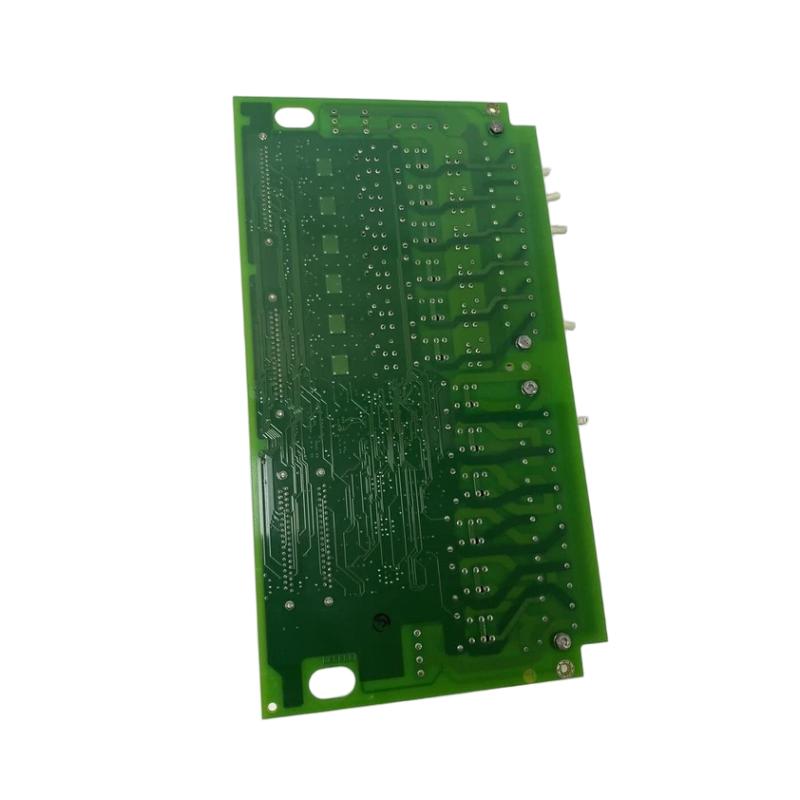

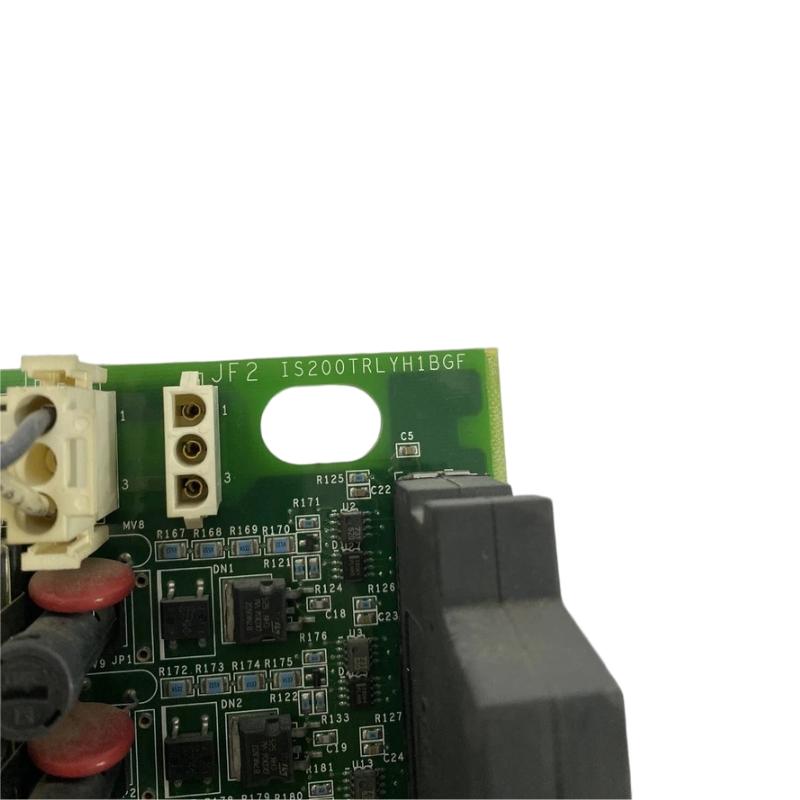

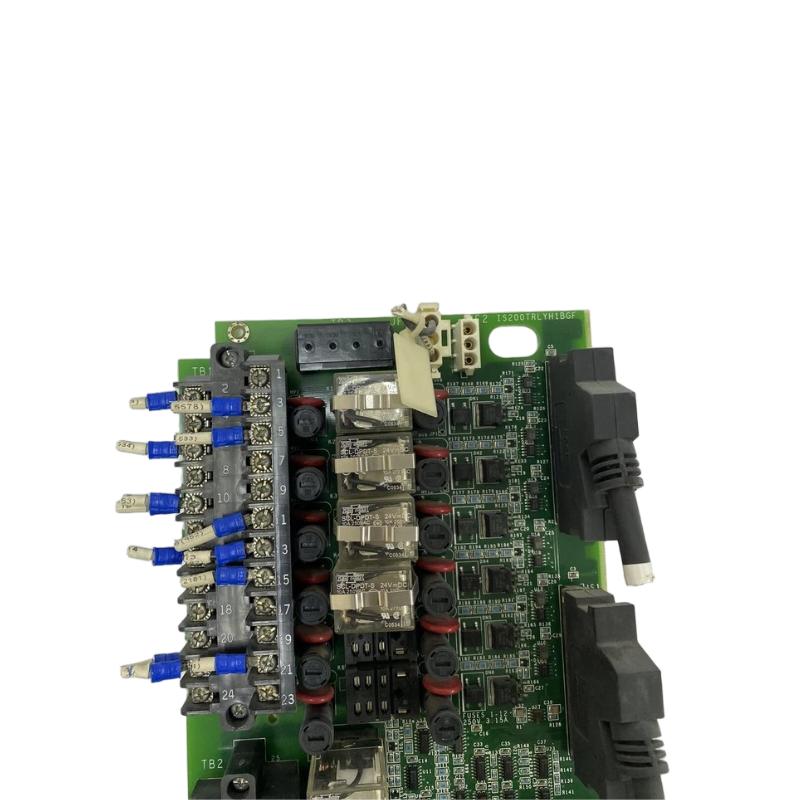

The GE IS200TRLYH1BGF is a terminal relay card designed for the GE Mark VI control system. It provides a reliable interface for relay outputs, enabling safe and accurate switching of external devices. This card is suitable for turbine control and industrial automation applications requiring robust relay operation.
General Information
Brand: GE (General Electric)
Country of Origin: United States
Part Number: IS200TRLYH1BGF
Series: Mark VI Control System
Type: Terminal Relay Card
Function: Relay output interface and signal routing
Mounting: Rack or chassis-mounted within the control cabinet
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 12 W
Input Source: From control backplane
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power and relay status
Communication & Interface
Interface Type: Relay output interface
Signal Type: Discrete relay outputs
Connection: Backplane or ribbon cable to controller modules
Function: Provides safe relay output switching to external devices
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Industrial control cabinet
Dimensions & Weight
Dimensions: 330 × 178 mm
Weight: Approx. 1.2 kg
