GE DS200FGPAG1AGD Gate Pulse Amplifier Board Price Advantage

Overview

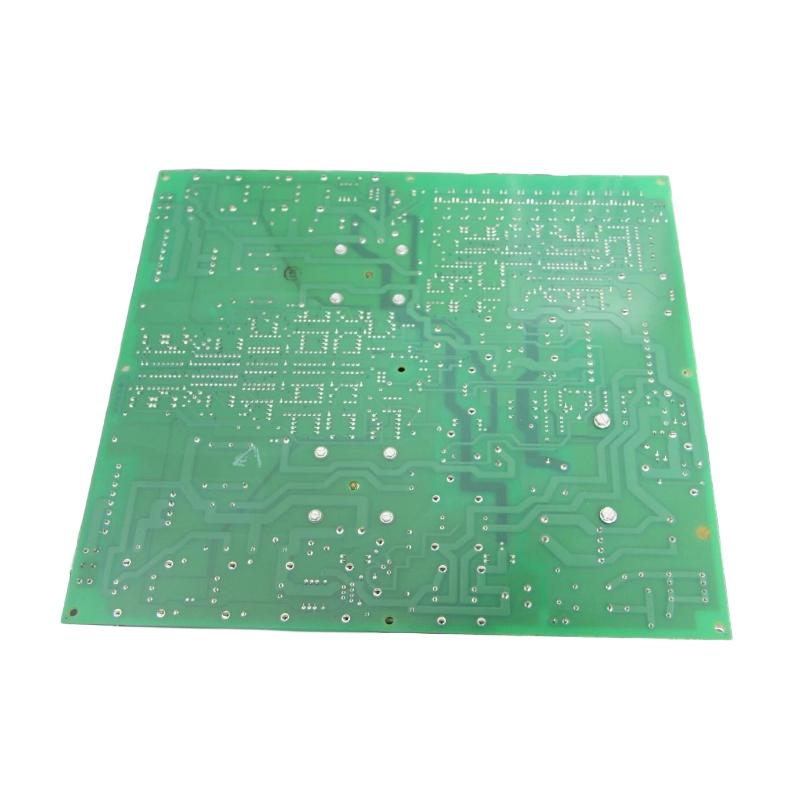

The GE DS200FGPAG1AGD is a Gate Pulse Amplifier Board within the GE Mark V turbine control system. It provides gate power for one phase of an SCR bridge, monitors SCR status, and converts AC power to DC. This module is integral to the Load Commutated Inverter (LCI) used in turbine control applications.

General Information

• Part Number: DS200FGPAG1AGD

• Product Name / Model: Gate Pulse Amplifier Board

• Manufacturer: General Electric (GE)

• Country of Origin: United States

• Series / Module Type: Mark V / Gate Pulse Amplifier

• Type: Control Board

• Mounting: Installed in the turbine control system rack

• Application Area: Turbine control systems utilizing Load Commutated Inverters

Electrical Specifications

• Input Voltage: 120 Vrms ±20%, 50/60 Hz

• Power Consumption: Approximately 350 VA maximum

• Gate Driver Circuits: Two independent circuits to manage gate pulses for SCRs

• Fiber-Optic Connectors: 15 total (1 transmitter and 14 receivers) for robust communication links

• Test Points: 30 total (9 for Gate A, 9 for Gate B, and 12 for Cell Status)

• Protection: IP50 (Dust and moisture resistant)

• Compatibility: Not backwards compatible

Environmental

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -40°C to +85°C

• Humidity: Up to 95%, non-condensing

• Cooling: Natural convection

Dimensions & Weight

• Dimensions (L × W × H): Approximately 508  × 406  × 229 mm

• Weight: Approximately 3.6 kg (8 lbs)

All our inventory is brand new, original, and ready for shipping.
