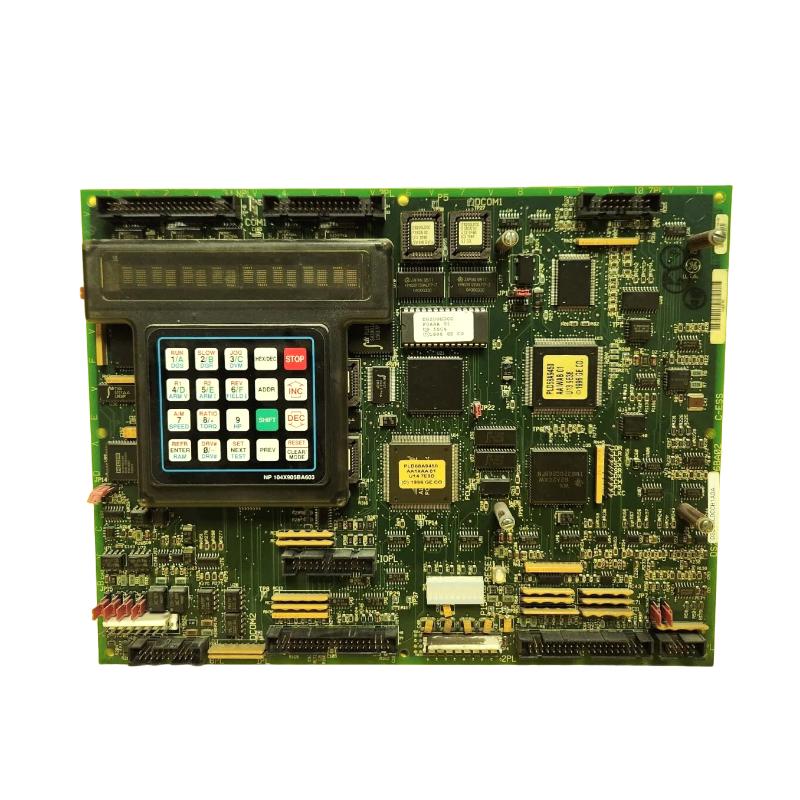

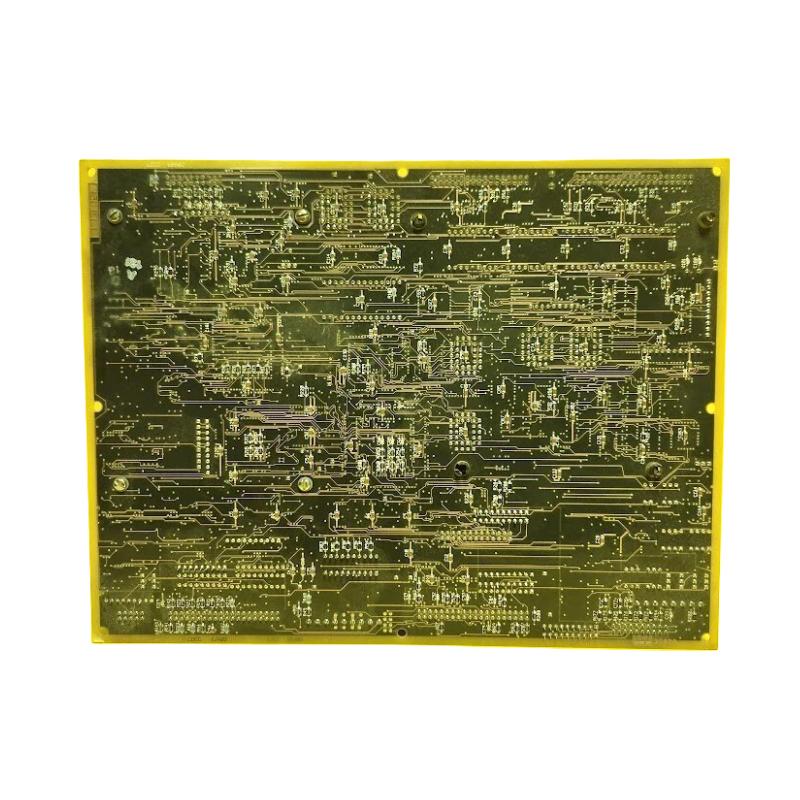

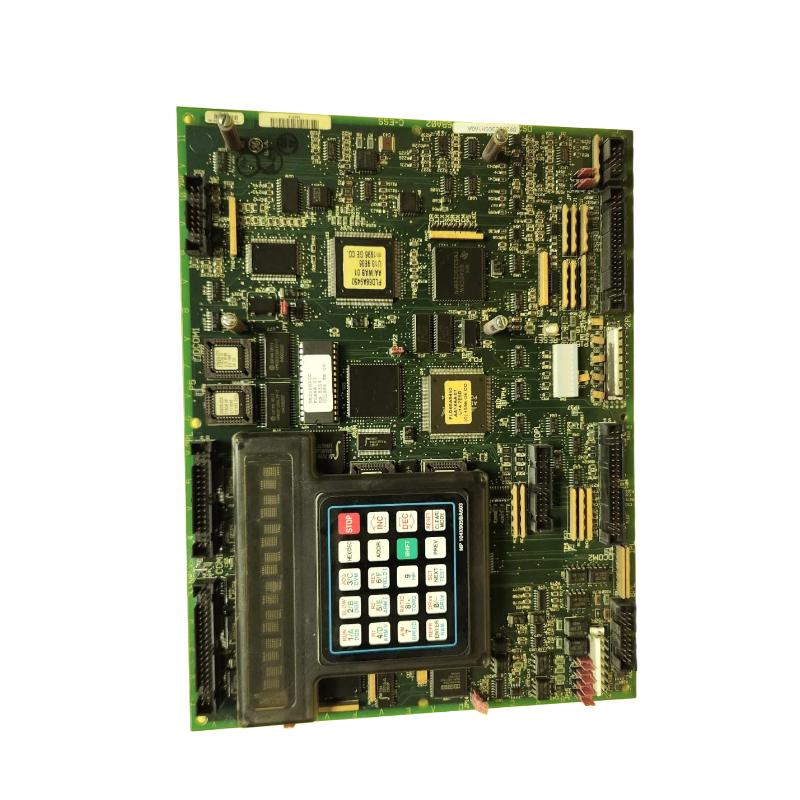

GE DS200LDCCH1A LAN Communication Board New In Stock

Overview
The GE DS200LDCCH1A is a Drive Control and LAN Communication Board within the GE Mark V turbine control system. It provides primary drive and I/O control functions for the DIRECTO-MATIC 2000 family of drives and exciters.

General Information

• Part Number: DS200LDCCH1A

• Product Name / Model: Drive Control / LAN Communication Board

• Manufacturer: General Electric (GE)

• Country of Origin: United States

• Series / Module Type: Mark V / Drive Control LAN

• Type: Control Board

• Mounting: Installed in the turbine control system rack

• Application Area: Turbine control systems utilizing Load Commutated Inverters

Functional Specifications

• Microprocessors: Equipped with four microprocessors:

• LAN Control Processor (LCP): Handles five bus systems.

• Drive Control Processor (DCP): Manages integrated peripheral I/Os (timers, decoders).

• Motor Control Processor (MCP): Controls motor control circuits and I/O communications.

• Co-Motor Processor (CMP): Provides additional processing power for complex computations when MCP's capacity is insufficient.

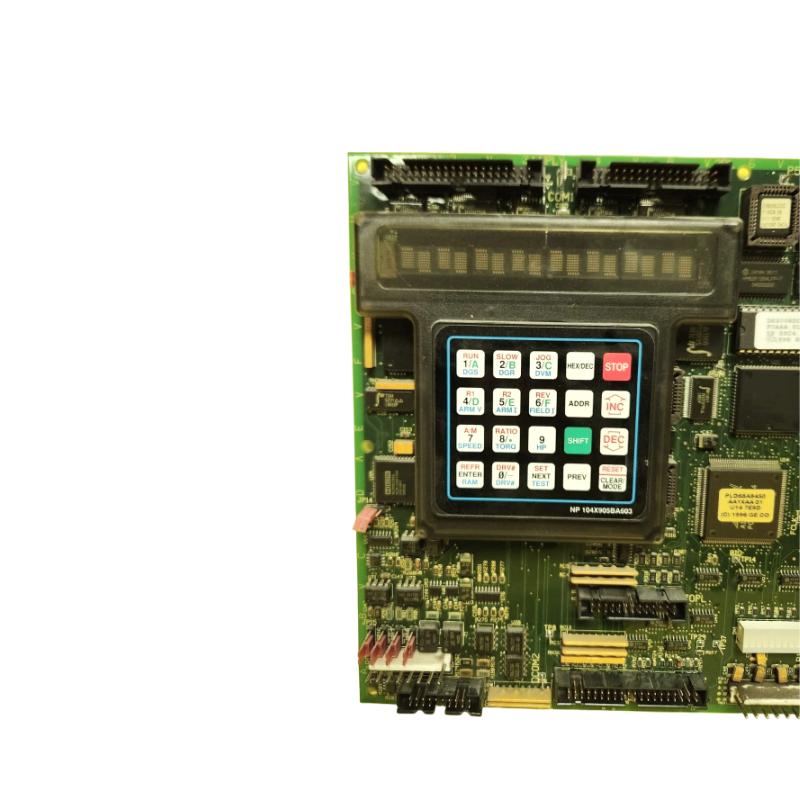

• Operator Interface: Includes an alphanumeric keyboard for user access to system settings and diagnostics.

• Communication: Facilitates LAN communications for drive and motor processing.

• Drive Control: Enables drive resets and motor control functions.

Environmental Specifications

• Operating Temperature: Typically 0°C to +60°C

• Storage Temperature: Typically -40°C to +70°C

• Humidity: Up to 95%, non-condensing

• Cooling: Natural convection

Dimensions & Weight

• Dimensions (L × W × H): Approximately 406  × 508  × 38 mm

• Weight: Approximately 2.7 kg (6 lbs)

Authentic stock available, 24-hour response guaranteed.
