Honeywell 8C-PAIM01 51454358-175 Analog Input Module Quality Assurance

Overview

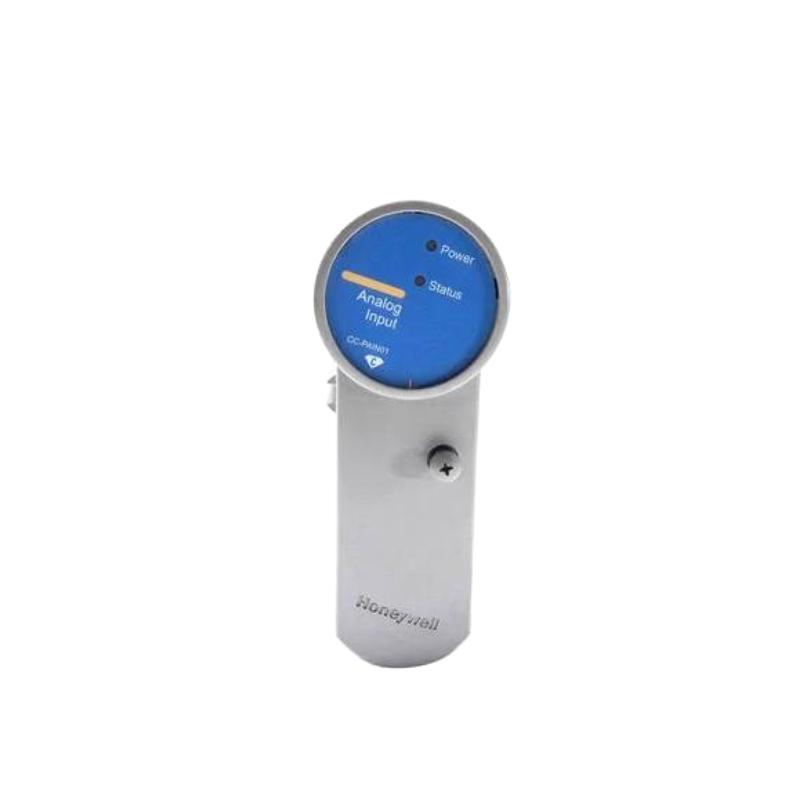

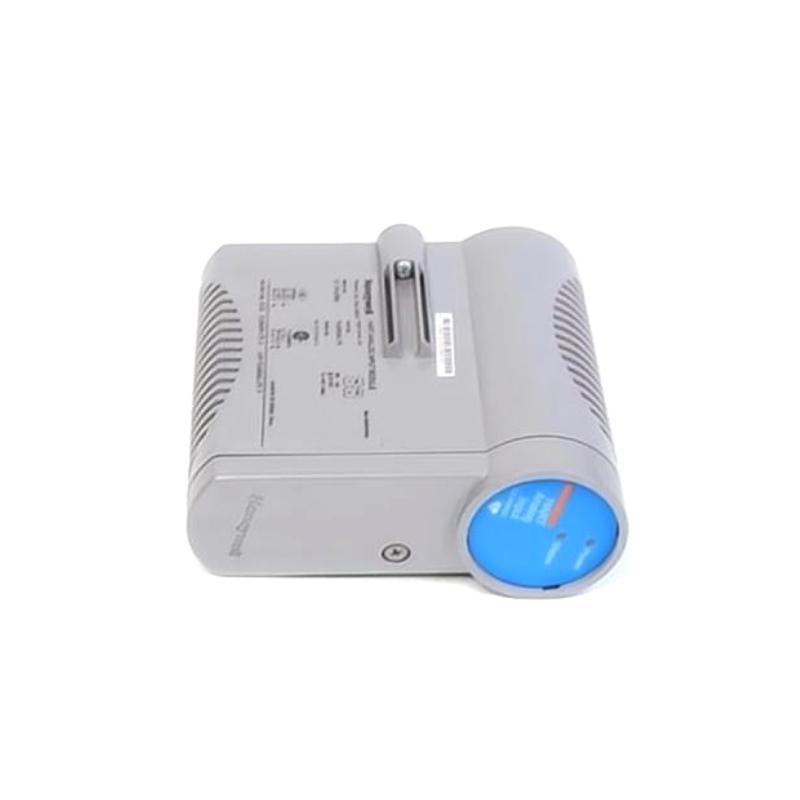

The Honeywell 8C-PAIM01 51454358-175 is an 8-channel analog input module for Honeywell Experion PKS and Series-C I/O systems. It converts 4–20 mA analog signals from field devices into digital readings for precise industrial process monitoring and control.

General Information

• Part Number: 8C-PAIM01 51454358-175

• Manufacturer: Honeywell

• Series: Experion PKS / Series-C I/O

• Module Type: Analog Input Module (AI)

• Country of Origin: USA

• Mounting: Installed in Series-C I/O chassis

• Input Channels: 8 isolated analog inputs

Power Specifications

• Supply Voltage: 24 V DC (nominal)

• Power Consumption: Approx. 6.5 W

• Isolation: Optical isolation between channels and ground

• Protection: Overvoltage, reverse polarity, and surge protection

Communication & Interface

• Communication Protocol: HART (Highway Addressable Remote Transducer)

• Interface: Field I/O (FIO) bus

• System Compatibility: Honeywell Experion PKS / Series-C I/O

• Input Signal Types: 4–20 mA DC

• Resolution: 16-bit A/D conversion

• Accuracy: ±0.1% of full scale

• Diagnostics: LED indicators for power, communication, and channel status

Environmental

• Operating Temperature: -40°C to +70°C

• Storage Temperature: -40°C to +85°C

• Humidity: 10% to 90% RH, non-condensing

• Protection Rating: IP20 (cabinet installation)

Dimensions & Weight

• Dimensions (L × W × H): 120  × 100  × 25 mm

• Weight: Approx. 0.2 kg

Reliable source for genuine brand-new stock, contact us anytime for pricing details.
