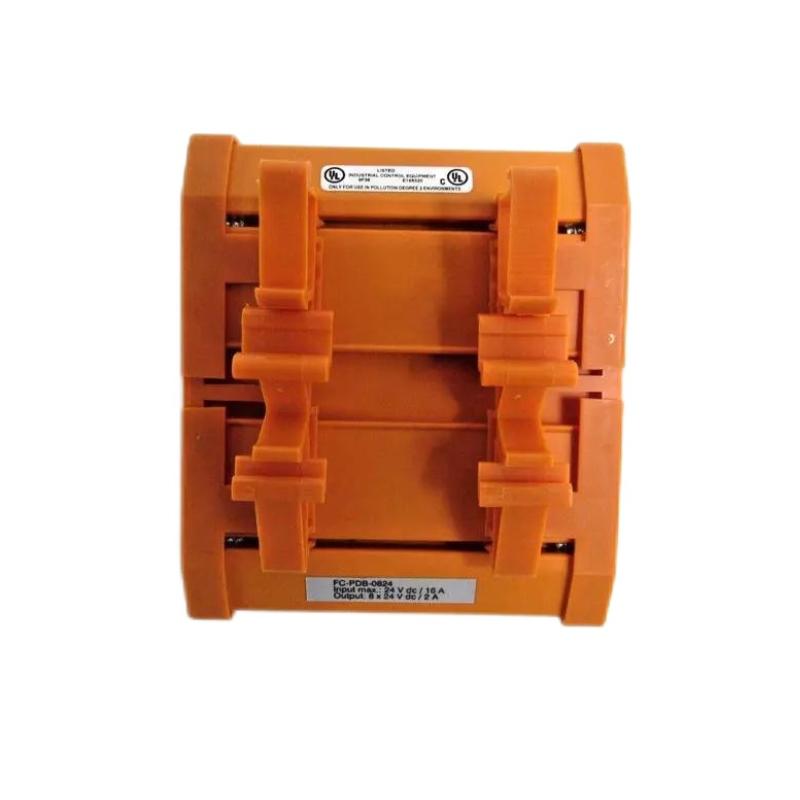

Honeywell FC-PDB-0824 Power Distribution Board

Overview

The Honeywell FC-PDB-0824 Power Distribution Board streamlines the distribution of 24 V DC power from a primary power rail to multiple devices within an enclosure—perfect for compact cabinet systems managing components like fans and safety instrumentation.

General Information

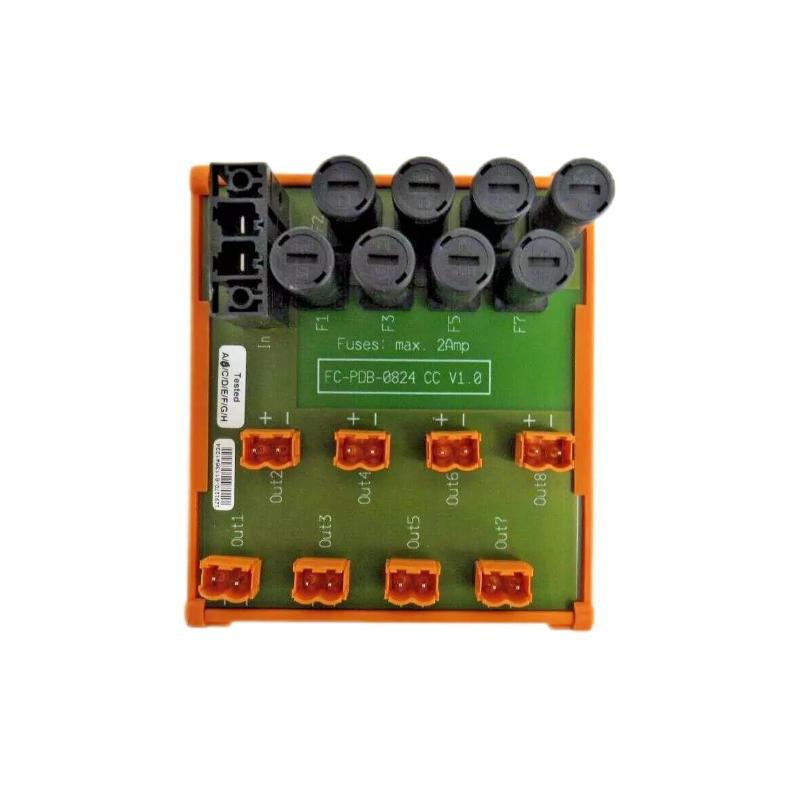

• Part Number: FC-PDB-0824 (also conformally coated variant: FC-PDB-0824 CC V1.0)

• Manufacturer: Honeywell

• Type: Power Distribution Board (24 V DC, 8-channel)

• Mounting: DIN-rail (TS32 / TS35 × 7.5) inside control cabinets

• Technology: Distributes fused 24 V DC power to field devices

Power Specifications

• Input Voltage: 24 V DC from main bus

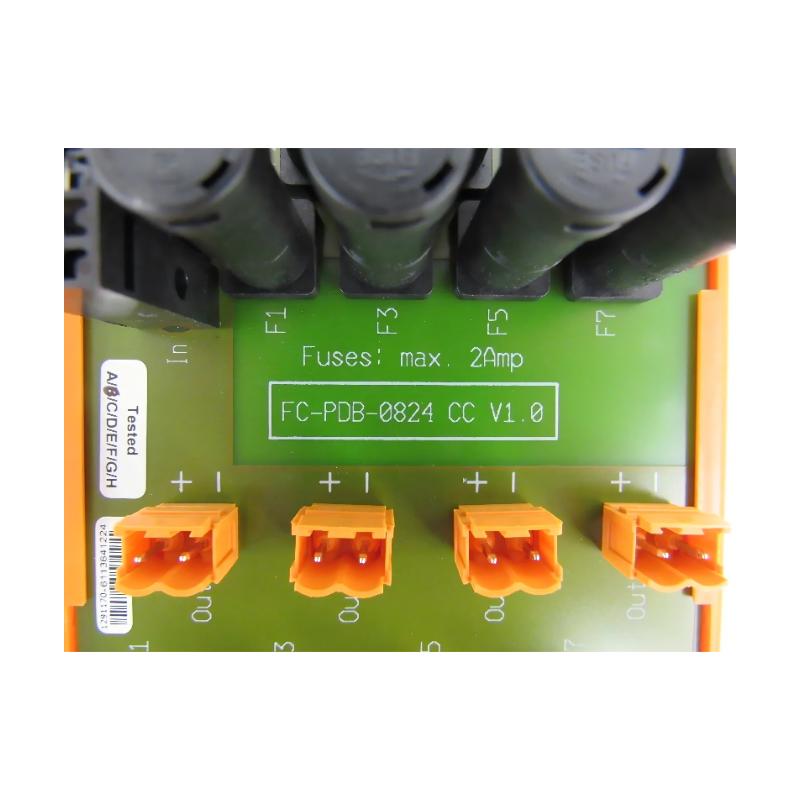

• Per-Output Rating: 2 A via slow-blow fuse (5 × 20 mm, maximum 2 AT)

• Protection: Fused outputs and galvanic isolation to safeguard downstream circuits

• Indicators: Diagnostic status LEDs for power rail and field connectivity

Communication & Interface

• Connectors:

• Input (In): 2-pole header (keyed) using Weidmuller BVZ 7.62/02F SW connector

• Outputs (Out1–Out8): Mate-type Weidmuller BL 5.08/2 SN OR or equivalent plug-in sockets

• Usage: Designed to efficiently channel 24 V DC to devices like fans, FTAs, and auxiliary controllers

I/O & Channels

• Input Ports: 1 header for main power connection

• Output Ports: 8 individual fused 24 V DC outputs for field devices

• Load Support: Delivers up to 2 A per output with fuse protection

Environmental

• Operating Temperature: –40 °C to +70 °C

• Storage Temperature: –40 °C to +85 °C

• Humidity: Accepts up to 95% RH (non-condensing)

• Certifications: CE marked; approvals pending from UL, TUV, CSA

Dimensions

• Length: 94 mm

• Width: 109 mm

• Height: 71 mm

• DIN Rail Usage: Occupies approximately 95 mm along the rail

• Weight: Lightweight and suitable for compact cabinet mounting
