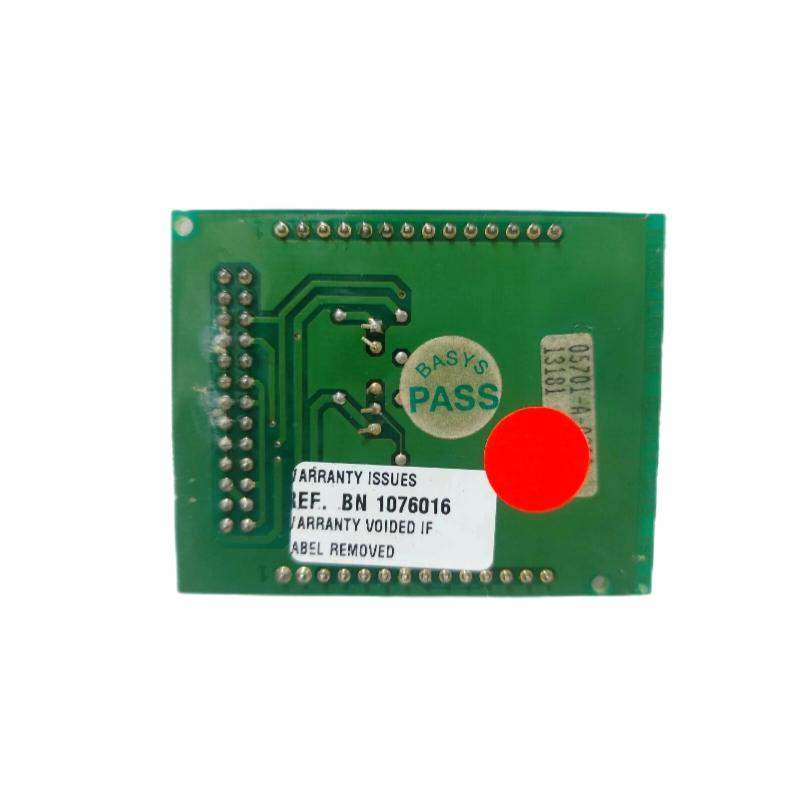

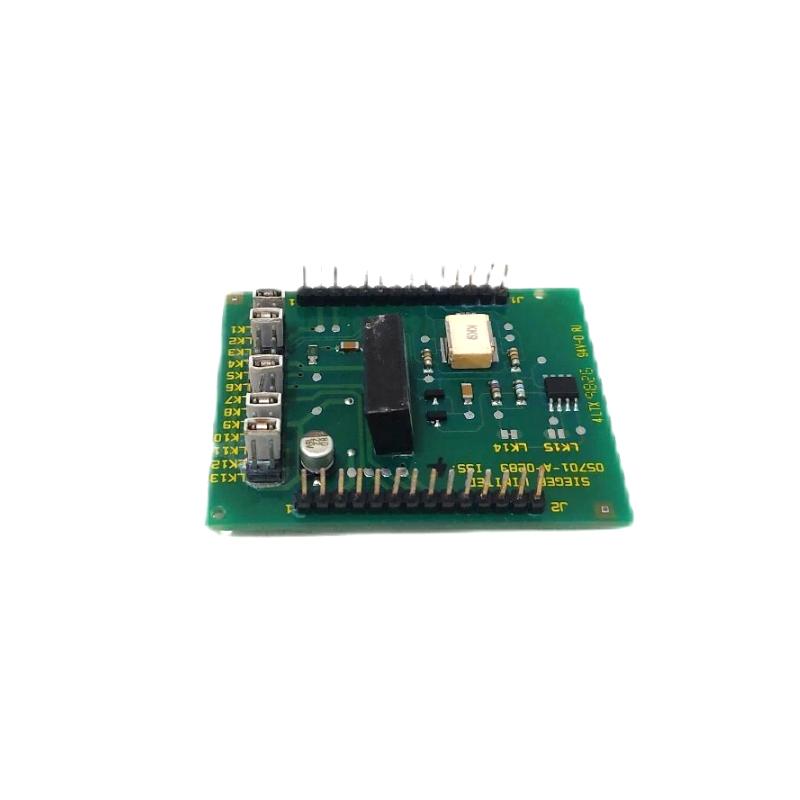

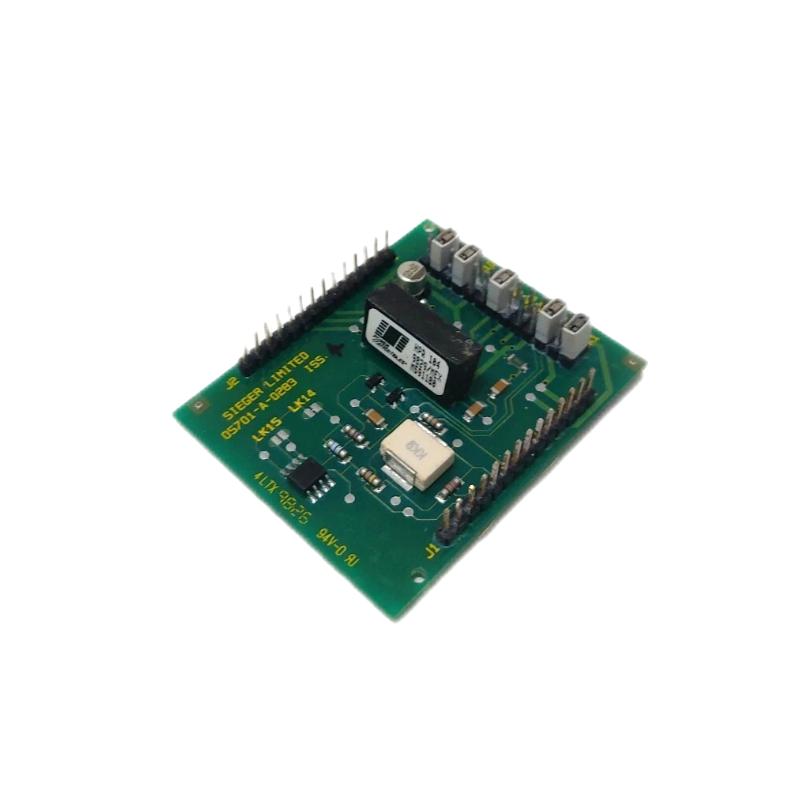

Honeywell 05701-A-0283 Sensor Drive Module New In Stock

Overview

The Honeywell 05701-A-0283 is a Sensor Drive Module crafted for integration into the Honeywell System 57 gas detection control system. It delivers precise 4–20 mA signal outputs and supplies power to connected field sensors—ensuring accurate data transmission in safety-critical gas detection environments.

General Information

• Part Number: 05701-A-0283

• Manufacturer: Honeywell

• Series/Application: System 57 Gas Detection Controller

• Type: Sensor Drive Module

• Mounting: Plug-in module compatible with System 57 chassis

• Technology: Signal conditioning with built-in sensor power supply

Power Specifications

• Supply Voltage: 24 V DC (nominal)

• Power Consumption: Approximately 150 mA (~3.6 W)

• Protection:
  • Reverse-polarity protection
  • Short-circuit protection

• Status Indicators: Diagnostic LED for module health and power

Communication & Interface

• Output Signal: Industry-standard 4–20 mA current loop

• Load Capability: Supports up to 600 Ω load at 24 V DC

• Accuracy: ±0.1% of full scale for reliable sensor readings

• Sensor Integration: Provides both power and signal conversion for compatible sensors

I/O & Channels

• Input Interface: Accepts connected sensor input, formats to analog output

• Output Interface: Single 4–20 mA loop for downstream control modules or DCS

• System Role: Acts as intermediary between gas sensor devices and main controller

Environmental

• Operating Temperature: –20 °C to +60 °C

• Protection Rating: IP20 (suitable for control cabinet environments)

• Certifications: CE marked, suitable for industrial safety system use

Dimensions & Weight

• Length: Approx. 17 cm

• Width: Approx. 11.2 cm

• Depth (Height): Approx. 25 cm

• Weight: Approx. 0.2 kg
