Overview

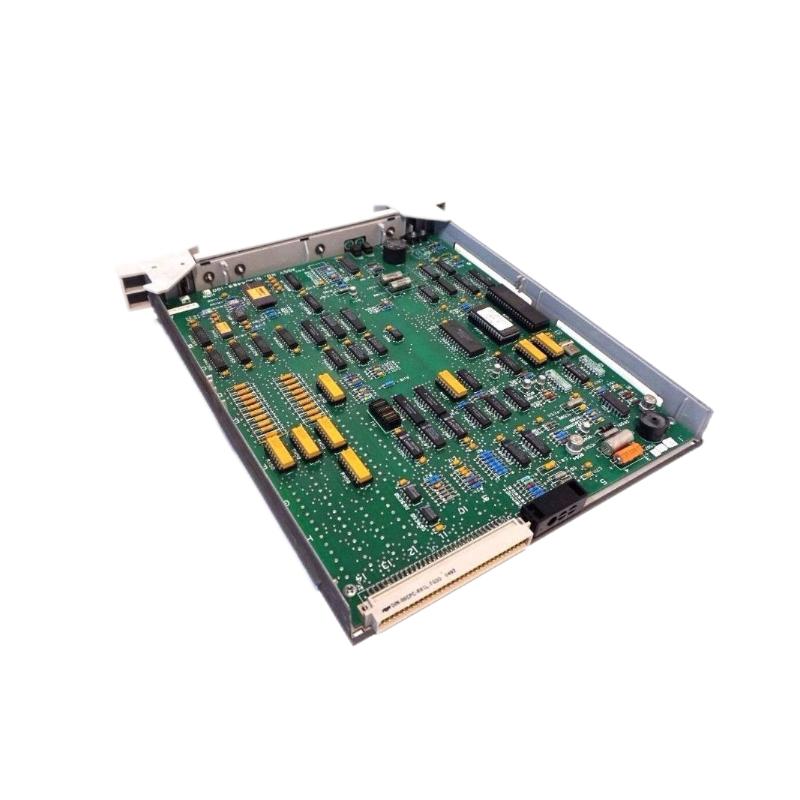

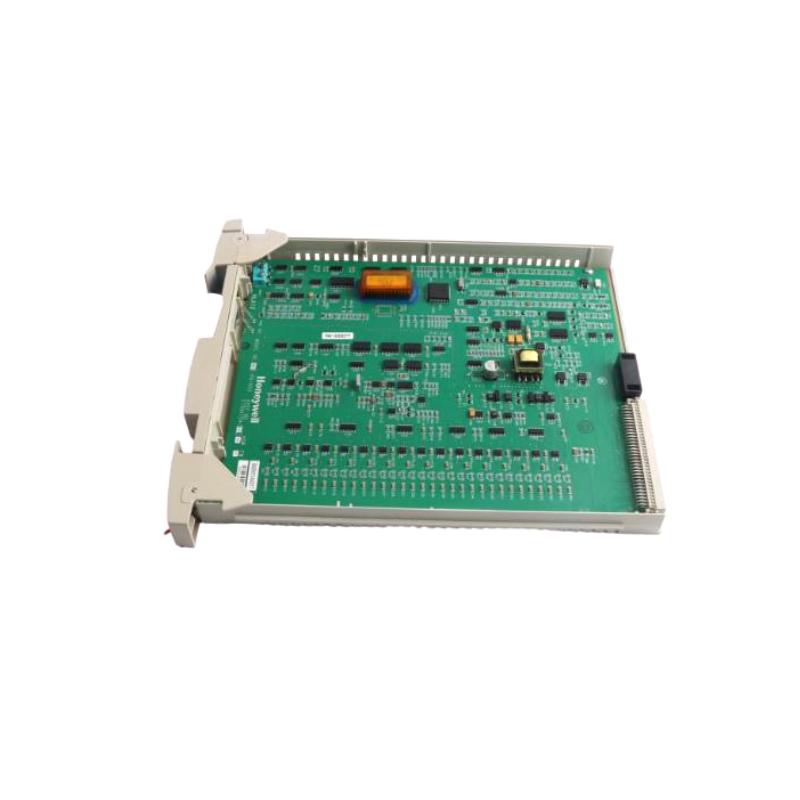

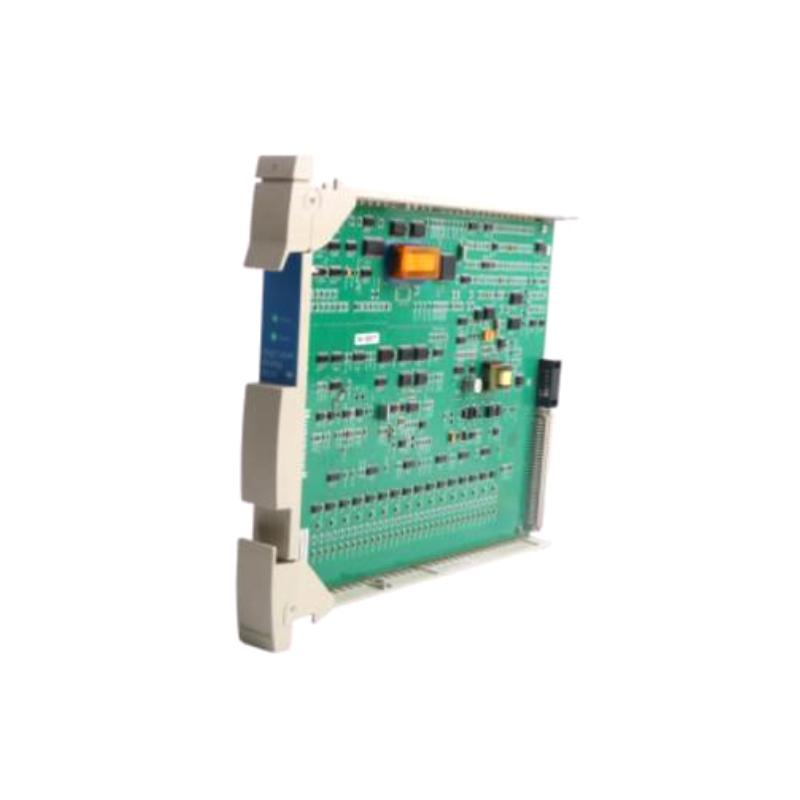

The Honeywell MC-PAIH03 is a high-level analog input module designed for use in industrial process control and automation systems. It converts analog field signals into digital data for reliable monitoring and control, ensuring precise and stable operation in demanding environments.
General Information
Brand: Honeywell
Country of Origin: United States
Model Number: MC-PAIH03
Product Type: Analog Input Module
Application: Industrial automation, process monitoring, and control signal acquisition
Power Specifications
Supply Voltage: 5 V DC (from system backplane)
Current Consumption: Approx. 250–300 mA
Protection: Over-voltage and reverse-polarity protection
Communication & Interface
Input Channels: 16 analog input channels
Input Signal Range: 0–5 V, 1–5 V, or 4–20 mA
Interface: Connected via system backplane for integration with Honeywell DCS
Diagnostics: Channel monitoring and fault detection supported by the system
Environmental
Operating Temperature: -40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation: Rack or panel mounted within industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): 320 × 107 × 130 mm
Weight: Approx. 0.60 kg
