Overview

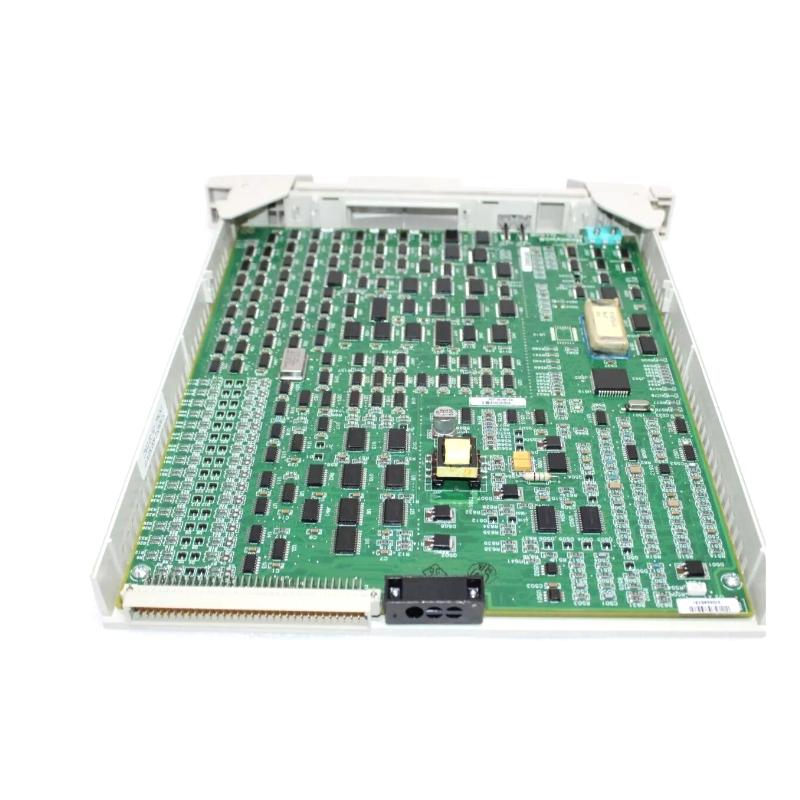

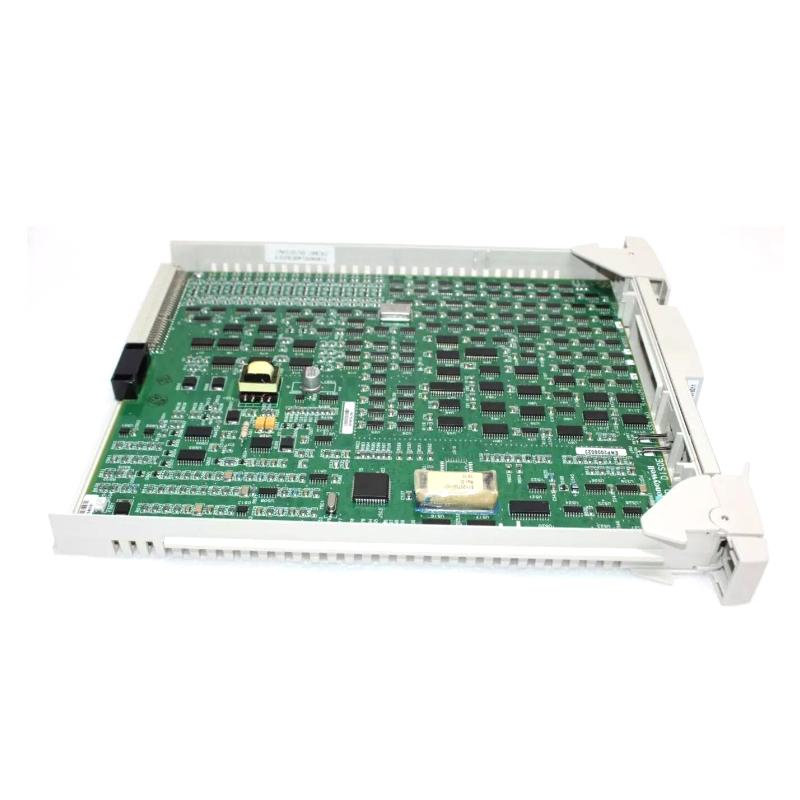

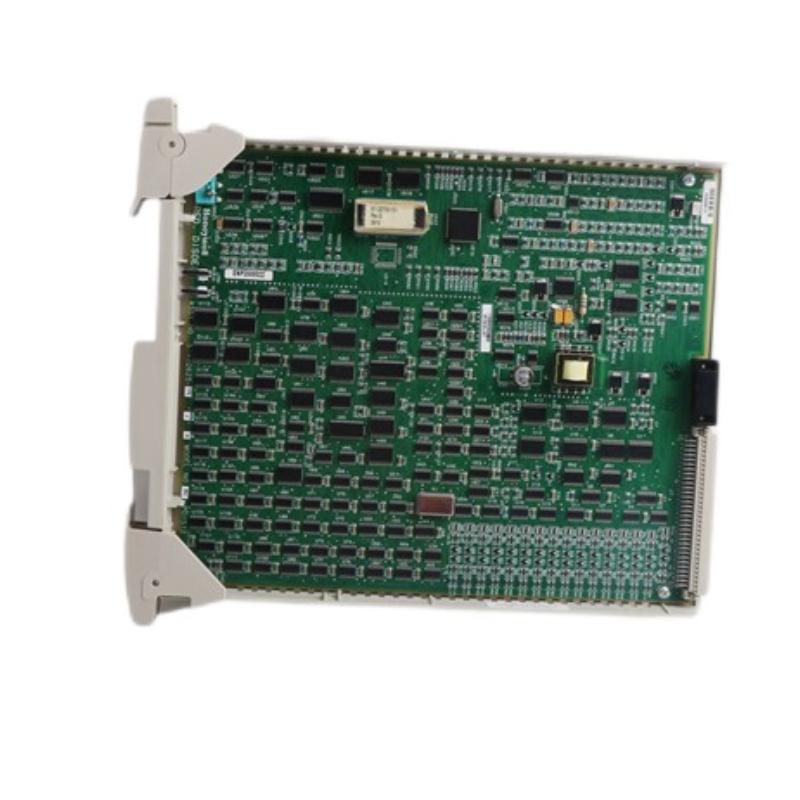

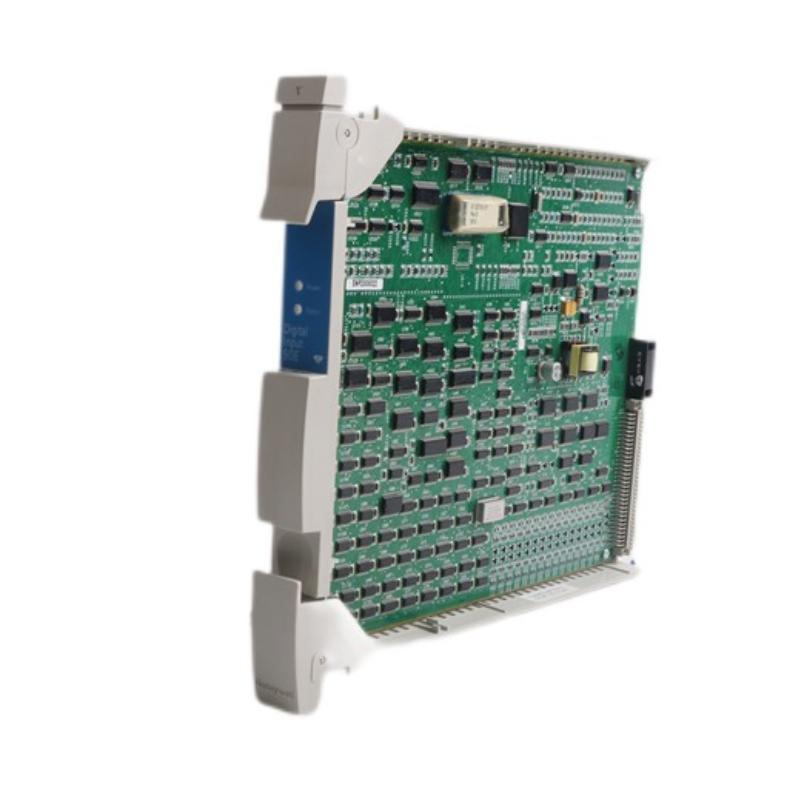

The Honeywell MC-PDIS12 is a high-performance digital input module used in industrial automation systems. It receives discrete signals from field devices and transmits them to the control system for accurate monitoring and control. The module ensures reliable and fast signal processing in demanding industrial environments.
General Information
Brand: Honeywell
Country of Origin: United States
Model Number: MC-PDIS12 / 51402625-175
Product Type: Digital Input Module
Application: Industrial process control, discrete signal monitoring, and automation systems
Power Specifications
Supply Voltage: 5 V DC (from system backplane)
Current Consumption: Approx. 200–250 mA
Protection: Over-voltage, reverse-polarity, and short-circuit protection
Communication & Interface
Input Channels: 12 digital input channels
Input Signal Type: Discrete contact signals or transistor outputs
Interface: System backplane connection for integration with Honeywell DCS
Diagnostics: Channel fault detection and status monitoring supported by system software
Environmental
Operating Temperature: -40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation: Rack or panel mounted within industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): Approx. 320 × 107 × 130 mm
Weight: Approx. 0.55 kg
