Overview

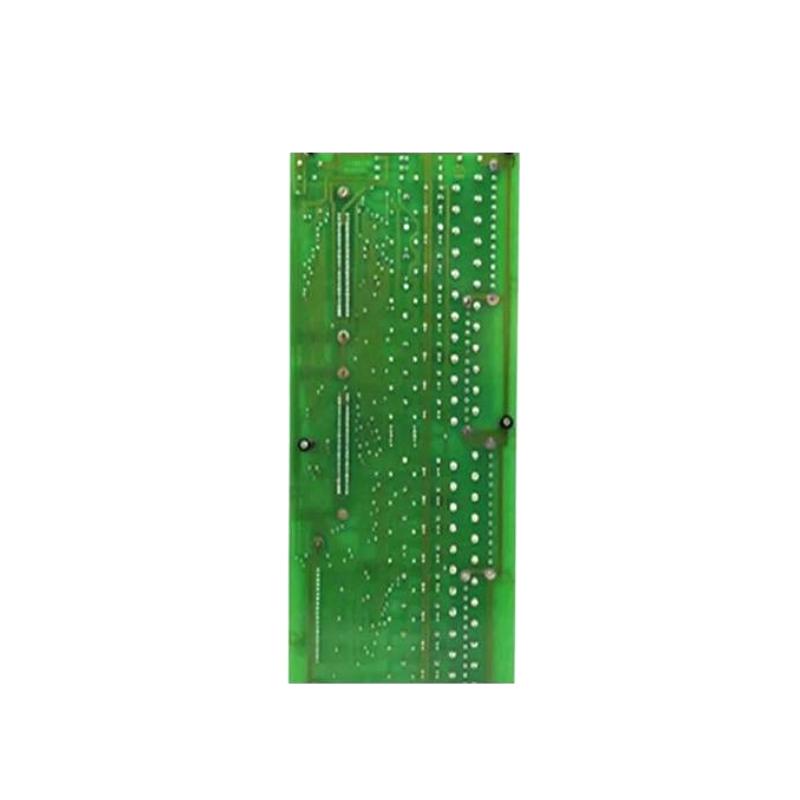

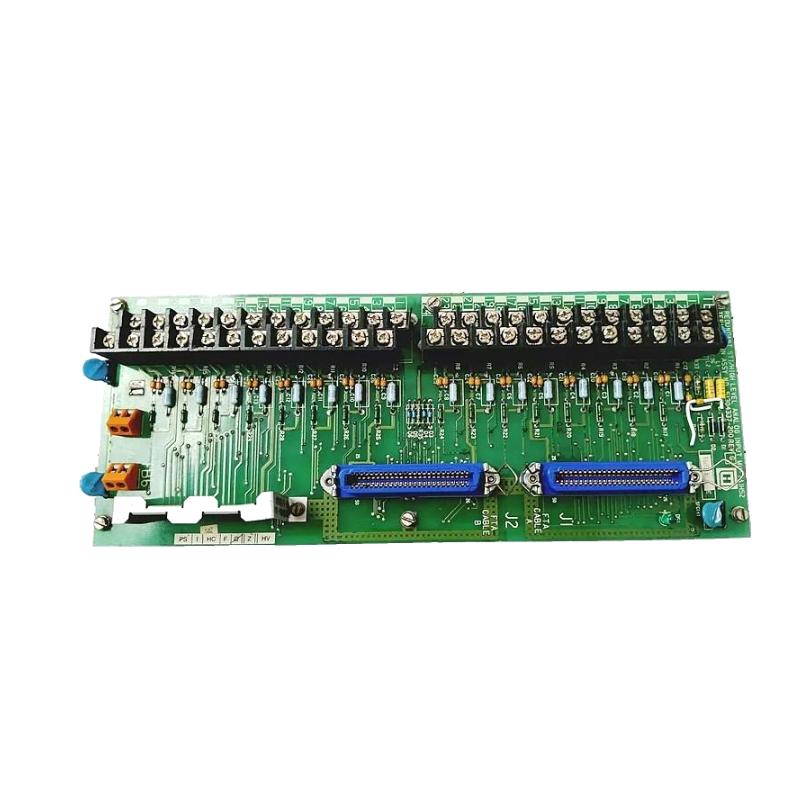

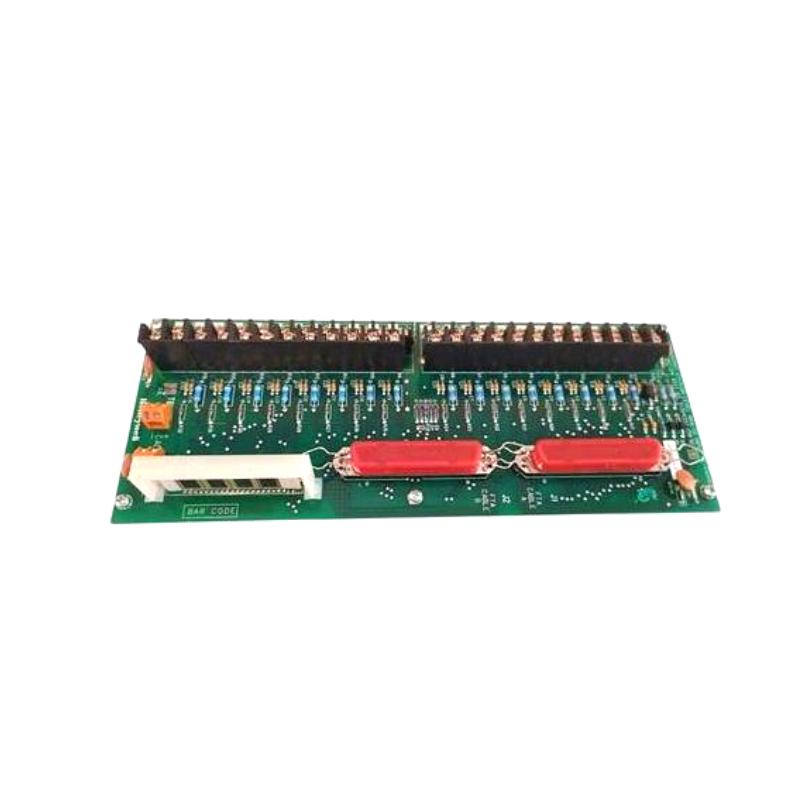

The MU‑TAIH52 is a high‑level analog input module intended for use in advanced DCS systems. It offers precise conversion of analog signals to digital data with redundancy support for enhanced system reliability.
General Information
Part Number: 51304337‑200
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Type: High‑Level Analog Input Module
Function: Converts multiple high‑level analog input signals into digital values for monitoring and control
Power Specifications
Supply Voltage: 24 V DC
Input Ranges: Supports –10 V to +10 V, 0 V to +20 V, and 4–20 mA signals
Channels: 16 input channels
Accuracy: ±0.1% of full scale
Communication & Interface
Interface Type: Backplane connection within Honeywell rack architecture
Channels: 16 high‑level analog inputs
Diagnostics: Built‑in fault detection and redundancy support
Compatibility: Designed for use in Honeywell UCN/Experion/DCS systems
Environmental
Operating Temperature: −40 °C to +85 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in enclosure
Cooling: Passive
Dimensions & Weight
Dimensions (approximate): 120 × 80 × 60 mm
Weight: 0.3 kg
