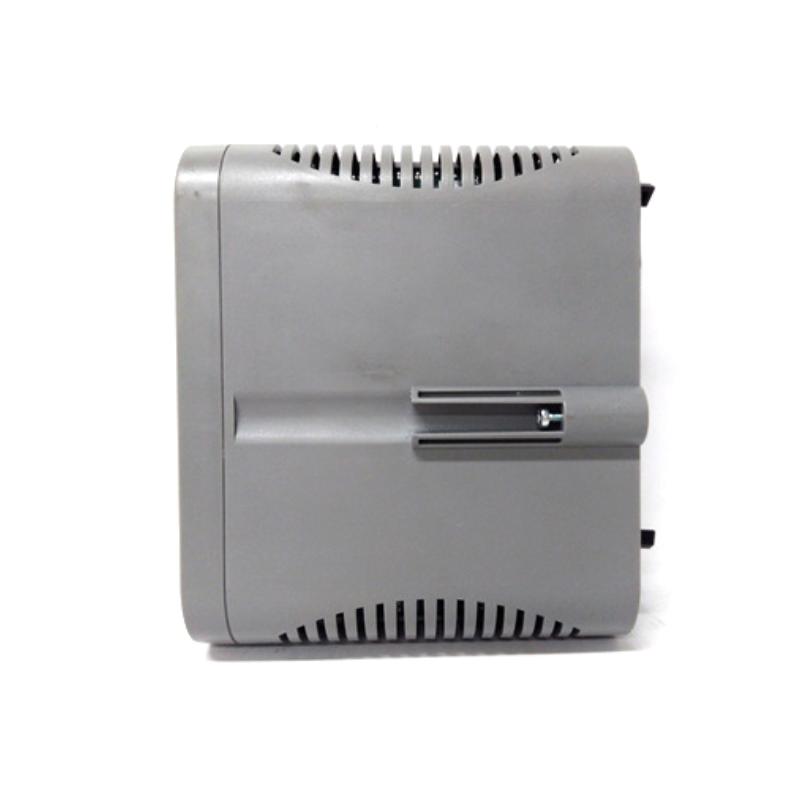

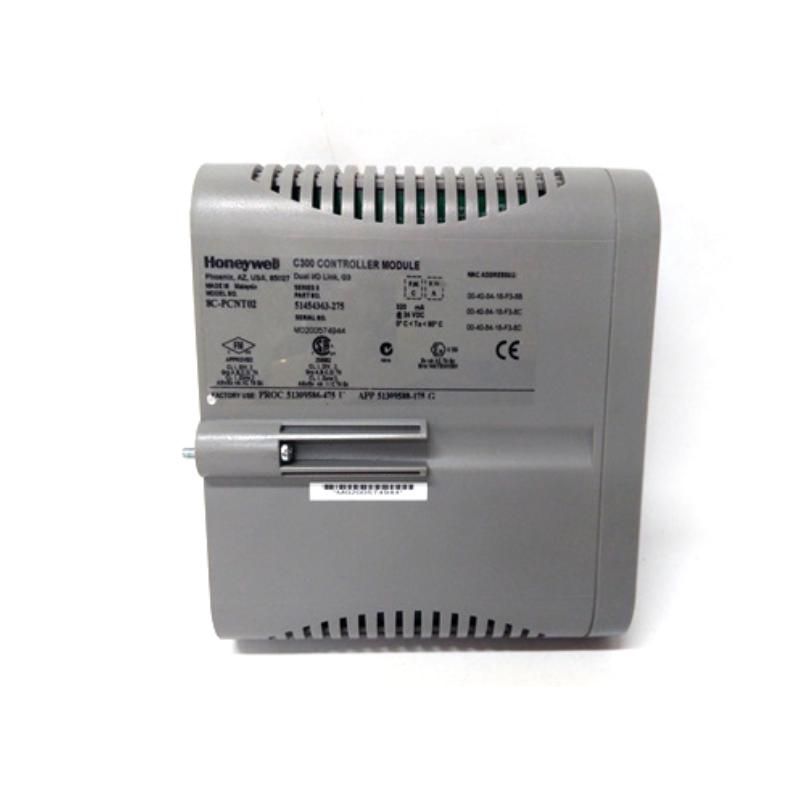

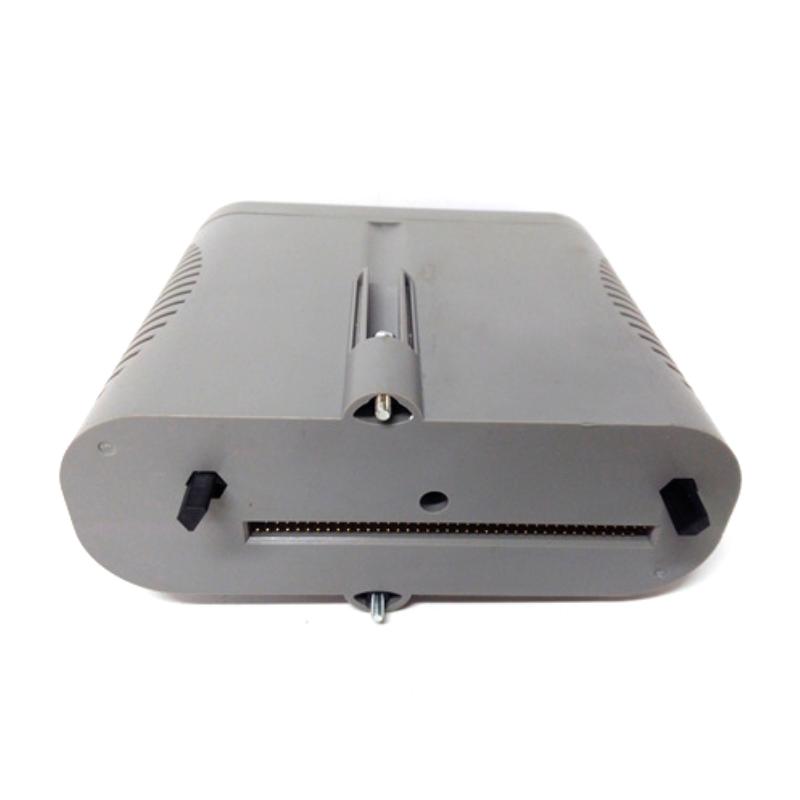

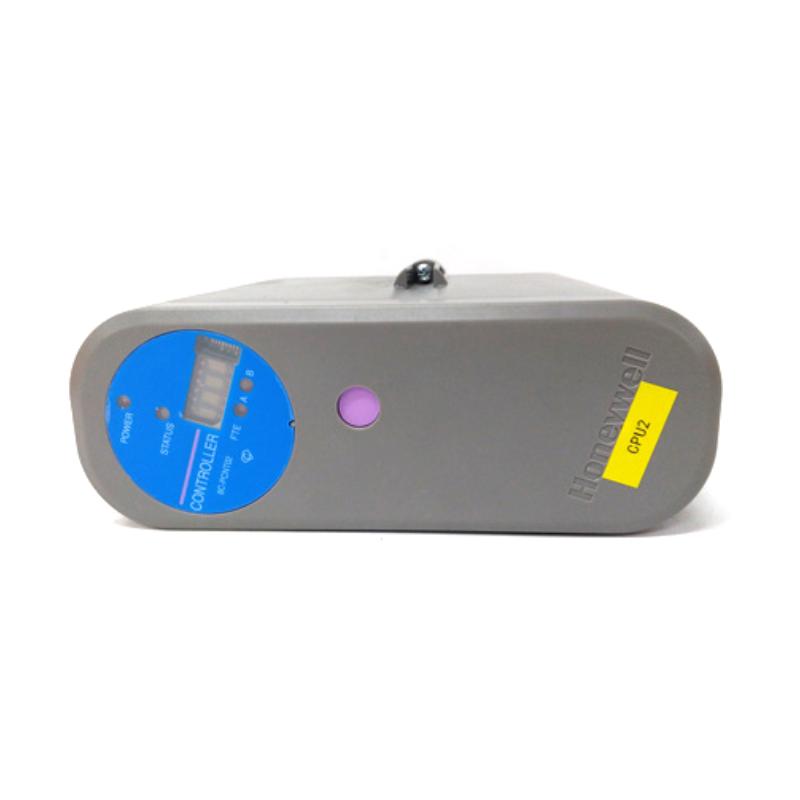

Honeywell 8C-PCNT02 51454363-275 Counter Input Module Quality Selection

Overview

The Honeywell 8C-PCNT02 51454363-275 is a high-performance counter input module used in Honeywell Experion PKS and C300 control systems. It captures and processes pulse or frequency signals from field instruments such as flowmeters, encoders, and proximity switches, delivering reliable and precise counting data to the system controller for process monitoring and control.

General Information

• Part Number: 51454363-275

• Manufacturer: Honeywell

• Product Model: 8C-PCNT02

• Series: Experion PKS / C300 Series

• Module Type: Counter Input Module

• Country of Origin: United States

• Mounting: Rack-mounted module, installed in the system chassis

Power Specifications

• Supply Voltage: 24 V DC nominal (via system backplane)

• Power Consumption: ≤ 7 W

• Input Source: From controller backplane

• Protection: Surge, short-circuit, and reverse-polarity protection

• Indicators: LEDs for power, communication status, and fault

Communication & Interface

• Communication Protocol: FIM (Fieldbus Interface Module) within Experion PKS

• Input Type: Pulse and frequency signals

• Channels: 8 independent counter input channels

• Diagnostics: Real-time fault detection, health monitoring, and LED indicators

• Configuration: Performed through Honeywell Control Builder software

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (suitable for control cabinet installation)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112.5 mm

• Weight: ~0.3 kg

Genuine new items available, 24-hour assistance, quick and accurate pricing.
