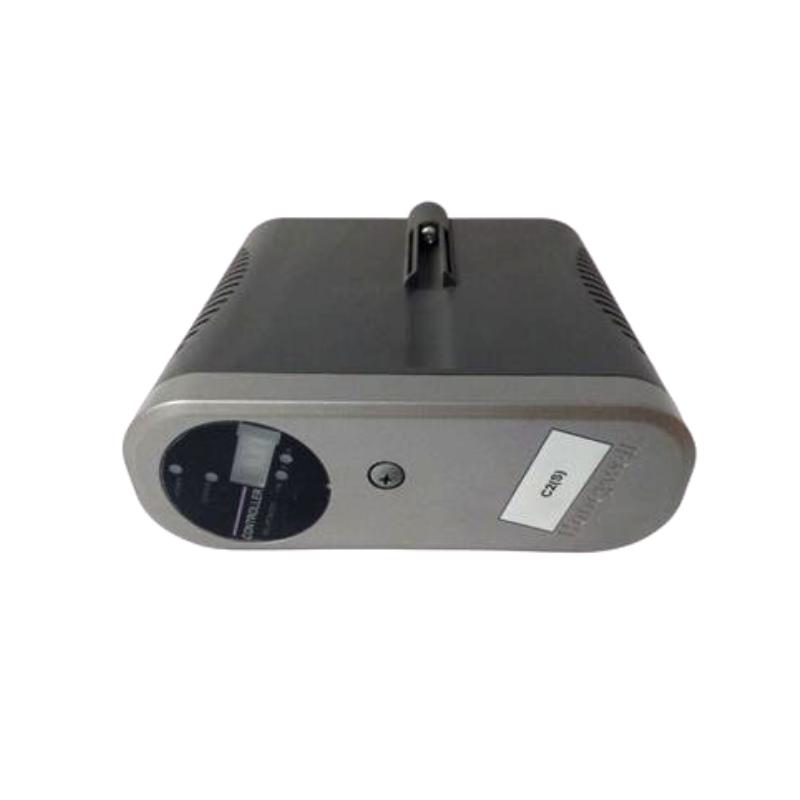

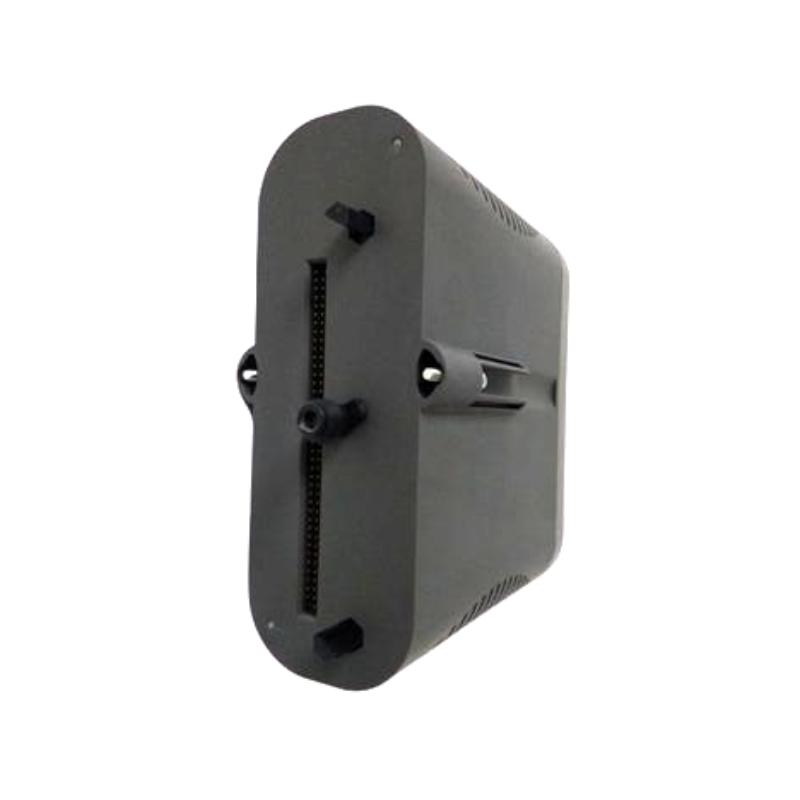

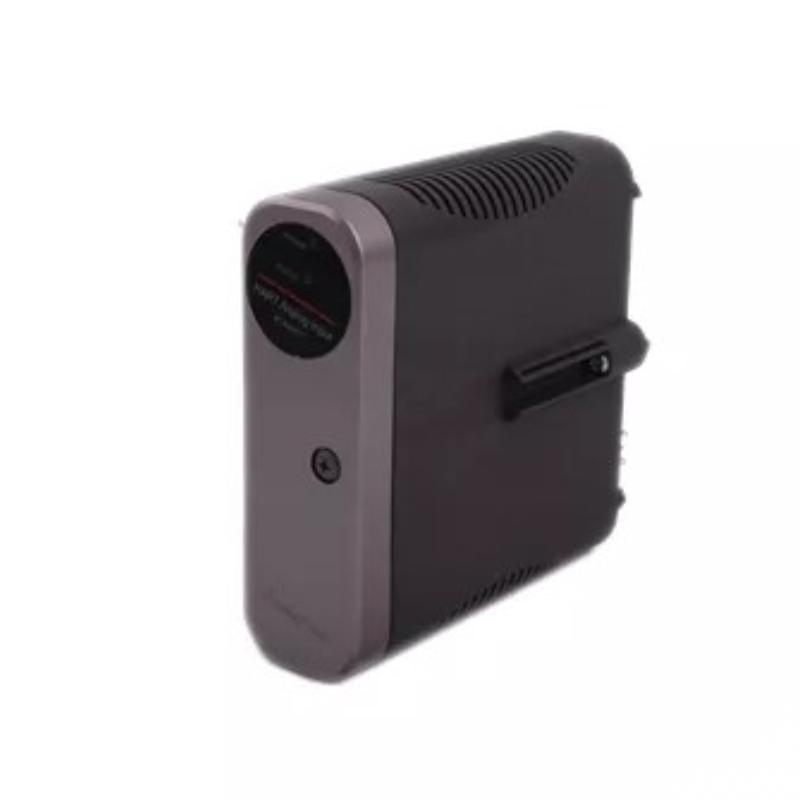

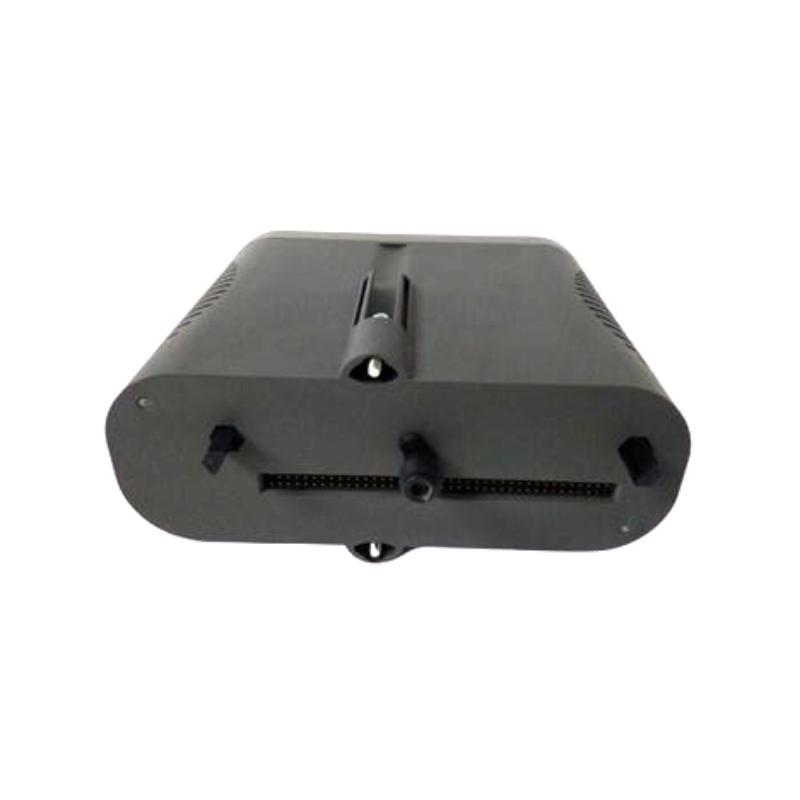

Honeywell 8C-PCNT03 51454238-175 Counter Input Module Efficient delivery

Overview

The Honeywell 8C-PCNT03 51454238-175 is a counter input module developed for use within Honeywell’s Experion PKS and C300 controller platforms. It provides accurate pulse and frequency signal acquisition from field transmitters, flowmeters, or sensors, ensuring reliable process measurement and control in industrial automation systems.

General Information

• Part Number: 51454238-175

• Manufacturer: Honeywell

• Product Model: 8C-PCNT03

• Series: Experion PKS / C300 Series

• Module Type: Counter Input Module

• Country of Origin: United States

• Mounting: Plug-in type, installed in C300 chassis backplane

Power Specifications

• Supply Voltage: 24 V DC nominal (via system backplane)

• Power Consumption: ≤ 7 W

• Input Source: Controller backplane

• Protection: Surge suppression and reverse-polarity protection

• Indicators: LED indicators for power, activity, and fault status

Communication & Interface

• Communication Protocol: FIM / Fieldbus link via C300 system

• Input Type: Pulse and frequency input

• Channels: 8 independent counting channels

• Diagnostics: Built-in self-test, signal monitoring, and fault detection

• Configuration: Set and monitored through Honeywell Control Builder

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for protected cabinet installation)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112.5 mm

• Weight: ~0.3 kg

 Brand-new original inventory always available, backed by fast quotation response.
