Honeywell 8C-PDILA1 51454471-175 Digital Input Module Rave reviews

Overview

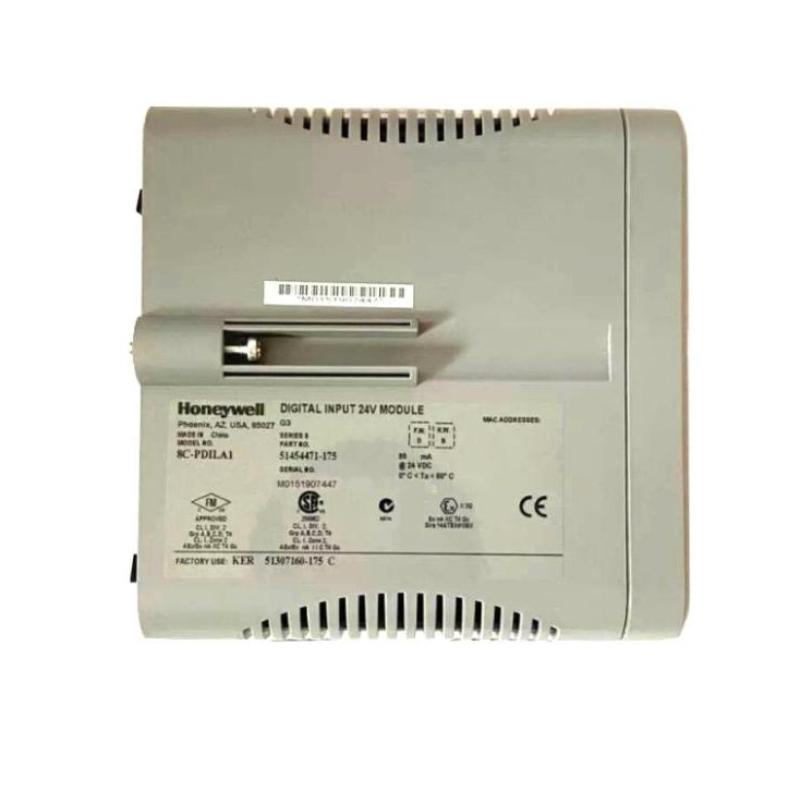

The Honeywell 8C-PDILA1 51454471-175 is a digital input module developed for the Experion PKS and C300 control systems. It is used to collect discrete signals from field devices such as limit switches, push buttons, and proximity sensors, converting them into reliable logic-level data for process monitoring and control applications.

General Information

• Part Number: 51454471-175

• Manufacturer: Honeywell

• Product Model: 8C-PDILA1

• Series: Experion PKS / C300 Series

• Module Type: Digital Input Module

• Country of Origin: United States

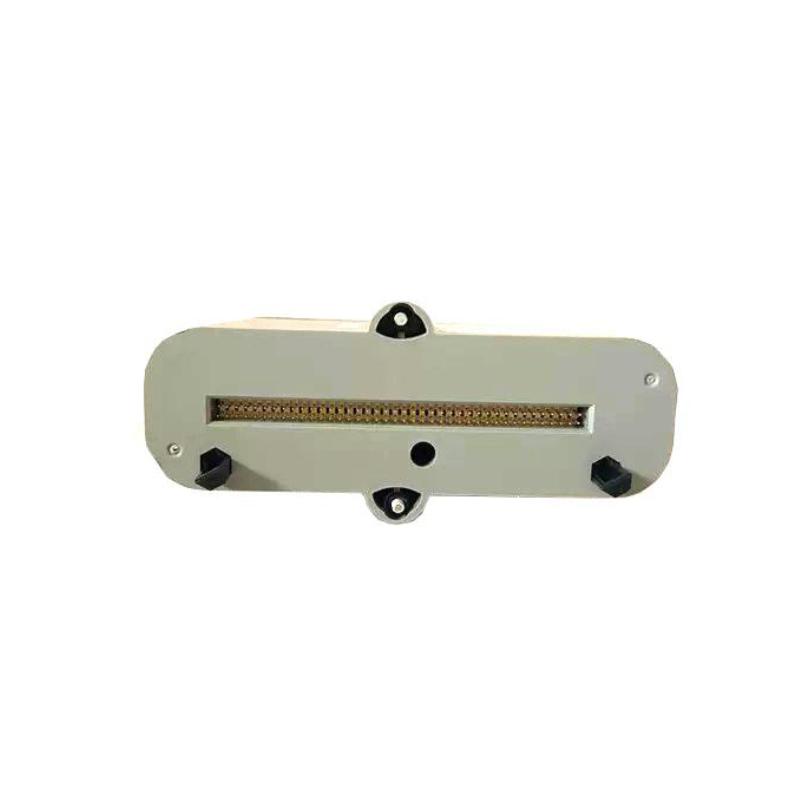

• Mounting: Rack-mounted, installed on C300 backplane

Power Specifications

• Supply Voltage: 24 V DC nominal (via backplane connection)

• Power Consumption: ≤ 6 W

• Input Source: From system backplane

• Protection: Surge and reverse-polarity protection

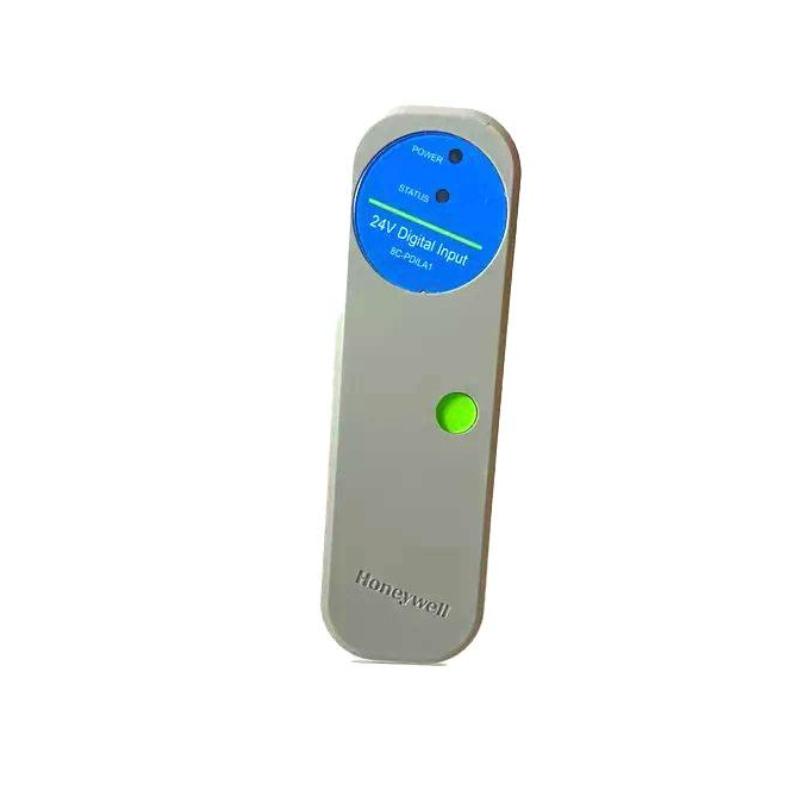

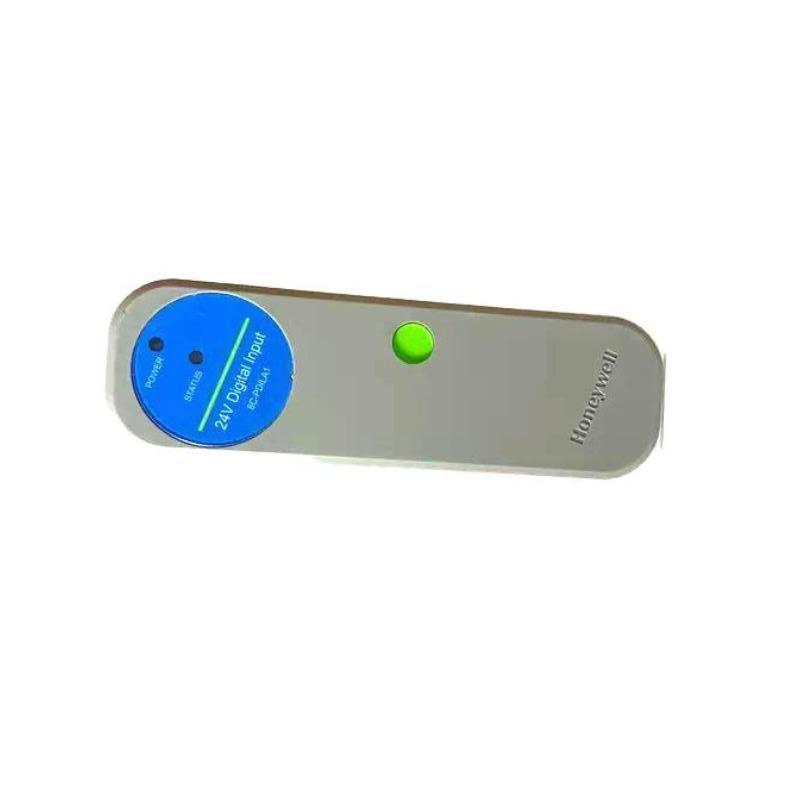

• Indicators: LED indicators for power, input status, and module fault

Communication & Interface

• Communication Protocol: FIM / Fieldbus interface through C300 system

• Input Type: Discrete (digital) signals

• Channels: 32 optically isolated input channels

• Input Voltage Range: 18–32 V DC

• Diagnostics: Built-in fault detection, channel supervision, and LED signaling

• Configuration: Configurable via Honeywell Control Builder software

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for use inside control cabinets)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112.5 mm

• Weight: ~0.3 kg

 Brand-new and certified original components, available with quick pricing assistance.
