Honeywell 8C-PDIL51 51454359-175 Digital Input Module Efficient delivery

Overview

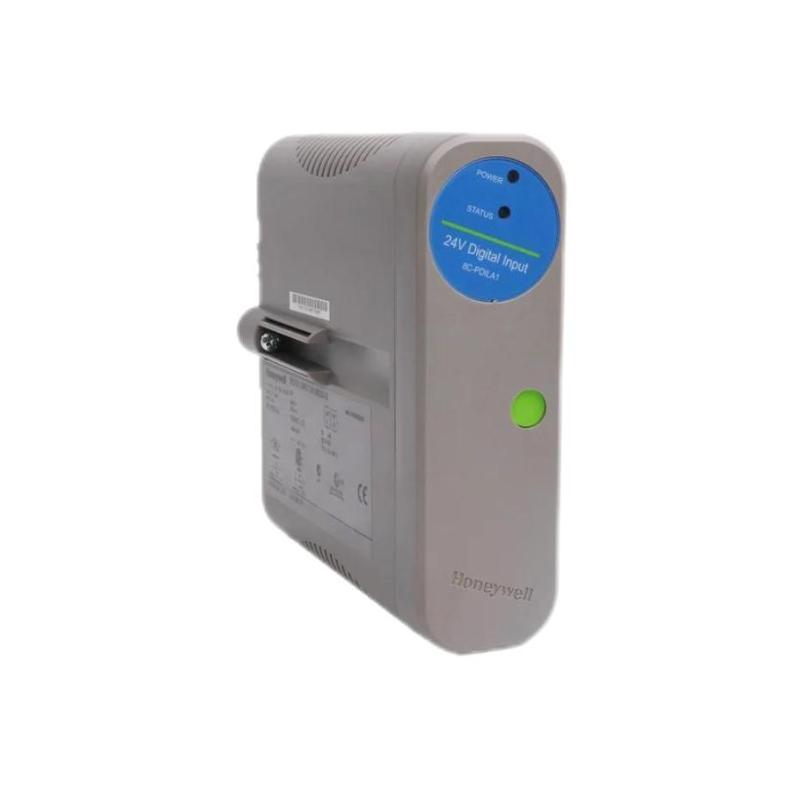

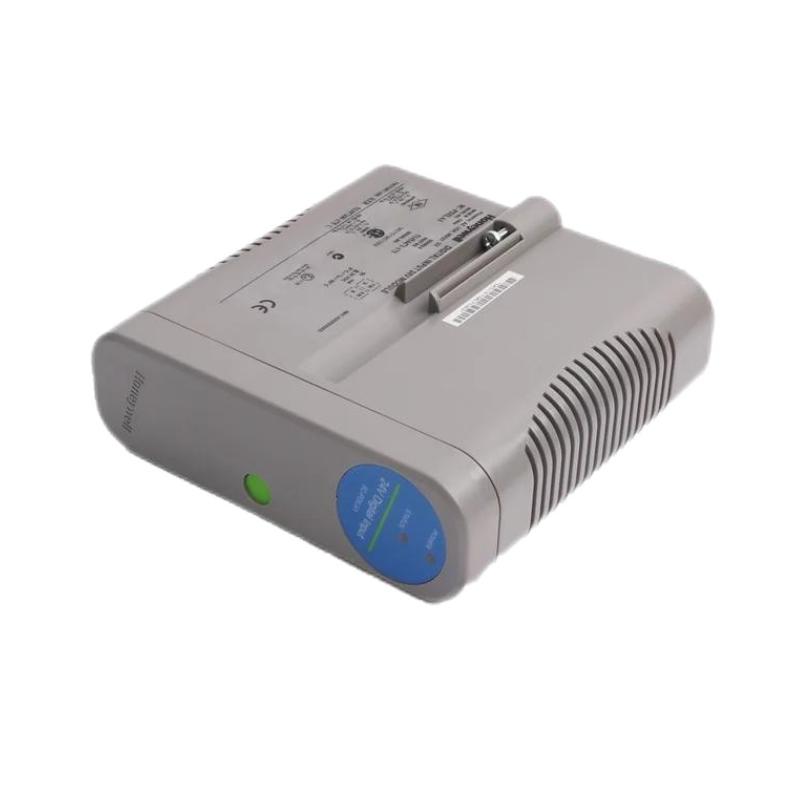

The Honeywell 8C-PDIL51 51454359-175 is a digital input module designed for the Experion PKS and C300 controller family. It interfaces with discrete field devices such as switches, sensors, and relays, converting digital signals into logic-level data for reliable monitoring and control within industrial automation systems.

General Information

• Part Number: 51454359-175

• Manufacturer: Honeywell

• Product Model: 8C-PDIL51

• Series: Experion PKS / C300 Series

• Module Type: Digital Input Module

• Country of Origin: United States

• Mounting: Plug-in module for C300 system chassis

Power Specifications

• Supply Voltage: 24 V DC nominal (from controller backplane)

• Power Consumption: ≤ 6 W

• Input Source: Powered through backplane connection

• Protection: Surge and reverse-polarity protection

• Indicators: LEDs for module power, channel status, and fault

Communication & Interface

• Communication Protocol: FIM (Fieldbus Interface Module) via C300 system bus

• Input Type: Digital (discrete) input

• Channels: 32 isolated input channels

• Input Voltage Range: 18–32 V DC

• Diagnostics: Channel fault detection and status indication

• Configuration: Managed through Honeywell Control Builder software

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for cabinet-mounted use)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112.5 mm

• Weight: ~0.3 kg

 All products are original, new, and ready for immediate shipment.
