Overview

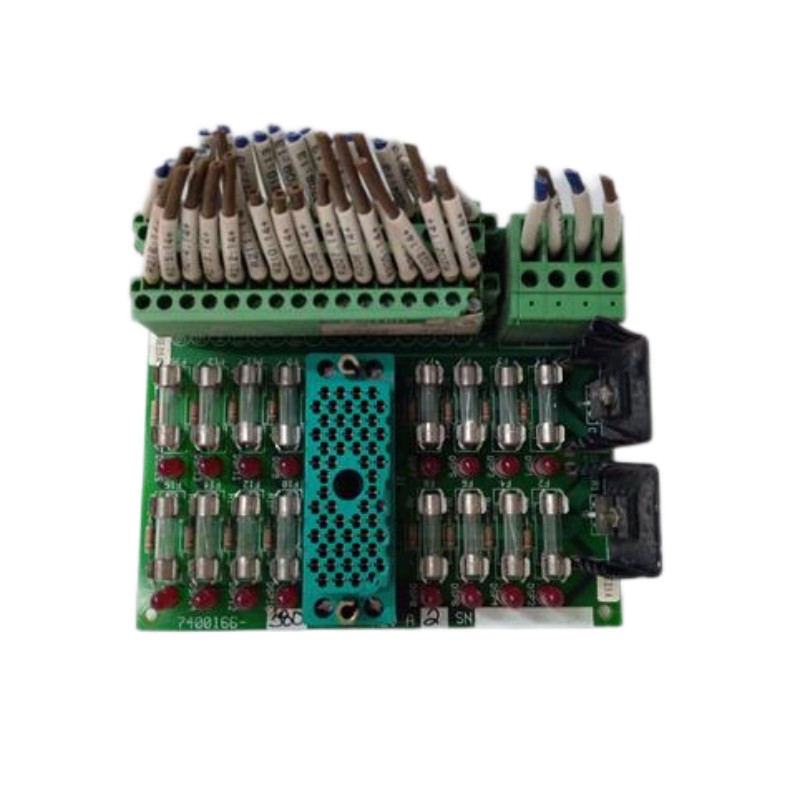

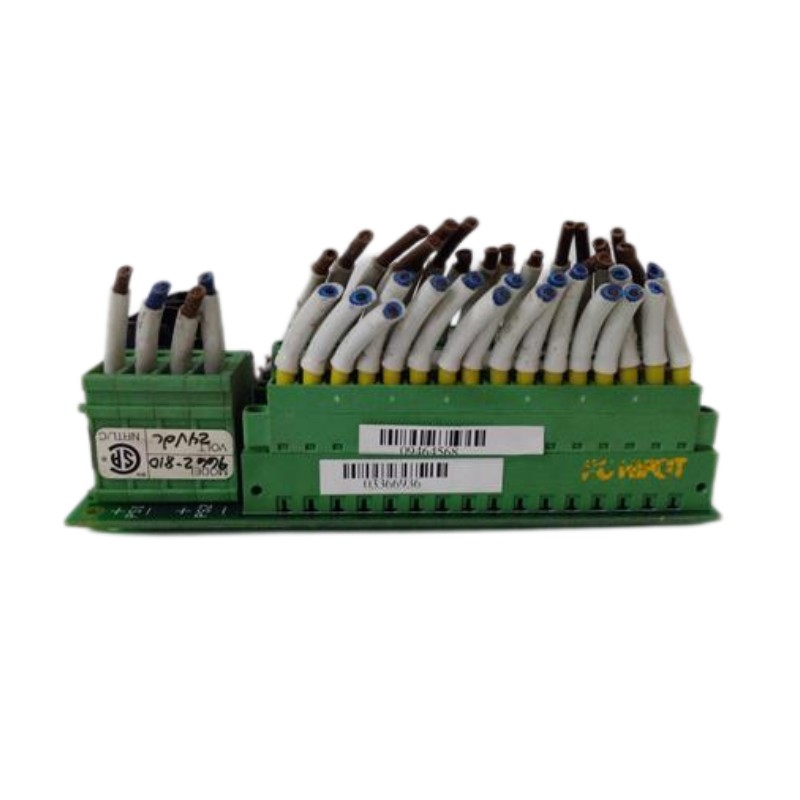

The Triconex 9662-810 (3000520-380) is a 16-point digital input termination panel designed for Triconex safety instrumented systems (SIS). It provides a reliable interface for connecting field digital input signals to Triconex controllers, ensuring safe and efficient operation in industrial automation environments.
General Information
Part Number: 9662-810 / 3000520-380
Manufacturer: Triconex
Brand / Country of Origin: Triconex / USA
Type: Digital Input Termination Panel
Compatibility: Triconex 24 VDC digital input modules
Number of Points: 16
Mounting: Panel-mounted
Power Specifications
Input Voltage: 24 V DC
Maximum Total Current: 16 A
Input Terminals: 16
Power Distribution: Commoned power terminals (PWR+ and PWR–)
Communication & Interface
Interface: Direct connection to Triconex digital input modules
Signal Type: Digital input
Isolation: Internal panel design for safe operation
Environmental
Operating Temperature: 0 °C to 60 °C
Storage Temperature: –40 °C to 85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Dimensions & Weight
Dimensions (L × W × H): 127 × 114 × 108 mm (approx.)
Weight: 1.1 kg (approx.)
