Overview

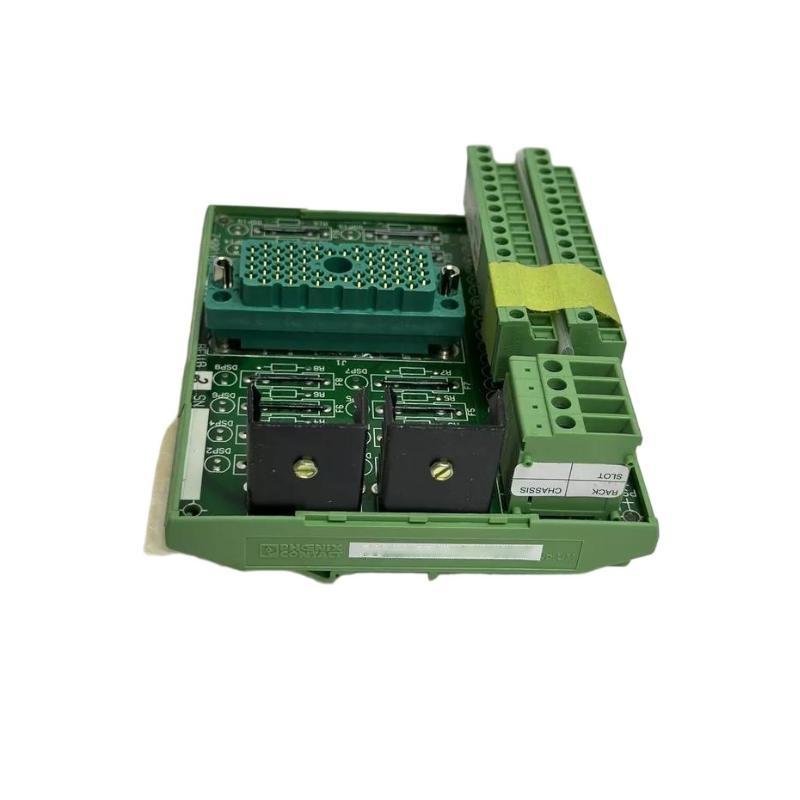

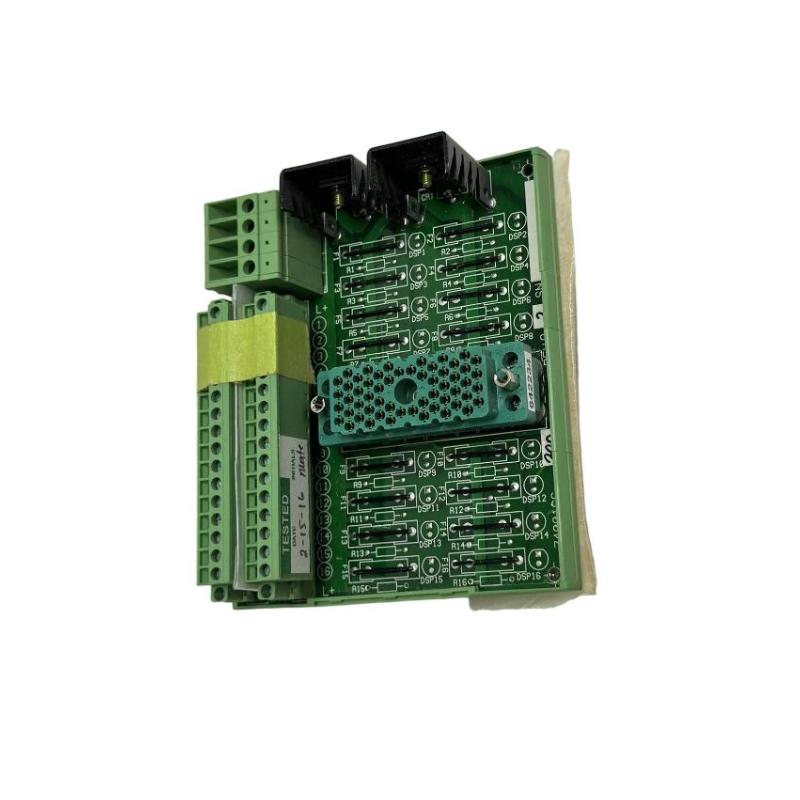

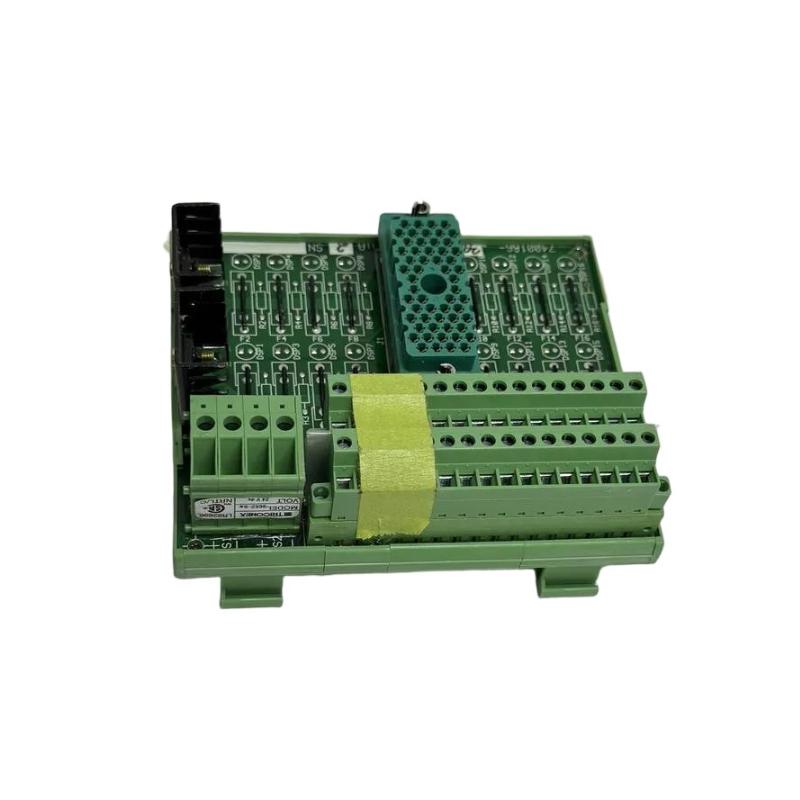

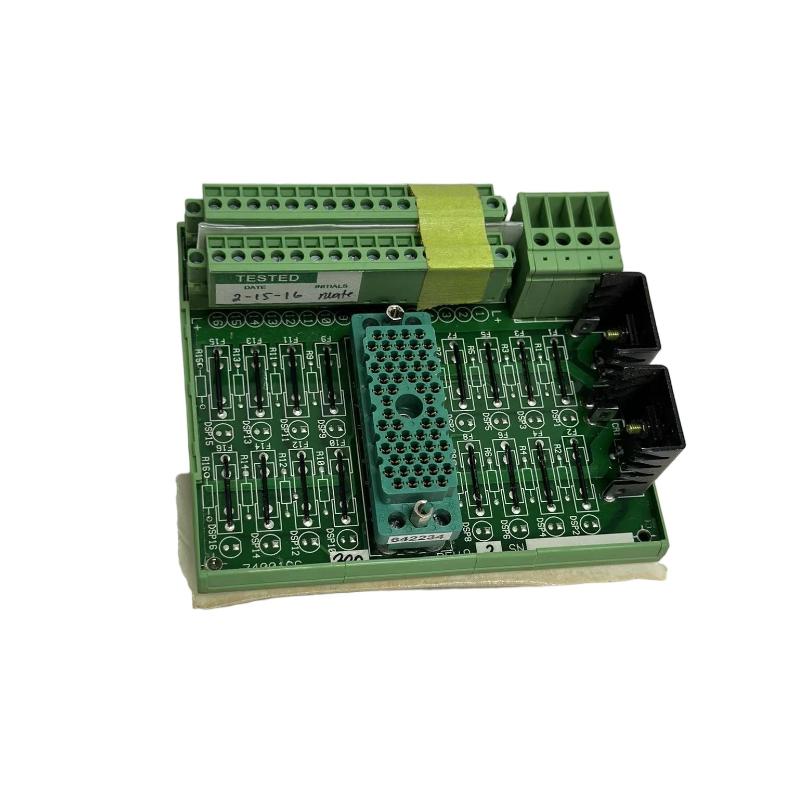

The Triconex 9662-820 is a 16-point digital input termination panel with LED indicators designed for Triconex safety instrumented systems (SIS). It allows safe and reliable connection of field input devices to Triconex controllers while providing visual status indication for each input channel.
General Information
Part Number: 9662-820
Manufacturer: Triconex
Brand / Country of Origin: Triconex / USA
Type: Digital Input Termination Panel with LED Indicators
Compatibility: Triconex 24 VDC digital input modules
Number of Points: 16
Mounting: Panel-mounted
Power Specifications
Input Voltage: 24 V DC
Maximum Total Current: 16 A
Input Terminals: 16
LED Indicators: One per input channel for visual status
Communication & Interface
Interface: Direct connection to Triconex digital input modules
Signal Type: Digital input
Isolation: Internal design ensures safe operation
Environmental
Operating Temperature: 0 °C to 60 °C
Storage Temperature: –40 °C to 85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Dimensions & Weight
Dimensions (L × W × H): 127 × 114 × 108 mm (approx.)
Weight: 1.05 kg (approx.)
