Overview

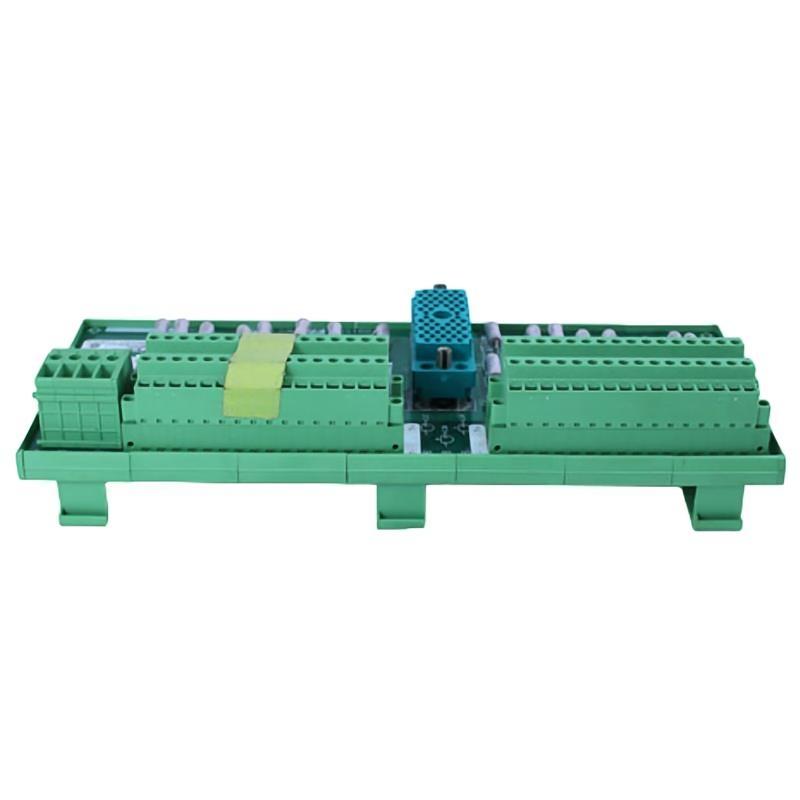

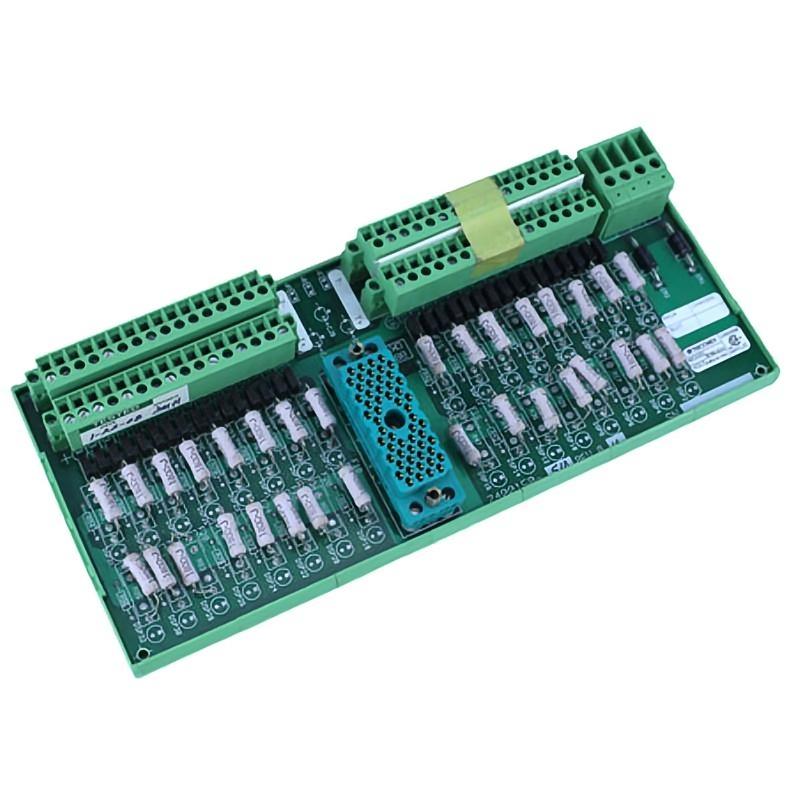

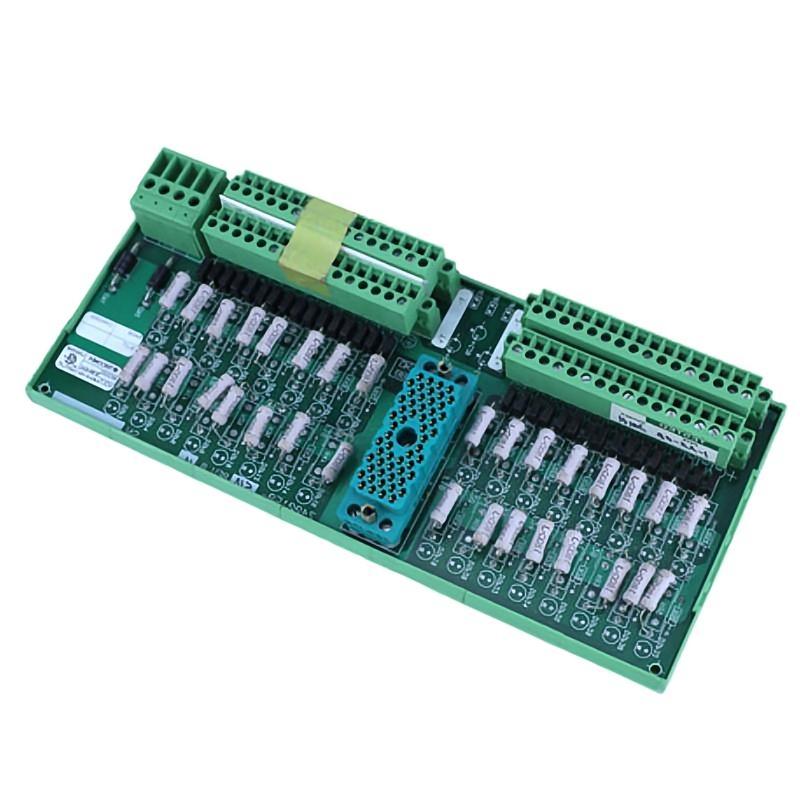

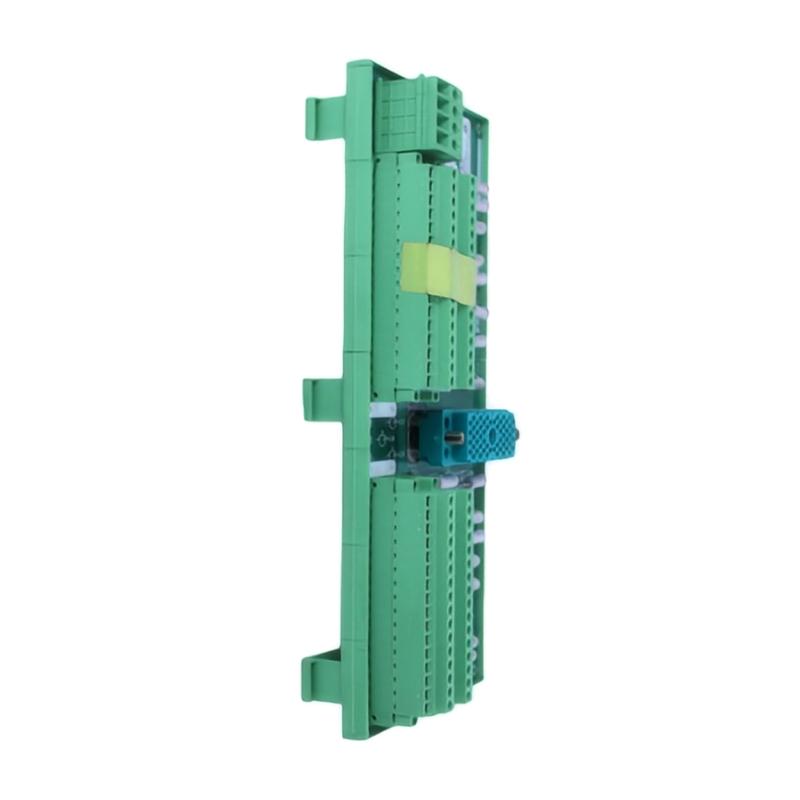

The Triconex 9760-210 is a 32-point analog input termination panel designed for Triconex v9–v10 systems. It is configured for 0–5 VDC analog input signals, providing reliable connections between field devices and Triconex controllers in industrial automation and safety applications.
General Information
Part Number: 9760-210
Manufacturer: Triconex
Brand / Country of Origin: Triconex / USA
Type: Analog Input Termination Panel
Compatibility: Triconex 0–5 VDC analog input modules
Number of Points: 32
Mounting: Panel-mounted
Power Specifications
Input Voltage: 24 V DC
Current Rating: Up to 20 mA per channel
Power Terminals: Commoned power terminals for module operation
Communication & Interface
Interface: Direct connection to Triconex analog input modules
Signal Type: Analog voltage input (0–5 VDC)
Isolation: Internal panel design ensures safe operation
Environmental
Operating Temperature: 0 °C to 60 °C
Storage Temperature: –40 °C to 85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Dimensions & Weight
Dimensions (L × W × H): 300 × 150 × 45 mm (approx.)
Weight: 2.0 kg (approx.)
