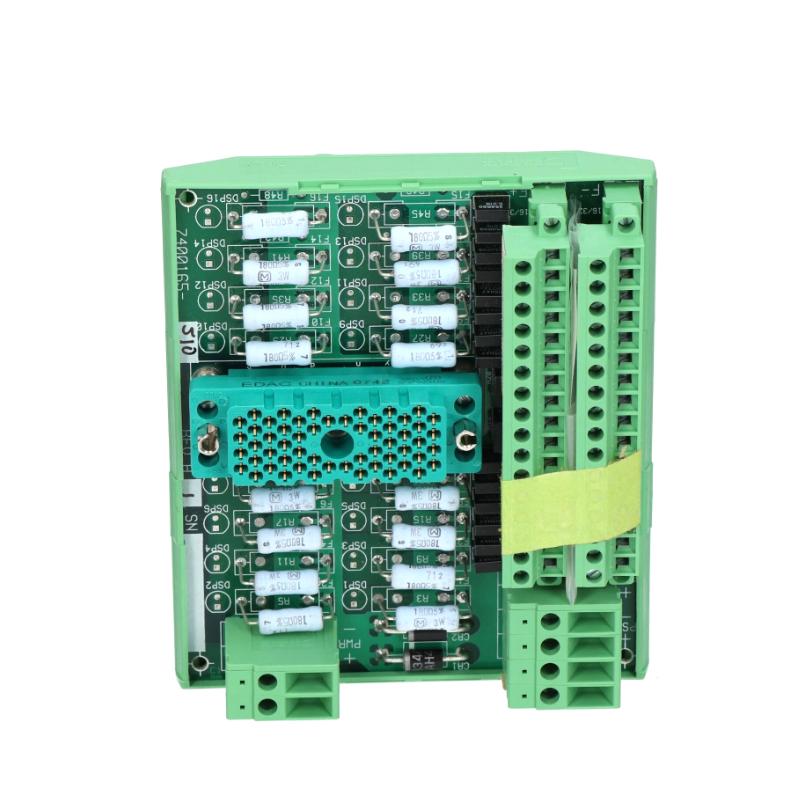

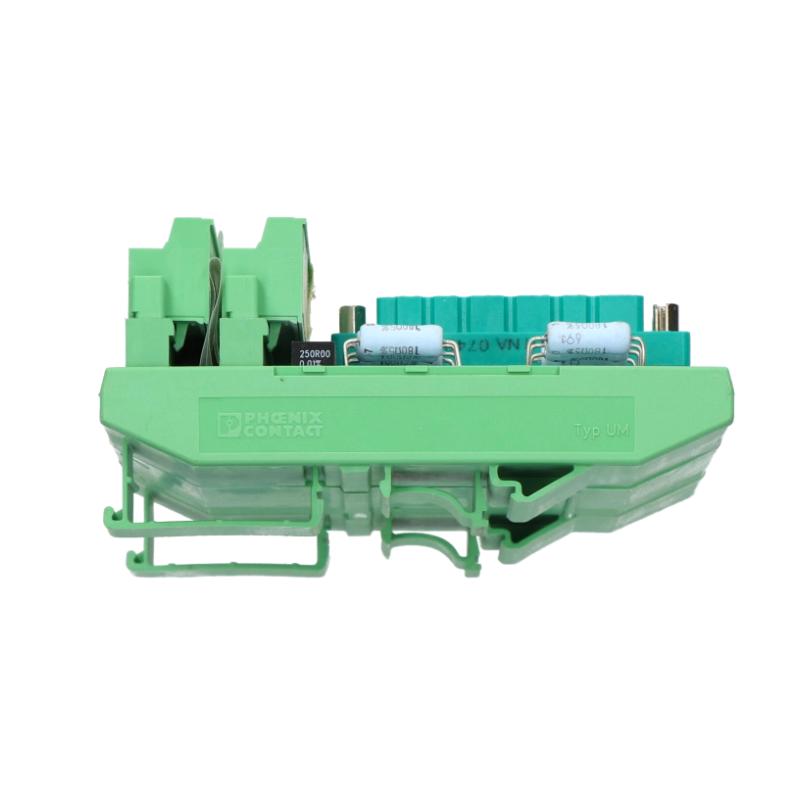

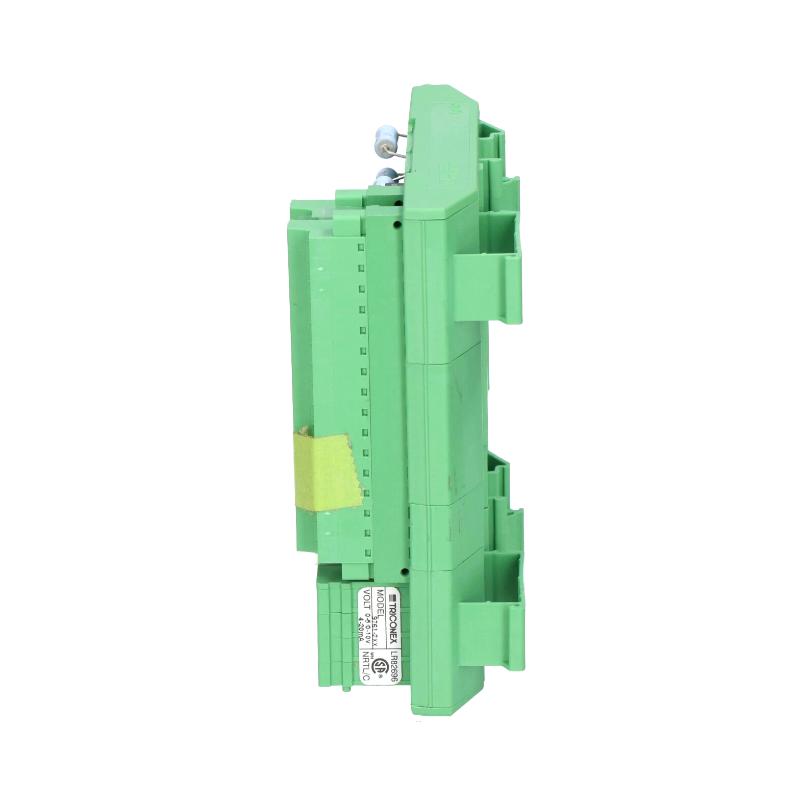

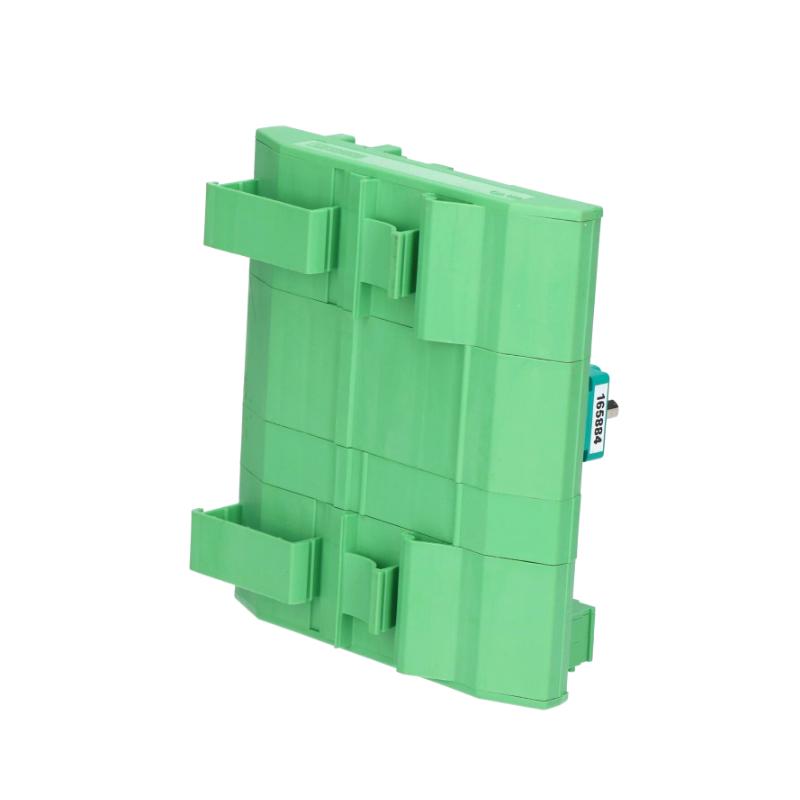

Triconex 9761-210F | 16-Point Current Input Termination Panel 100% New

Overview

The Triconex 9761-210F is a 16-point current input termination panel designed for use with Tricon v9–v10 systems. It is configured for 0–5 VDC and –5 to +5 VDC analog input modules, providing a reliable interface for connecting field current input signals to Triconex controllers in industrial automation environments.

General Information

• Part Number: 9761-210F

• Manufacturer: Triconex

• Brand / Country of Origin: Triconex / USA

• Type: Current Input Termination Panel

• Compatibility: Triconex 0–5 VDC and –5 to +5 VDC analog input modules

• Number of Points: 16

• Mounting: Panel-mounted

Power Specifications

• Input Voltage: 24 V DC

• Current Rating: Up to 20 mA per channel

• Power Supply Connections: Supports redundant 24 VDC sources with diode ORing

Communication & Interface

• Interface: Direct connection to Triconex analog input modules

• Signal Type: Current input

• Resistor Configuration:

• Each positive terminal includes a 180-ohm series resistor

• Each input has a precision 250-ohm resistor for current-to-voltage conversion

Environmental

• Operating Temperature: 0 °C to 60 °C

• Storage Temperature: –40 °C to 85 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20

Dimensions & Weight

• Dimensions (L × W × H): Approximately 124 × 126 × 22 mm

• Weight: Approximately 0.3 kg

Brand-new authentic inventory with fast pricing and professional support.
