Overview

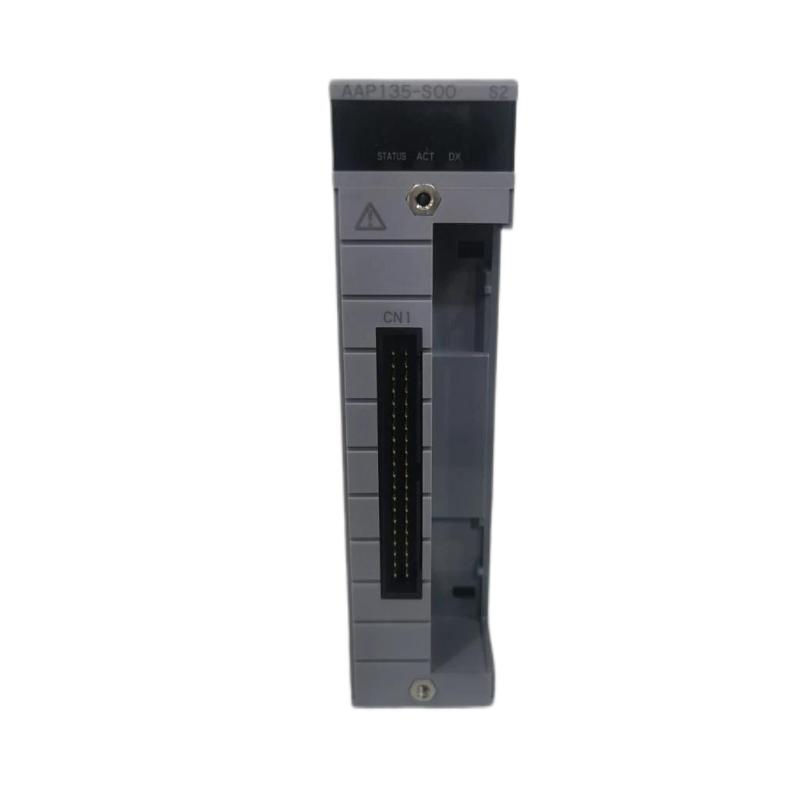

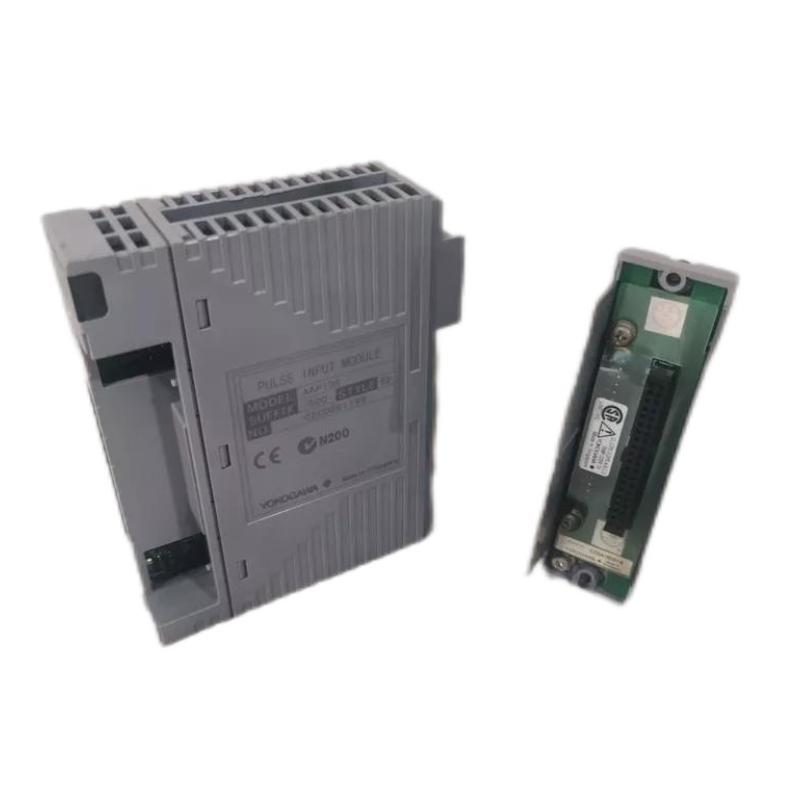

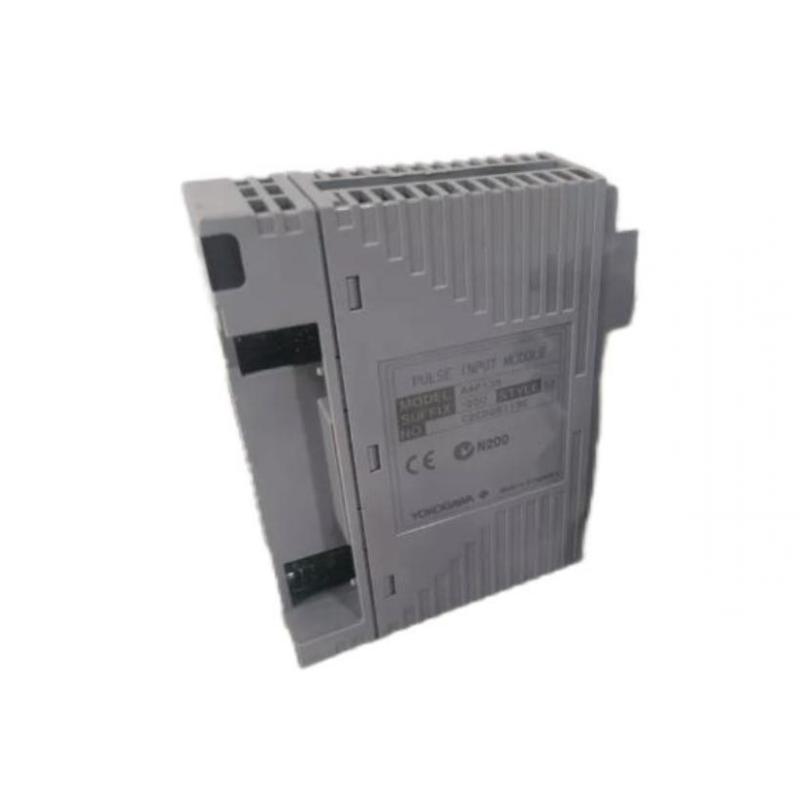

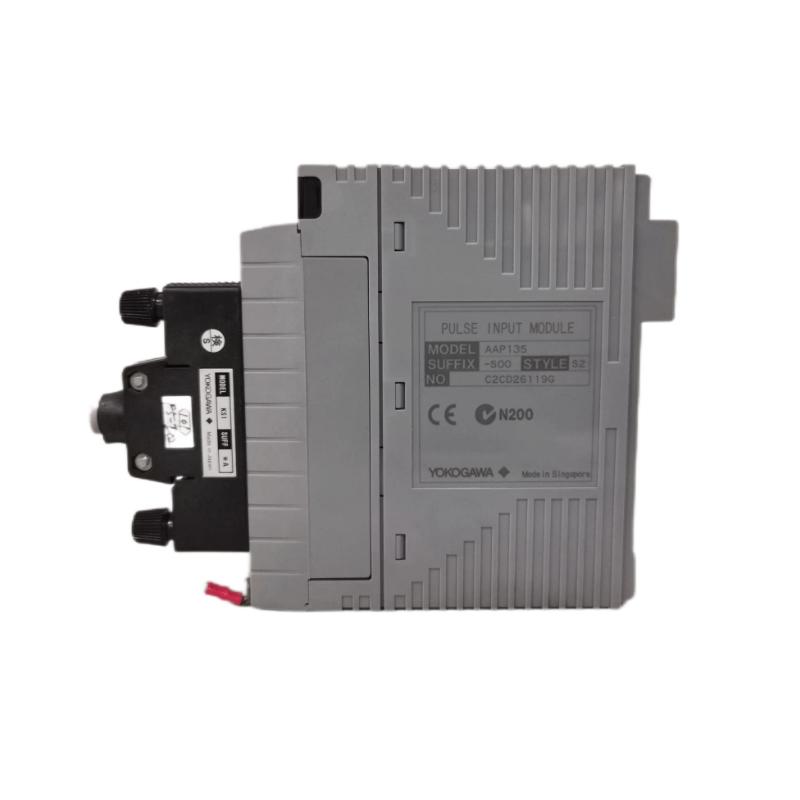

The Yokogawa AAP135-S00 S2 is an analog input/output module designed for use in Yokogawa DCS systems. It accurately interfaces with field devices to read analog signals or provide control outputs, supporting precise process monitoring and automation.
General Information
Brand: Yokogawa
Country of Origin: Japan
Model Number: AAP135-S00 S2
Product Type: Analog Input/Output Module
Application: Industrial process control, signal acquisition, and control for DCS systems
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approx. 3 W
Protection: Reverse polarity and over-voltage protection
Communication & Interface
Interface Type: Input and output channels for analog signals (e.g., 4–20 mA, 0–10 V)
Connectivity: Connects to Yokogawa DCS backplane
Diagnostics: LED indicators for module status and fault detection
Environmental
Operating Temperature: 0 to +55 °C
Humidity: Up to 95% RH, non-condensing
Installation: Mounted in control cabinets or DCS racks
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 32.8 × 130 mm
Weight: 0.3 kg
