Overview

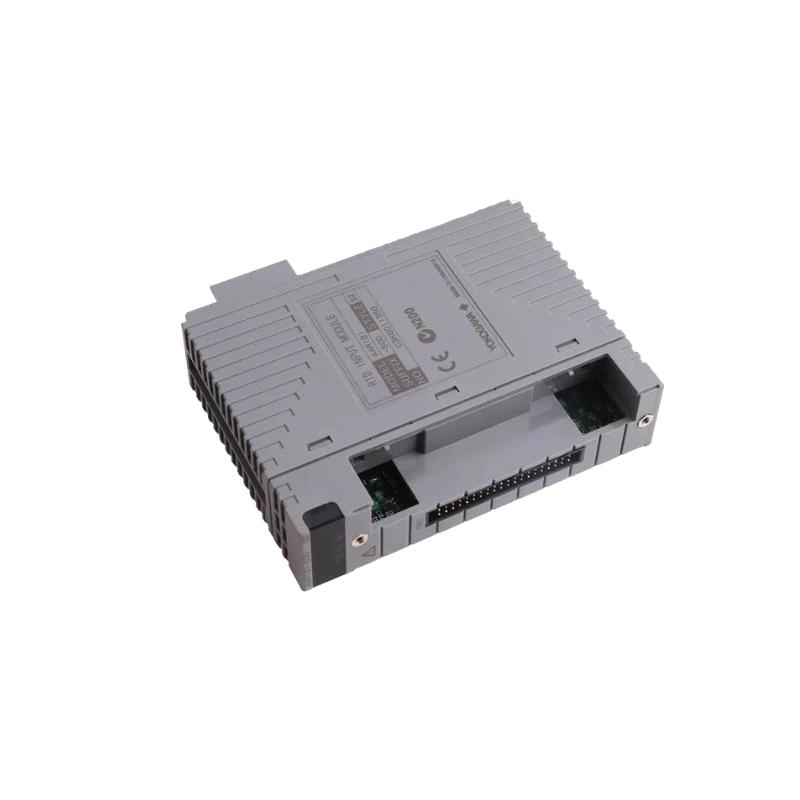

The Yokogawa AAP135-S00/K4A00 is an analog input/output module designed for Yokogawa DCS systems. It facilitates accurate reading of analog signals and provides precise control outputs for process automation and monitoring.
General Information
Brand: Yokogawa
Country of Origin: Japan
Model Number: AAP135-S00/K4A00
Product Type: Analog Input/Output Module
Application: Industrial process control, signal acquisition, and automated system management
Power Specifications
Supply Voltage: 24 V DC nominal
Power Consumption: Approx. 3 W
Protection: Reverse polarity and over-voltage protection
Communication & Interface
Interface Type: Input and output channels for analog signals (e.g., 4–20 mA, 0–10 V)
Connectivity: Connects to Yokogawa DCS backplane
Diagnostics: LED indicators for module status and fault detection
Environmental
Operating Temperature: 0 to +55 °C
Humidity: Up to 95% RH, non-condensing
Installation: Mounted in control cabinets or DCS racks
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 32.8 × 130 mm
Weight: 0.3 kg
