Overview

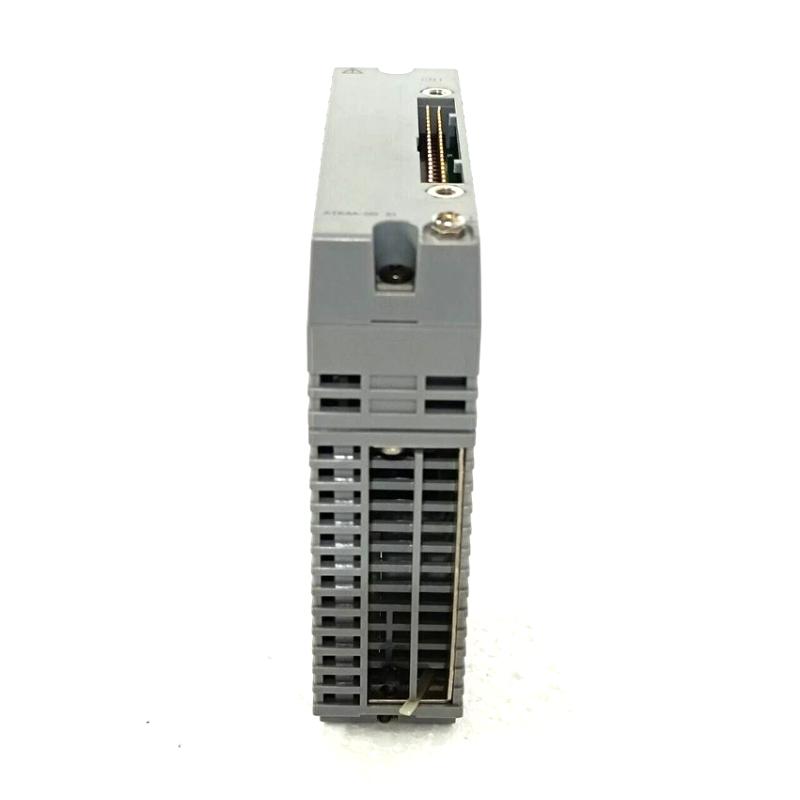

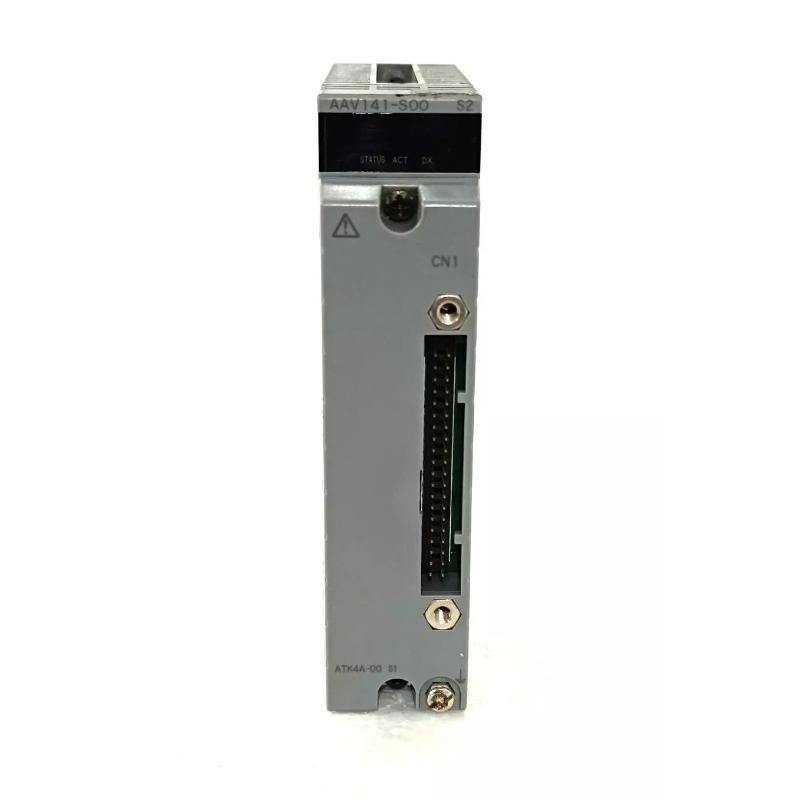

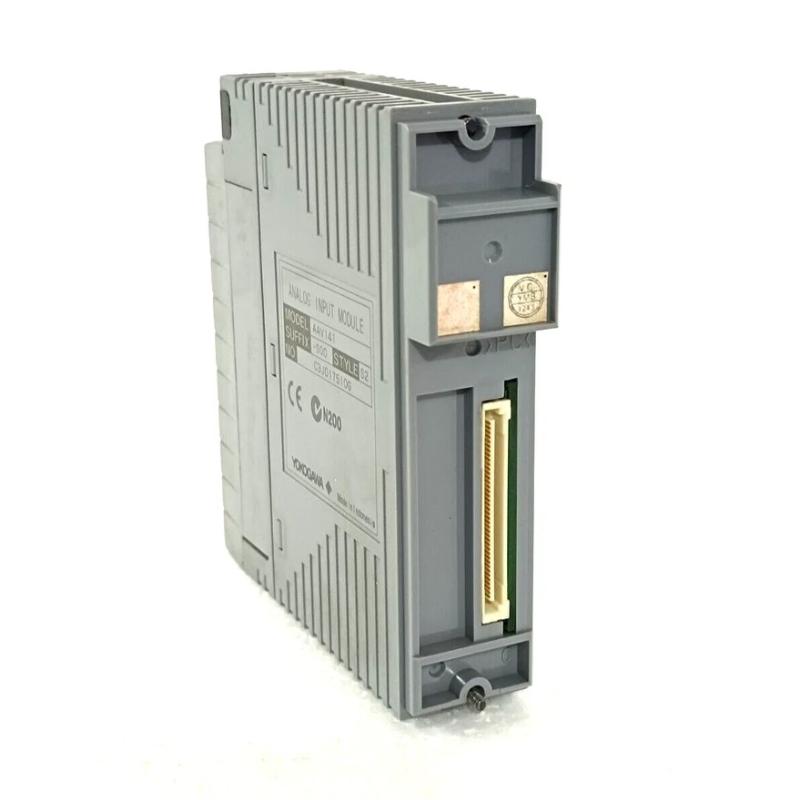

The Yokogawa AAV141‑S00 is a 16‑channel non‑isolated analog input module designed for industrial automation systems. It supports standard current and voltage inputs, enabling cost‑effective signal acquisition in process control applications.
General Information
Part Number: AAV141‑S00
Brand / Country of Origin: Yokogawa / Japan
Product Type: Analog Input Module
Series: AAV141
Power Specifications
Supply Voltage: Module powered through system backplane
Input Signal Types: 1–5 V voltage or 4–20 mA current
Typical Current Draw: 350 mA at 5 V DC
Communication & Interface
Interface Type: Rack‑mounted backplane connection within Yokogawa I/O system
Channels: 16 non‑isolated analog input channels
Diagnostics: Channel‑fault detection and status monitoring supported
Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed in enclosure
Dimensions & Weight
Dimensions (L × W × H): 32.8 × 130 × 107.5 mm
Weight: Approx. 0.20 kg
