Overview

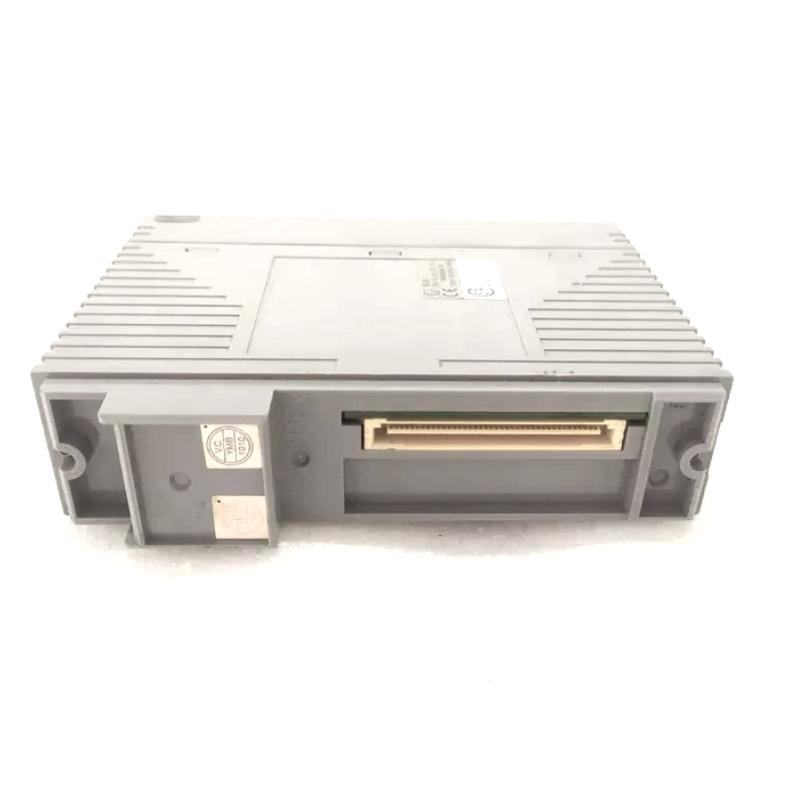

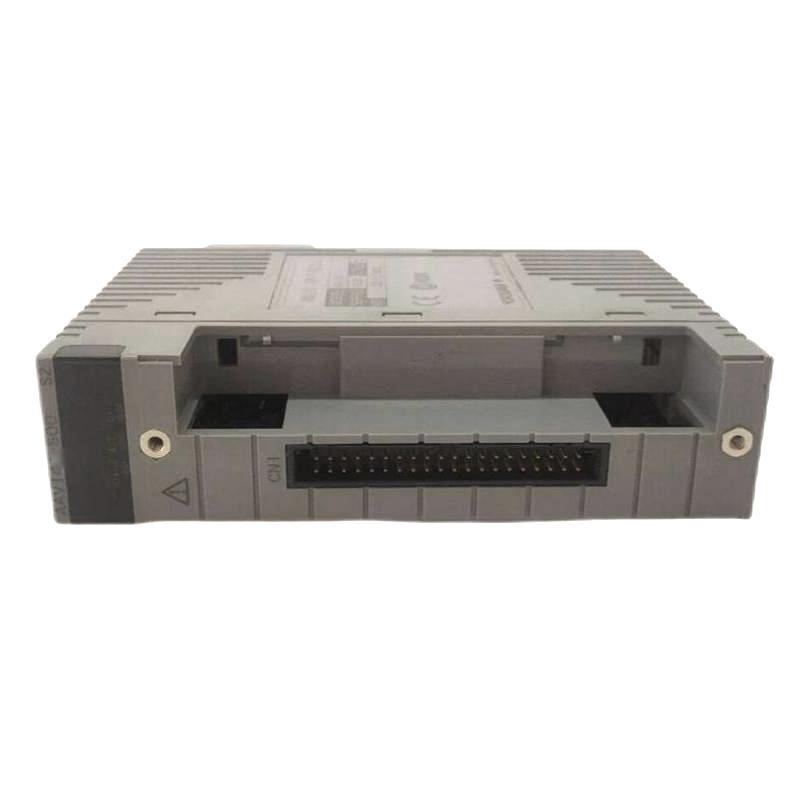

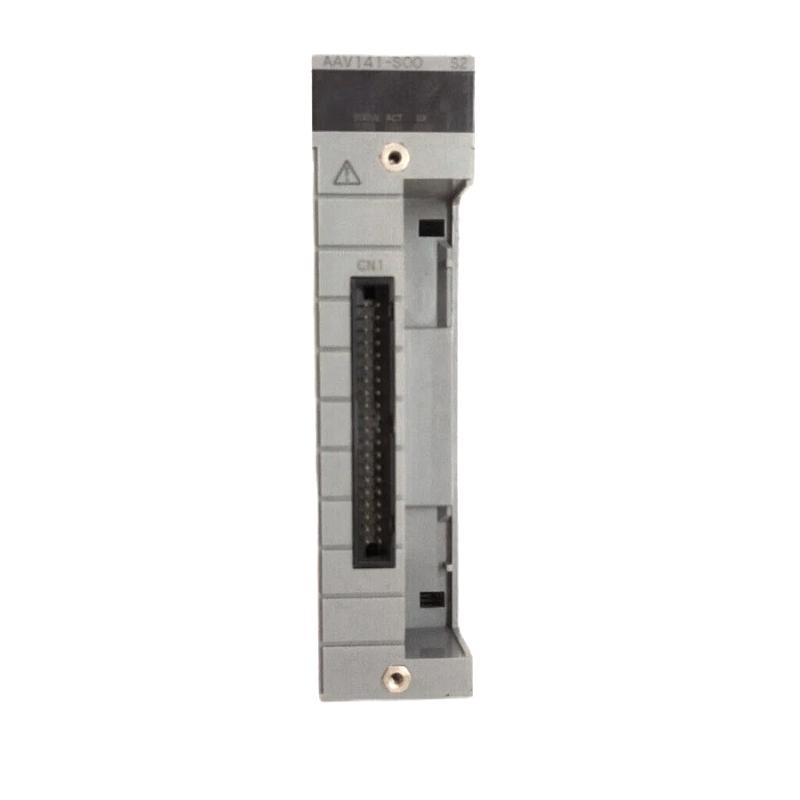

The Yokogawa AAV142‑S00 is a 16‑channel non‑isolated analog input module that handles a wide voltage range from –10 V to +10 V DC. It is designed for efficient signal acquisition and monitoring in distributed control systems.
General Information
Part Number: AAV142‑S00
Brand / Country of Origin: Yokogawa / Japan
Product Type: Analog Input Module
Series: AAV142
Power Specifications
Supply Voltage: Supplied via system rack backplane
Current Consumption: Approx. 350 mA at 5 V DC
Input Signal Type: –10 to +10 V DC voltage inputs on 16 channels
Channel Isolation: Non‑isolated design for cost‑efficient applications
Communication & Interface
Interface Type: Rack‑mounted backplane module
Signal Connections: 16 analog input channels, direct wiring compatible
Diagnostics: Channel health monitoring and basic fault detection
Compatibility: Works with Yokogawa field I/O racks and supports non‑redundant installations
Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed inside enclosed cabinet
Dimensions & Weight
Dimensions (L × W × H): 32.8 × 130 × 107.5 mm
Weight: Approx. 0.20 kg
