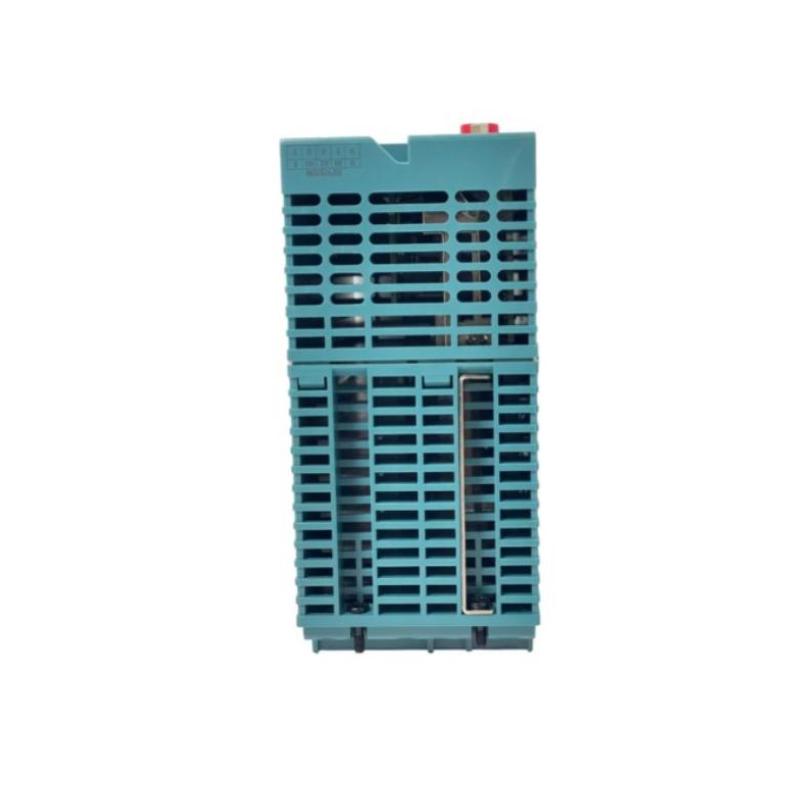

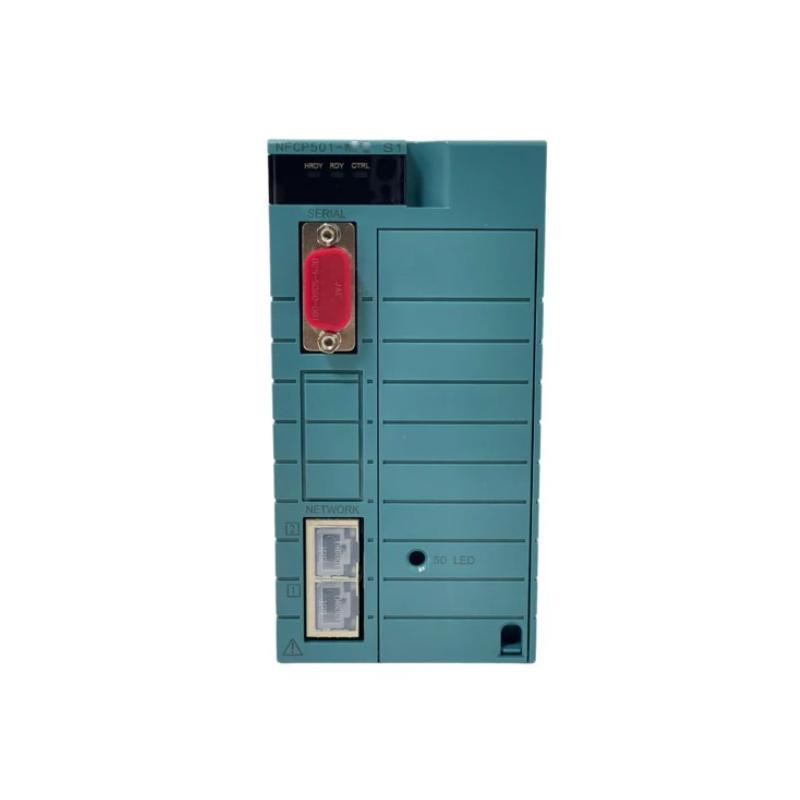

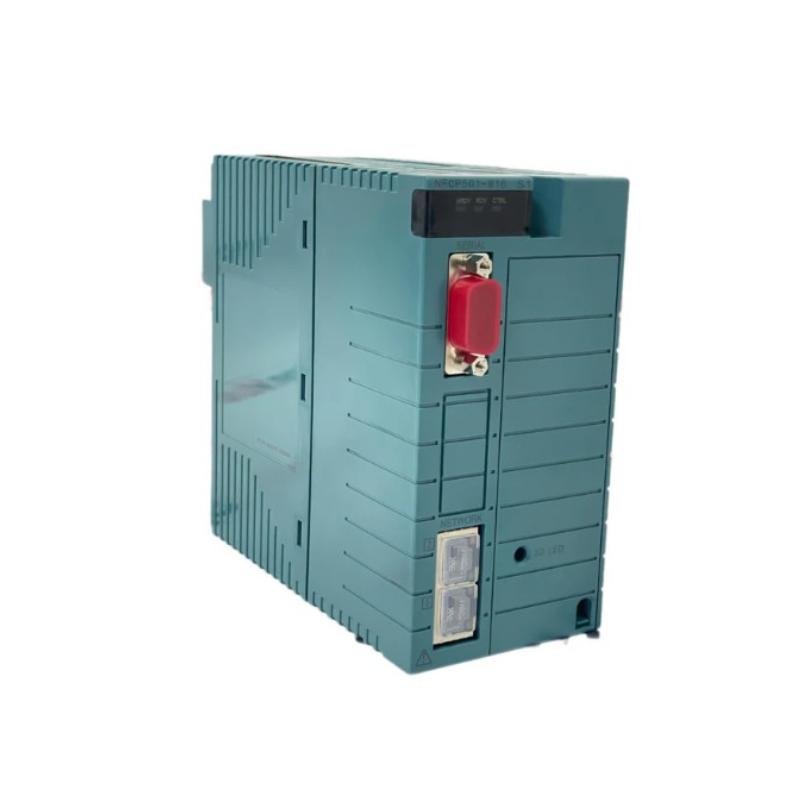

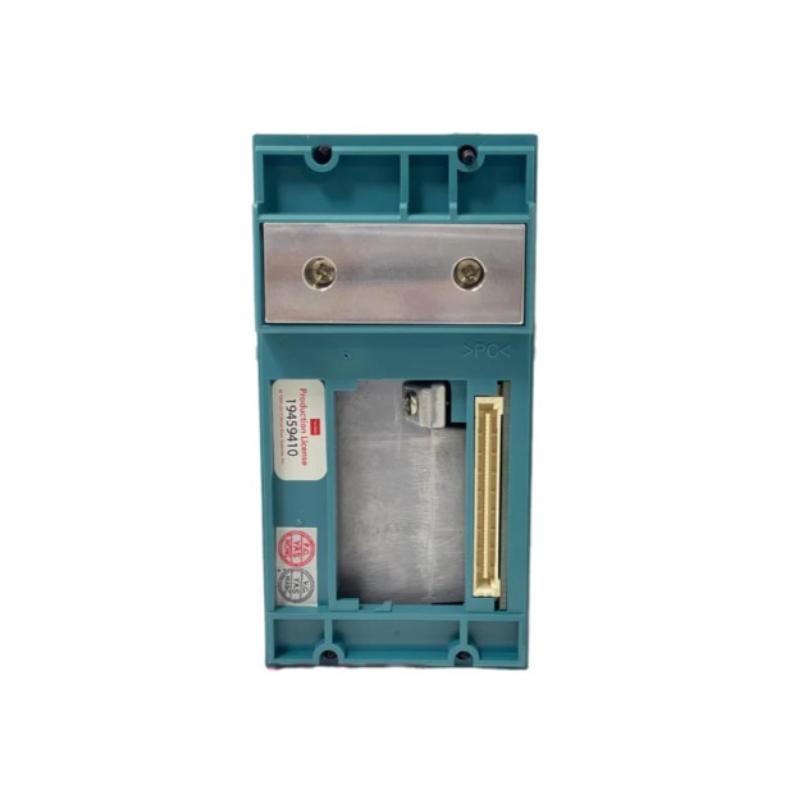

Yokogawa NFCP501-W15 | CPU Module for FCN-500 Series New In Stock

Overview
The Yokogawa NFCP501-W15 is a CPU module designed for the FCN-500 autonomous controller series. It delivers high-performance processing and robust connectivity with two Ethernet ports, making it suitable for demanding industrial automation applications requiring extended functions and reliability.

General Information
Part Number: NFCP501-W15
Manufacturer: Yokogawa
Series: FCN-500
Type: CPU Module (Extended Function)
Mounting: Rack or panel installation in FCN-500 system
Core Connectivity: Dual Ethernet ports + serial interface
Country of Origin: Japan

Power Specifications
Supply Voltage: 5 V DC ±5%
Maximum Current Consumption: ~1200 mA at 5 V DC
Protection: Overvoltage, reverse-polarity protection, and CPU self-diagnostics

Communication & Interface
Ethernet Ports: 2 × RJ-45 (1000/100/10 Mbps)
Serial Port: 1 × RS-232-C
Data & Processing: Intel Atom E3815 1.46 GHz processor, 256 MB ECC main memory, 2 MB battery-backed static RAM, 1 GB onboard flash memory
Diagnostics: LED indicators for CPU status, network link/activity, SD card access
Redundancy: Supports duplex CPU configuration for high availability

Environmental
Operating Temperature: −40 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP20, designed for installation in industrial control cabinets

Dimensions & Weight

Dimensions: 65.8 x 130 x 149.3 mm

Weight: 0.9 kg

Brand-new authentic inventory, always ready, and supported by 24-hour customer care.
