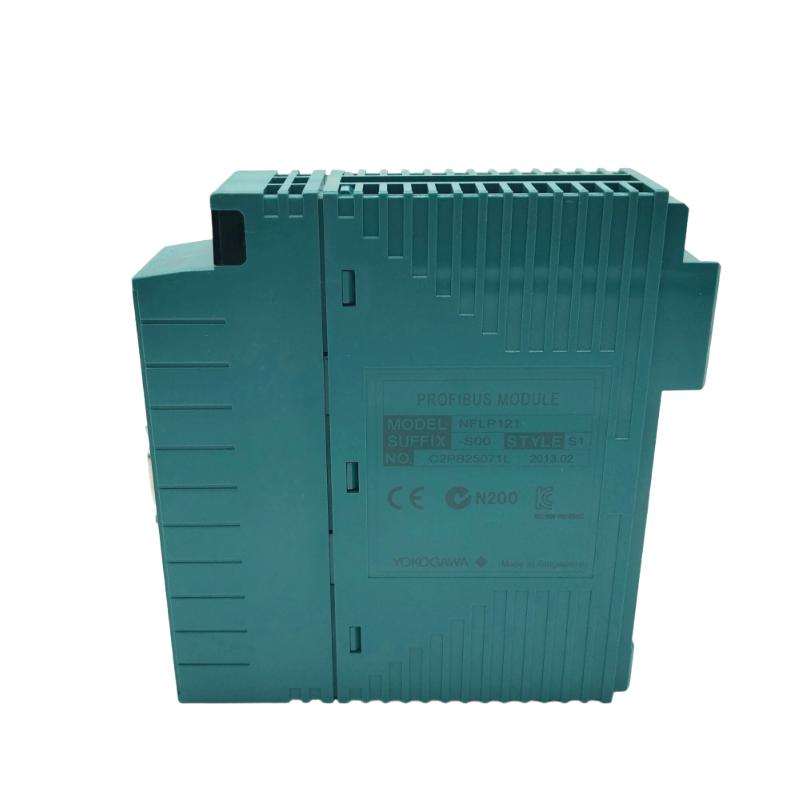

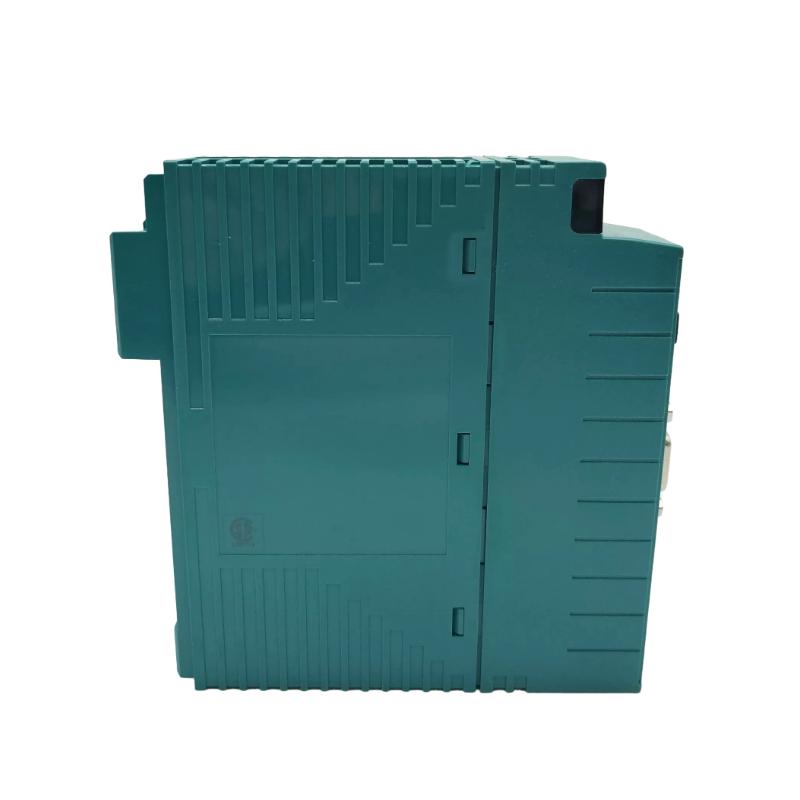

Yokogawa NFLP121-S00 | PROFIBUS-DP Communication Module Hot Items

Overview
The Yokogawa NFLP121-S00 is a PROFIBUS-DP master communication module designed for the FCN series controllers, including the FCN-100 and FCN-500. It enables high-speed and reliable data communication between the controller and PROFIBUS slave devices, ensuring stable network performance and effective distributed control in industrial automation environments.

General Information

• Model Number: NFLP121-S00

• Manufacturer: Yokogawa

• Series: NFLP (Fieldbus Communication Module)

• Function: PROFIBUS-DP Master Communication

• Mounting Type: Plug-in module for FCN base

• Compatibility: FCN-100 / FCN-500 controllers

• Country of Origin: Japan

Power Specifications

• Power Supply Voltage: 5 V DC

• Maximum Current Consumption: 700 mA

• Power Isolation: Signal and system isolation provided

• Power Type: Supplied via FCN base unit

Communication & Interface

• Communication Protocol: PROFIBUS-DP (DP-V0 / DP-V1)

• Interface Type: RS-485 compliant

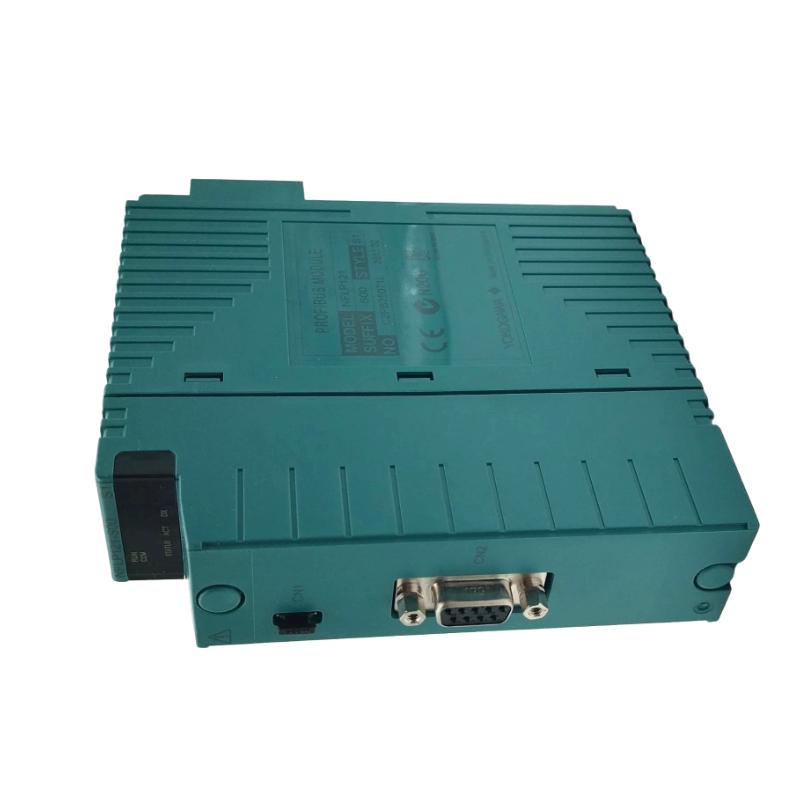

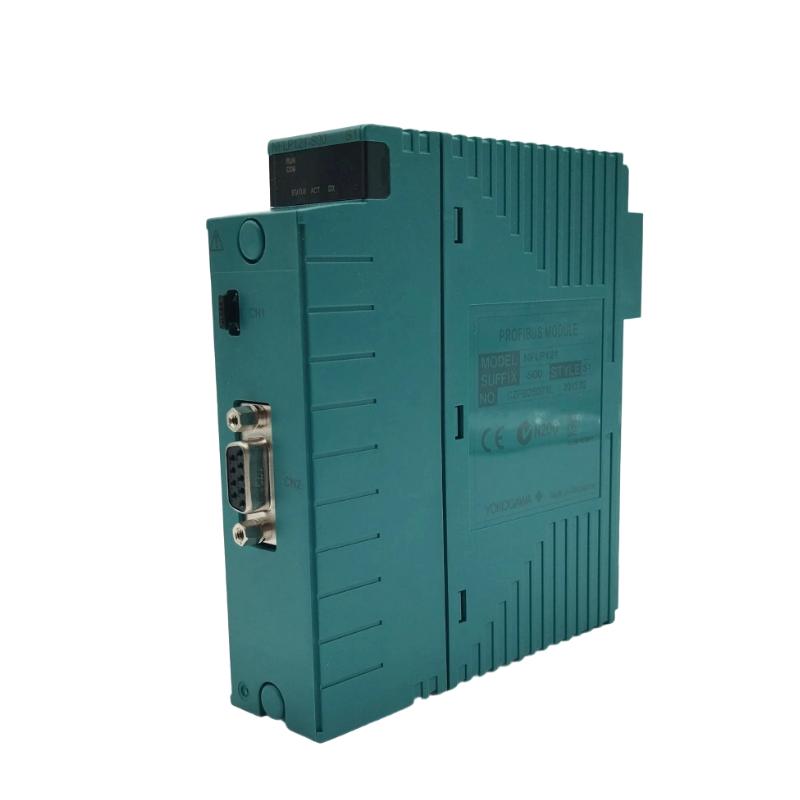

• Connector: D-Sub 9-pin female

• Transmission Rate: 9.6 kbps to 12 Mbps

• Supported Devices: Up to 31 slaves without repeaters; 123 with repeaters

• Indicators: RUN and COM LEDs for status and communication diagnostics

Environmental

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: −20 °C to +70 °C

• Humidity: 5% to 95% RH (non-condensing)

• Protection Rating: IP20 (for cabinet installation)

Dimensions & Weight

Dimensions: 130.5 x 121 x 32.8 mm
Weight: 0.3 kg
