Overview

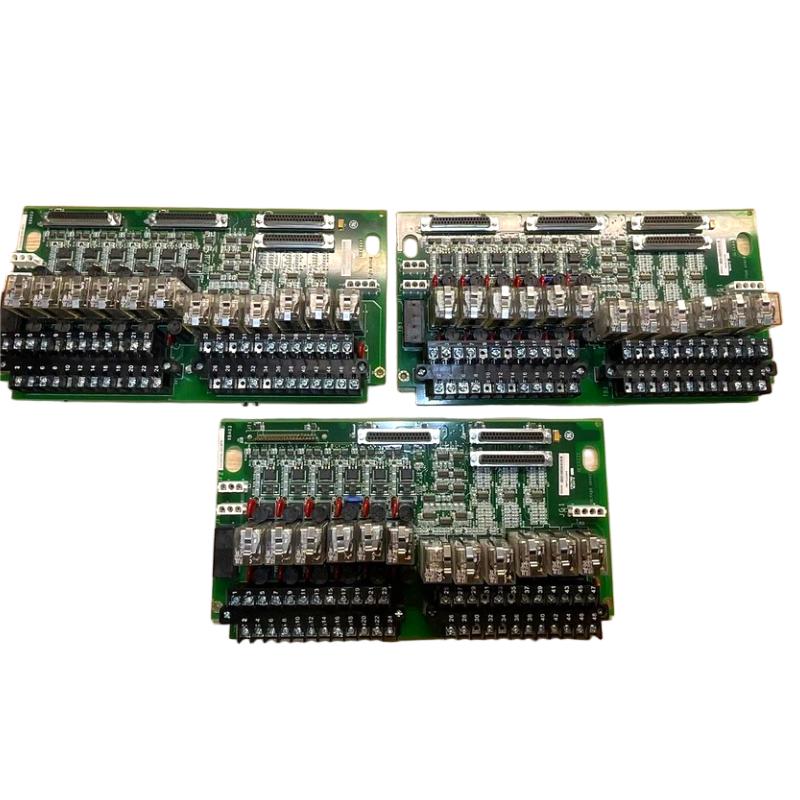

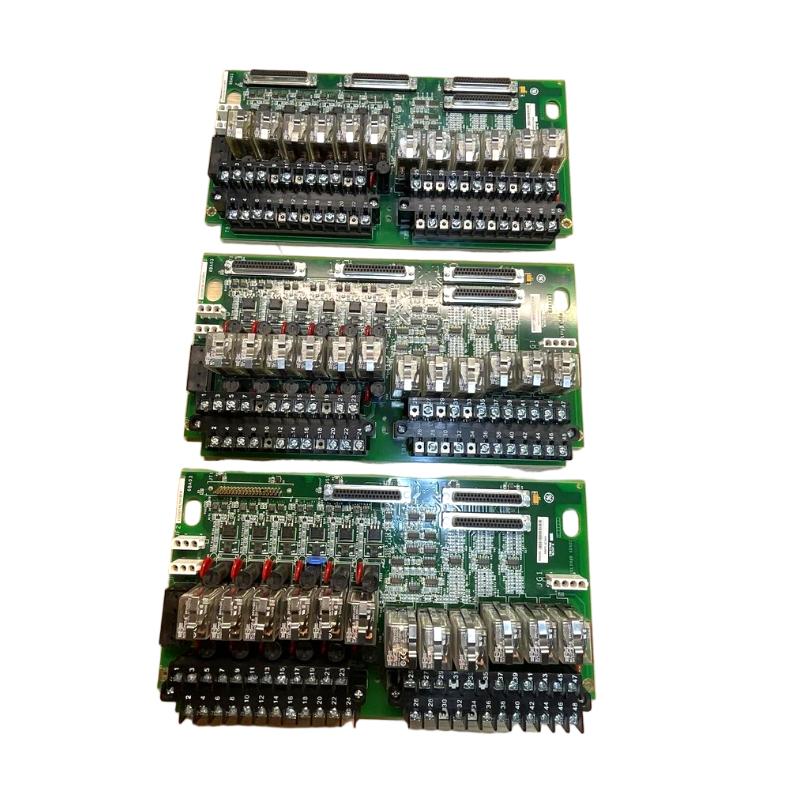

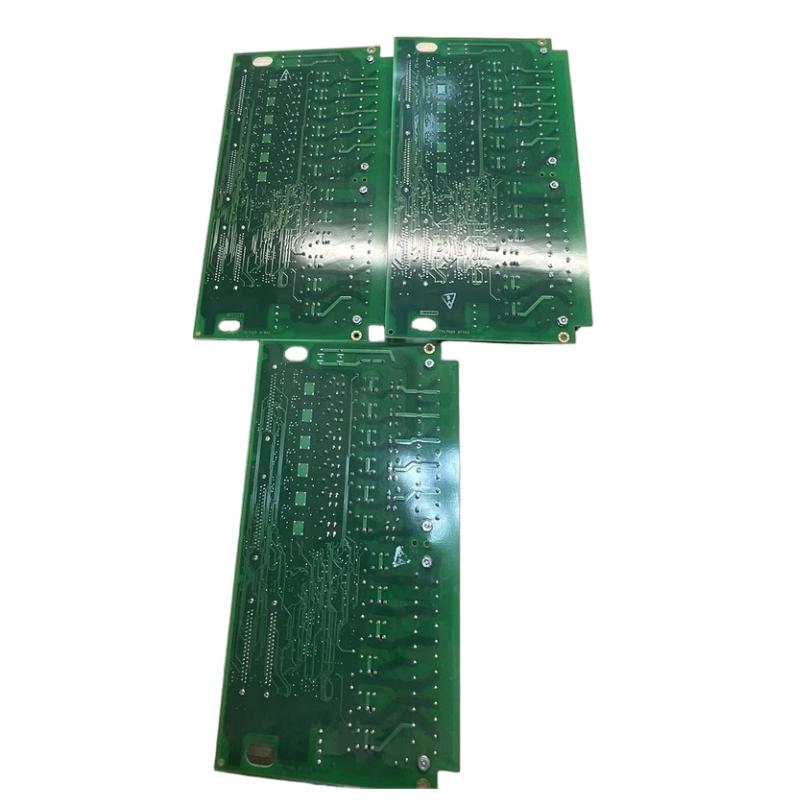

The GE IS200TRLYH1BFD is a relay output terminal board designed for the GE Mark VI control system. It provides a reliable interface for relay outputs, allowing the controller to switch external devices safely and accurately. This board is suitable for industrial automation and turbine control applications where robust relay operation is required.
General Information
Brand: GE (General Electric)
Country of Origin: United States
Part Number: IS200TRLYH1BFD
Series: Mark VI Control System
Type: Relay Output Terminal Board
Function: Relay output interface and signal routing
Mounting: Rack or chassis-mounted within the control cabinet
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 12 W
Input Source: From control backplane
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power and relay status
Communication & Interface
Interface Type: Relay output interface
Signal Type: Discrete relay outputs
Connection: Backplane or ribbon cable to controller modules
Function: Controls external devices via relay switching from the controller
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Industrial control cabinet
Dimensions & Weight
Dimensions: 330.2 × 178 mm
Weight: 1.22 kg
