Overview

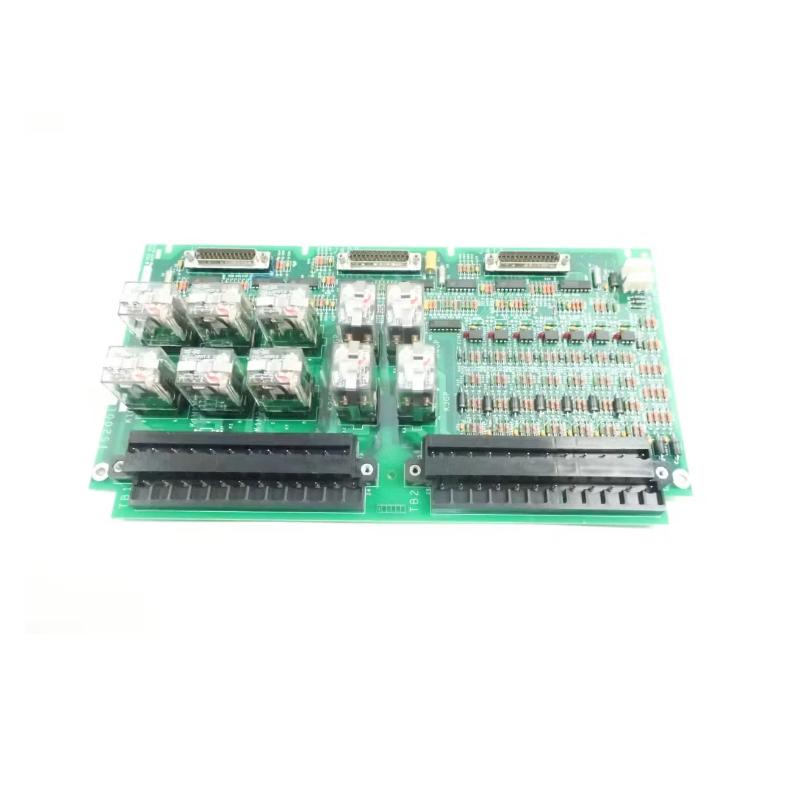

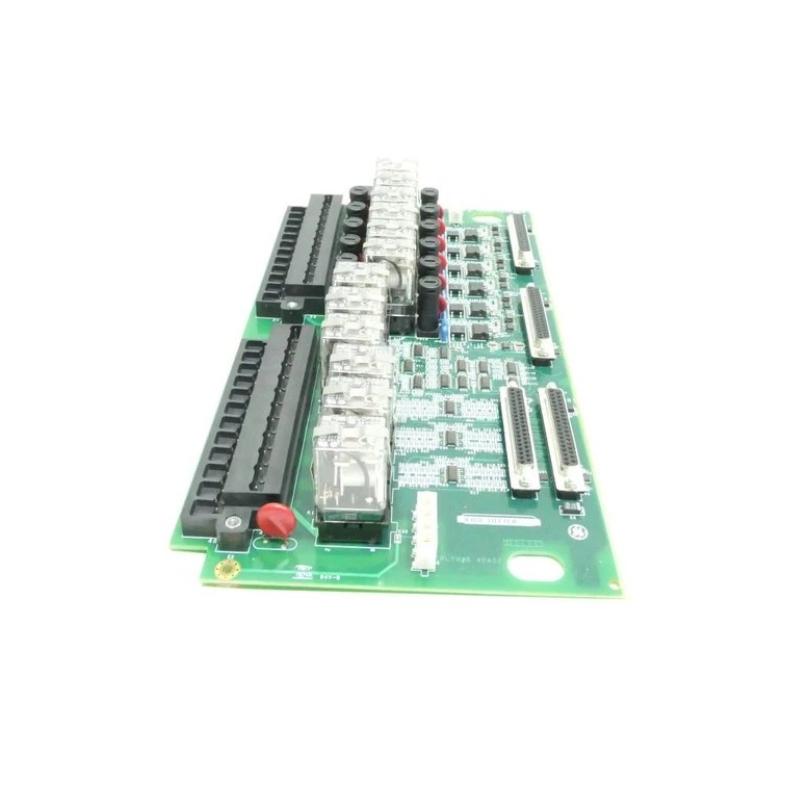

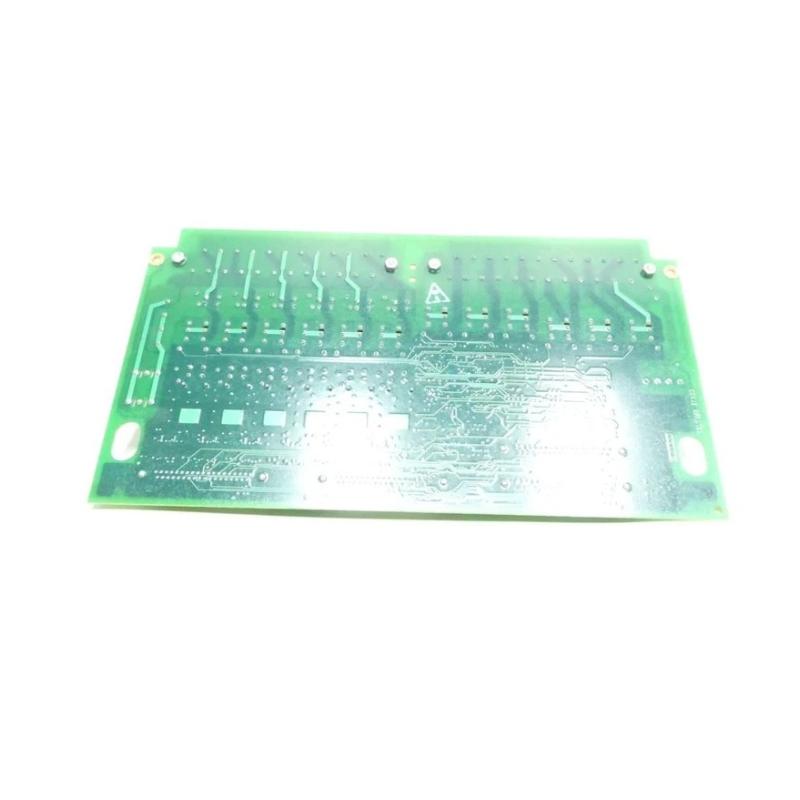

The GE IS200TRLYH1BED is a termination relay board used in the GE Mark VI control system. It provides a reliable interface for relay outputs, ensuring safe and accurate signal termination and distribution between the controller and external devices. This board is ideal for turbine control and industrial automation applications requiring robust relay operation.
General Information
Brand: GE (General Electric)
Country of Origin: United States
Part Number: IS200TRLYH1BED
Series: Mark VI Control System
Type: Termination Relay Board
Function: Relay output termination and signal routing
Mounting: Rack or chassis-mounted within the control cabinet
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 12 W
Input Source: From control backplane
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power and relay status
Communication & Interface
Interface Type: Relay output interface
Signal Type: Discrete relay outputs
Connection: Backplane or ribbon cable to controller modules
Function: Provides termination and safe distribution of relay signals to external devices
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Industrial control cabinet
Dimensions & Weight
Dimensions: 330.2 × 178 mm
Weight: Approx. 1.2 kg
