Overview

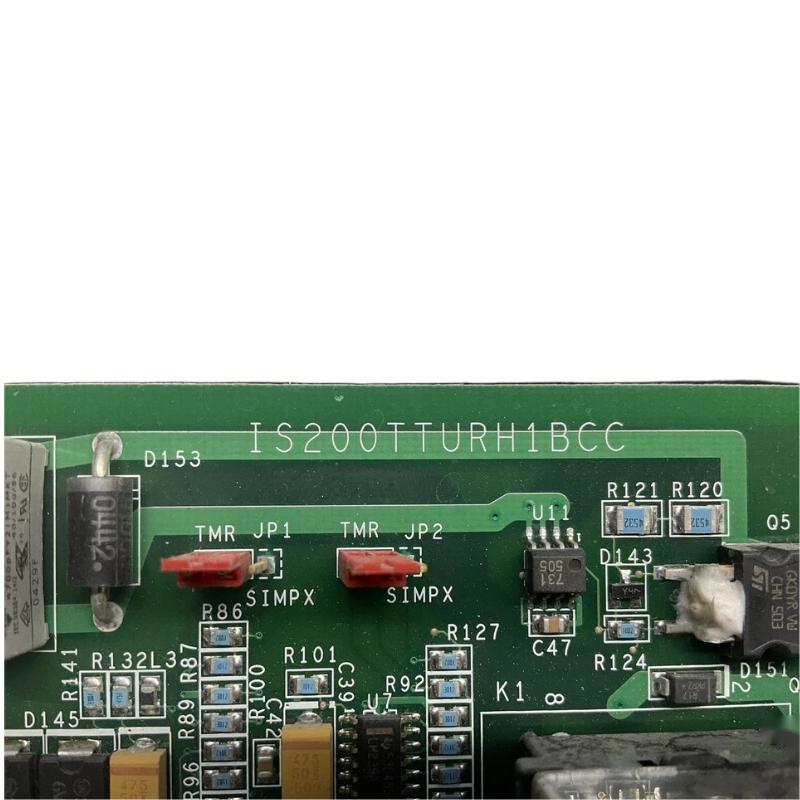

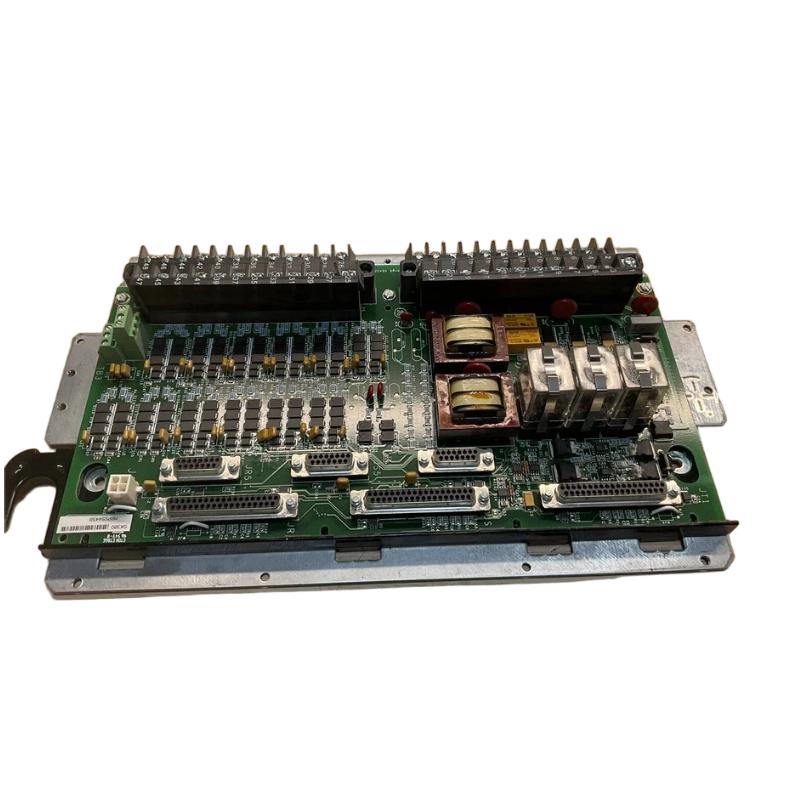

The GE IS200TTURH1BCC is a turbine control terminal board designed for the GE Mark VI control system. It serves as an interface for turbine control signals, enabling precise communication between the controller and turbine field devices. This board ensures reliable operation in high-demand industrial and turbine automation environments.
General Information
Brand: GE (General Electric)
Country of Origin: United States
Part Number: IS200TTURH1BCC
Series: Mark VI Control System
Type: Turbine Control Terminal Board
Function: Turbine signal interface and routing
Mounting: Rack or chassis-mounted within the control cabinet
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: From control backplane
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power and signal status
Communication & Interface
Interface Type: Turbine control signal interface
Signal Type: Analog and discrete control signals
Connection: Ribbon cable or backplane connector to controller modules
Function: Routes and conditions turbine control signals between the controller and field devices
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Industrial control cabinet
Dimensions & Weight
Dimensions: 330 × 178 mm
Weight: Approx. 1.1 kg
