Overview

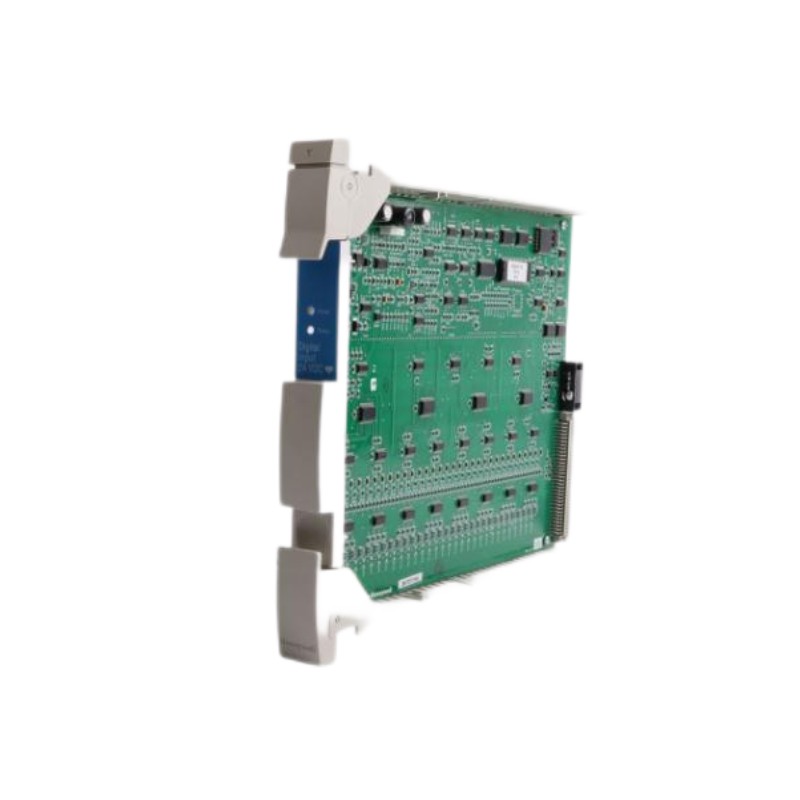

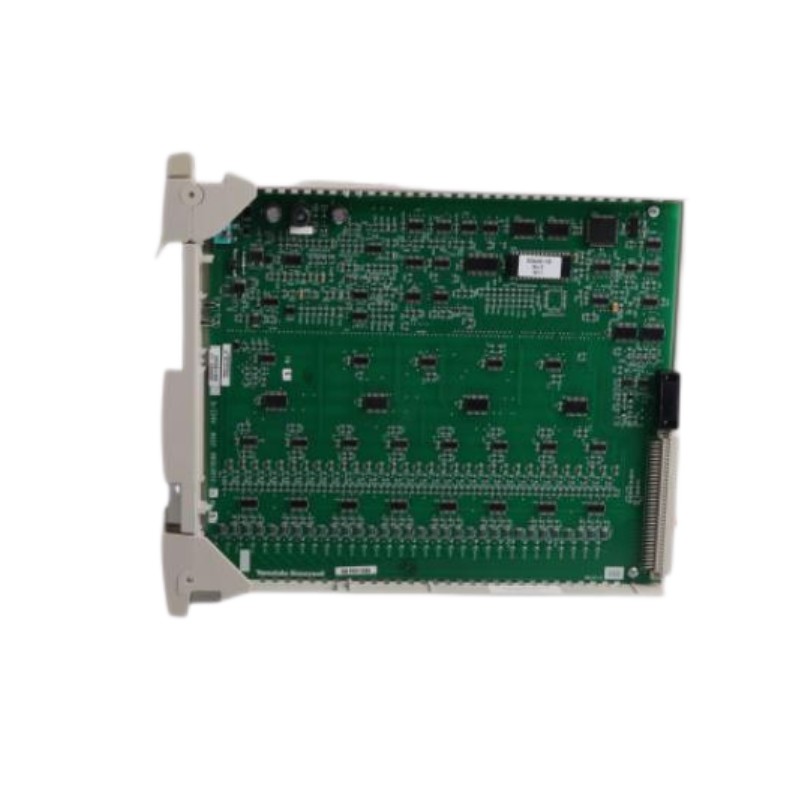

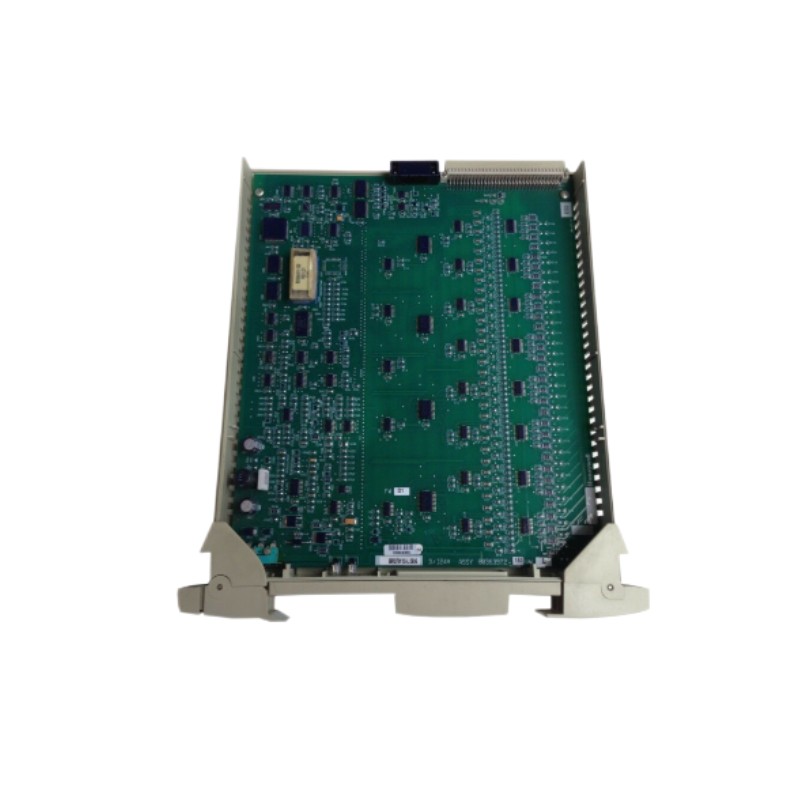

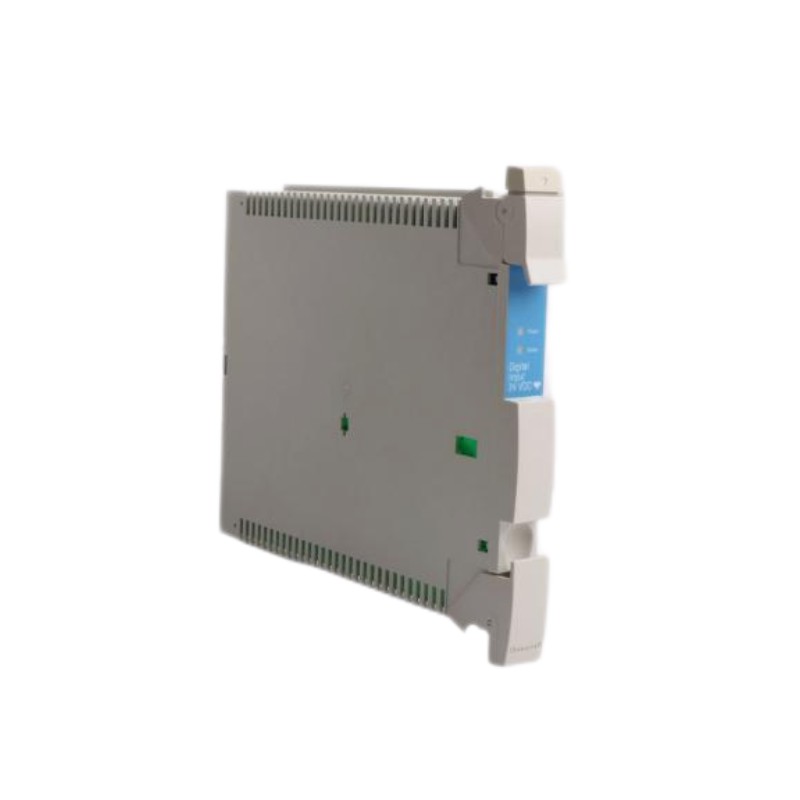

The Honeywell MC-PDIY22 is a digital output module designed for industrial automation and safety control systems. It converts digital control signals from the system into discrete output signals for actuators, relays, and other field devices, ensuring reliable and precise operation in demanding industrial environments.
General Information
Brand: Honeywell
Country of Origin: United States
Model Number: MC-PDIY22 / 80363972-150
Product Type: Digital Output Module
Application: Industrial process control, automation, and field device actuation
Power Specifications
Supply Voltage: 5 V DC (from system backplane)
Current Consumption: Approx. 250–300 mA
Protection: Over-voltage, reverse-polarity, and short-circuit protection
Communication & Interface
Output Channels: 22 digital output channels
Output Signal Type: Relay or transistor outputs (configurable)
Interface: Connected via system backplane for integration with Honeywell DCS
Diagnostics: Channel status monitoring, fault detection, and diagnostic LEDs
Environmental
Operating Temperature: -40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation: Rack or panel mounted within industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): Approx. 320 × 107 × 130 mm
Weight: Approx. 0.60 kg
