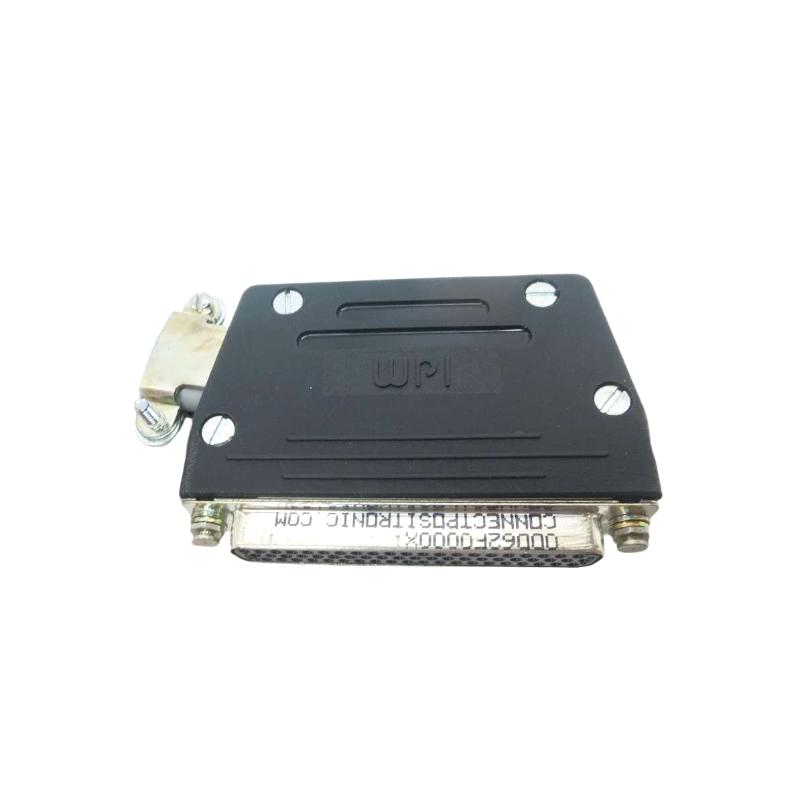

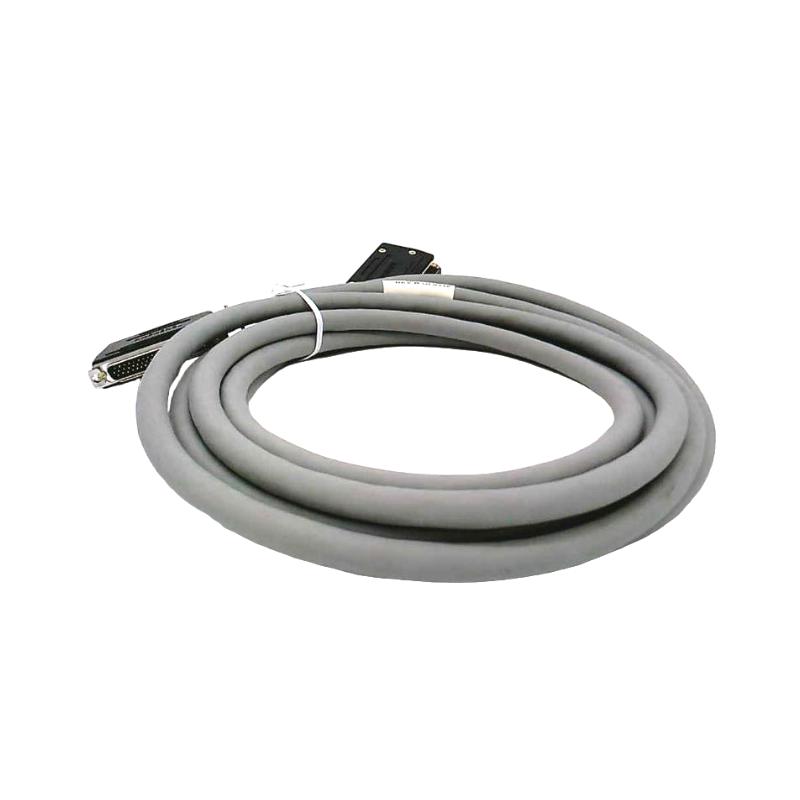

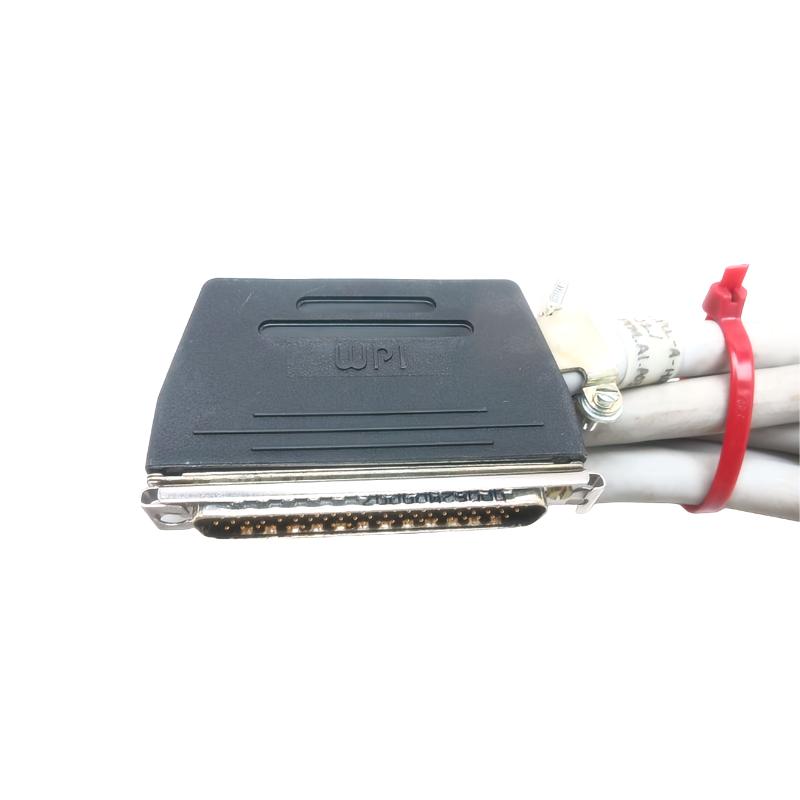

Woodward 5417-175 High-Density Cable Assembly

Overview

The Woodward 5417-175 is a high-density analog/discrete cable assembly designed for the MicroNet Plus control system. At 12 feet (≈3.7 meters) long, it supports compact and reliable transmission of mixed analog and discrete signals in demanding industrial environments such as turbine control and process automation.

General Information

• Part Number: 5417-175

• Manufacturer: Woodward

• Series: MicroNet Plus Control System

• Type: High-Density Cable Assembly (Analog/Discrete)

• Purpose: Internal signal trunking within MicroNet control cabinets

• Length: 12 ft (3.7 m)

Construction & Features

• Low-density design with no exposed braid—minimizes space and interference

• Shielded for EMI/RFI reduction

• Rugged construction suitable for long-term industrial use

Performance

• Designed to carry both continuous analog signals and discrete (on/off) data

• Ideal for compact cabinet layouts and high I/O density solutions

• Maintains signal integrity across length due to robust shielding and design

Environmental

• Operating Temperature: –40 °C to +85 °C

• Durability: Built for use in harsh environments typical of industrial control systems

Physical Specifications

• Length: 12 ft (3.7 m)

• Weight: Approximately 0.5 kg

Applications

• Connecting MicroNet Plus control modules in generator and turbine applications

• Routing mixed analog/discrete signals within tight cabinet enclosures

• Used in distributed automation systems, process control, and prime mover control setups
