Woodward 5417-038 Low-Density Analog Cable Assembly Original

Overview

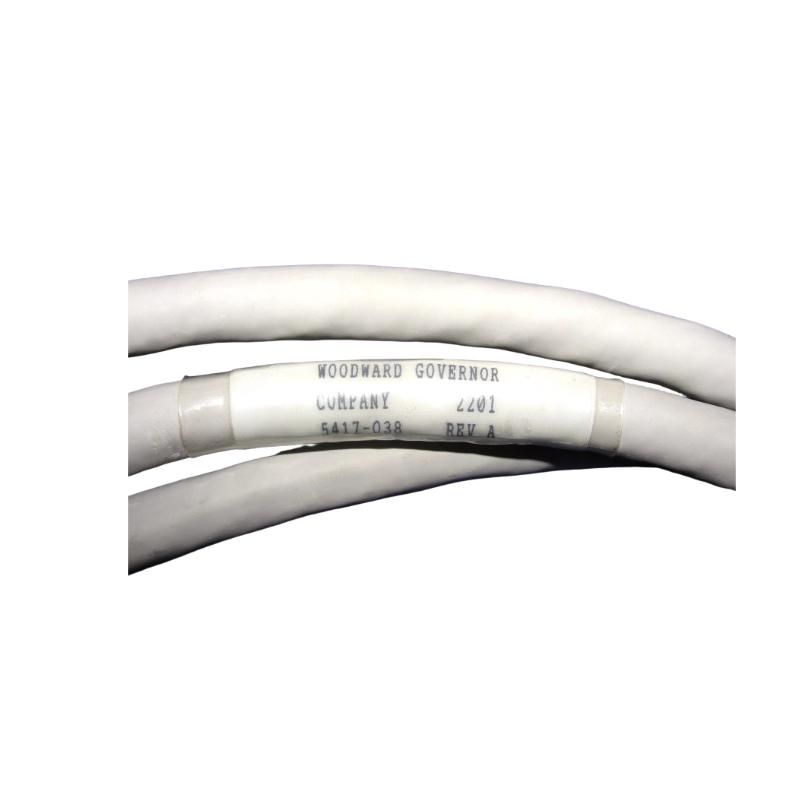

The Woodward 5417-038 is a MicroNet low-density analog cable designed for use within Woodward MicroNet turbine and engine control systems. Its 6-foot length and shielded low-density design ensure accurate and interference-free transmission of analog signals in demanding industrial environments.

General Information

• Part Number: 5417-038

• Manufacturer: Woodward

• Series: MicroNet Control System

• Type: Low-Density Analog Cable Assembly

• Mounting/Use: Internal control cabinet wiring

• Technology: Shielded analog signal cable

Specifications

• Length: 6 ft (1.8 m)

• Color: Gray

• Density: Low-density (LD) analog cable

• Shielding: Designed without exposed braid for reduced interference risk

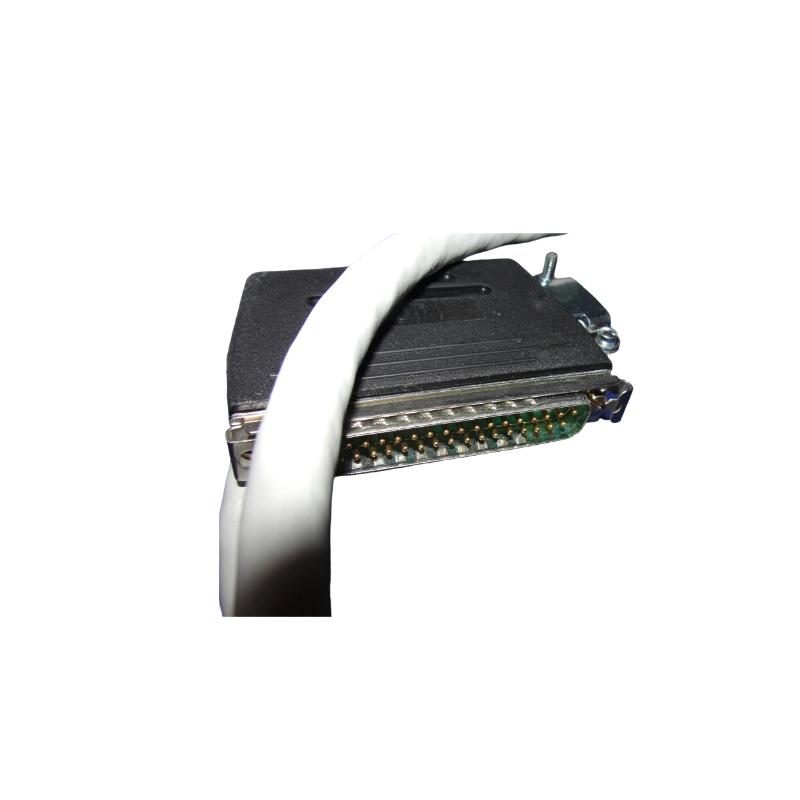

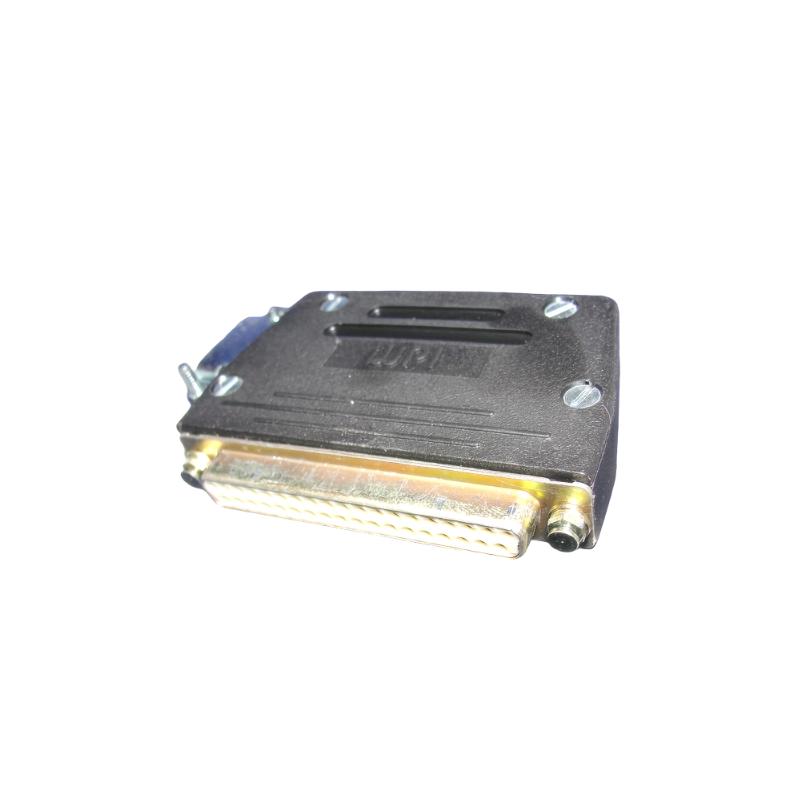

• Connector Type: Factory-terminated for MicroNet analog I/O modules

Performance

• Signal Type Supported: Analog (voltage/current)

• Noise Immunity: Shielding minimizes EMI/RFI interference

• Durability: Designed for long service life in harsh control environments

Environmental

• Operating Temperature: –40 °C to +85 °C

• Application Environment: Industrial control cabinets, turbine and generator systems

Dimensions & Weight

• Length: 6 ft (1.8 m)

• Weight: ~0.25–0.3 kg

Applications

• Connection of analog I/O modules in Woodward MicroNet systems

• Reliable analog data transmission in turbine and engine controls

• Power generation and process automation applications requiring high-integrity cabling
